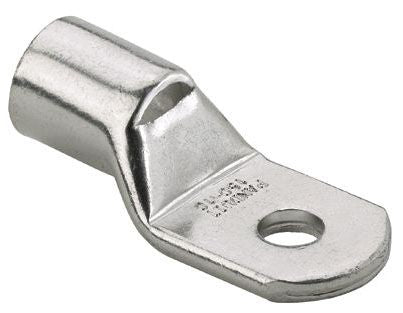

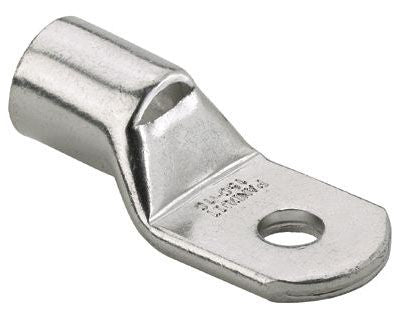

Panduit LCMA35-12-C Lug Connector

Product Description

The PANDUIT LCMA35-12-C is a mechanical lug connector used to terminate electrical conductors at equipment termination points. Lug connectors of this type create a secure, low-resistance mechanical connection between a conductor and a terminal block, bus bar, or equipment stud. Licensed electricians and electrical contractors install these connectors in panel boards, switchgear, motor control centers, and other power distribution equipment. The LCMA35-12-C is designed for reliable performance in demanding electrical installations where a solid mechanical termination is required.

This lug connector is suited for commercial and industrial electrical applications where conductors must be securely landed at equipment terminals. It is appropriate for use in new construction and retrofit installations across a range of power distribution and motor control applications. Electricians working on service entrance equipment, panelboards, and switchgear will encounter this connector type in standard field termination work.

Key Features

• Mechanical lug design provides a secure, tool-tightened conductor termination
• Suitable for use in panelboards, switchgear, and motor control center applications
• PANDUIT construction for consistent dimensional and electrical performance
• Compatible with standard electrical termination hardware and equipment studs

Compatibility

Designed as an OEM-style mechanical lug connector for use in commercial and industrial electrical termination applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before installing or removing any lug connector. Use the appropriate torque wrench to tighten the mechanical lug fastener to the torque value specified on the equipment nameplate or in the manufacturer installation instructions. Inspect the conductor and lug seating before restoring power.

Technical Specifications

• UPC: 07498376942

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCMA35-12-C
