Panduit LCMA35-10-C Pan-Lug Compression Connector Lug, 35 sq-mm, M10 Stud

Product Description

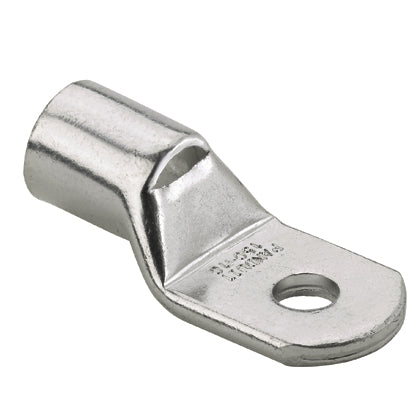

The Panduit LCMA35-10-C Pan-Lug Compression Connector Lug provides permanent terminations for power and grounding applications. Designed for rigid or stranded copper conductors, it accommodates a 35 sq-mm conductor size and features a 0.43 inch stud. The lug is tin-plated to inhibit corrosion and has an inspection window for full conductor insertion.

• Features an inspection window to visually assure full conductor insertion
• Tin-plated to inhibit corrosion
• Product information marked on connector for selection and installation

Product Highlights

This metric lug is made from high conductivity copper tubing and is suitable for applications up to 35kV with a temperature rating of 90 deg C.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCMA35-10-C
• Country of Origin: ARG

Technical Specifications

• Application: For use to provide permanent terminations for a variety of power and grounding applications
• Conductor Size: 35 sq-mm
• Conductor Type: Rigid/Stranded Copper
• Die Code: P29
• Manufacturer Part Number: LCMA35-10-C
• Material: Tin Plated Copper
• Mounting Hole Size: 11 mm
• Overall Length: 42 mm
• Series: LCMA
• Standards/Approvals: ABS Certified|ARRA Compliant|Buy American Act Compliant|CE Marked|CSA C22.2 File No. 65/03|IEC/EN 61238-1:2003 Class B with Class 2r Wire|RoHS Compliant|UL 486A/486B File No. E52164|UL Listed
• Stud Size: 0.43 in
• Temperature Rating: 90 deg C
• Tongue Size: 15.5 mm W x 2.1 mm THK
• Tongue Type: Round/Straight
• Type: 1-Hole Metric
• Voltage Rating: 35 kV
• Barrel Size: 8.2 mm ID x 10.4 mm OD x 17.5 mm L
• Angle: Straight
• Barrel Type: Standard Barrel Length with Inspection Window
• Family group: CONNECTORS
• Manufacturer: PANDUIT
• Number Of Holes: 1
• Special Features: Consult cable manufacturer for voltage stress relief instructions with applicati
