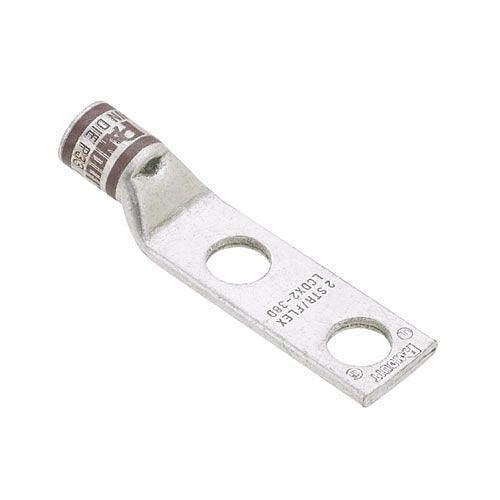

Panduit LCDX500-38D-6 Copper Compression Lug 2 Hole

Product Description

The PANDUIT LCDX500-38D-6 is a two-hole copper compression lug designed for making secure, low-resistance electrical terminations on copper conductors. Compression lugs of this type are crimped onto the conductor end using a compatible compression tool, creating a gas-tight mechanical and electrical bond. This lug is used in power distribution, panel terminations, and heavy feeder work where a reliable, permanent connection is required. Licensed electricians and electrical contractors typically install these lugs in commercial and industrial wiring applications governed by NEC requirements.

This two-hole lug is suited for high-current termination points where dual mounting holes provide added mechanical stability and improved contact surface area at the termination point. It is commonly installed on bus bars, switchgear terminals, transformer lugs, and large panel board connections. The two-hole configuration distributes clamping force across two fastener points, reducing the risk of loosening under vibration or thermal cycling.

Key Features

• Two-hole barrel design for improved mechanical stability at termination points
• Copper construction provides excellent electrical conductivity and corrosion resistance
• Compression-style installation creates a gas-tight, permanent bond on copper conductors
• Compatible with standard hydraulic or mechanical compression tooling
• Sold individually, allowing single-unit replacement or installation

Compatibility

Designed as an OEM-style compression termination lug for use in commercial and industrial electrical installations requiring two-hole copper lug terminations on copper feeder conductors.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC guidelines for conductor terminations. De-energize and lock out the circuit before beginning any termination work. Use only a properly calibrated compression tool rated for the lug and conductor size to ensure a complete, gas-tight crimp. Do not over-crimp or use mismatched die sets, as this can damage the lug barrel or compromise the electrical connection.
