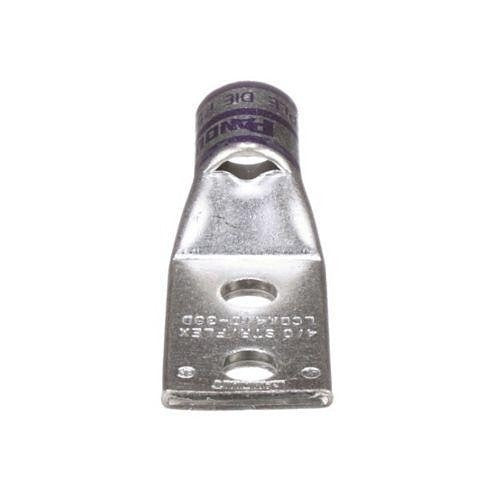

Panduit LCDX4/0-38D-X Copper Compression Lug 2 Hole

Product Description

The PANDUIT LCDX4/0-38D-X is a two-hole copper compression lug designed for securing large-gauge conductors to bus bars, panels, and equipment terminals. Copper compression lugs of this type provide a gas-tight mechanical connection when properly crimped, reducing resistance at the termination point and preventing oxidation over time. This lug is rated for 4/0 AWG conductors based on its part number designation and is intended for installation by licensed electricians in commercial, industrial, and utility electrical work.

Two-hole copper compression lugs are used where a secure, vibration-resistant termination is required at switchgear, motor control centers, transformers, bus bars, and main distribution panels. The two-bolt mounting pattern distributes mechanical load across the termination surface, which is standard practice in higher-ampacity installations. This part is sold individually as a single unit.

Key Features

• Two-hole mounting configuration for stable, vibration-resistant termination
• Copper construction provides high conductivity and corrosion resistance
• Compression-style installation creates a reliable gas-tight connection
• Sized for 4/0 AWG conductor per part number designation
• Suitable for use in switchgear, panels, and distribution equipment

Compatibility

Designed as an OEM-style compression termination lug for use with 4/0 AWG copper conductors in commercial and industrial electrical distribution applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for conductor terminations and torque specifications provided by the equipment manufacturer. De-energize and lock out the circuit before beginning any termination work. Use a calibrated compression tool rated for the lug die set specified by PANDUIT for this series to achieve a proper crimp. Do not use open-barrel crimp tools or hammer-style dies not approved for compression lugs.
