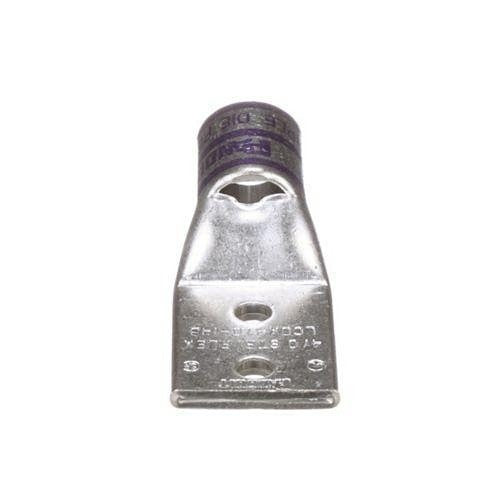

Panduit LCDX4/0-14B-X Copper Compression Lug 2 Hole

Product Description

The PANDUIT LCDX4/0-14B-X is a two-hole copper compression lug designed for terminating large-gauge electrical conductors at bus bars, switchgear, panels, and other bolted connection points. Copper construction provides reliable conductivity and corrosion resistance in demanding electrical installations. The two-hole mounting configuration distributes mechanical stress across the connection point and resists rotation under vibration, making it well suited for high-current termination work. Licensed electricians and electrical contractors are the primary installers of this type of termination lug.

This compression lug is used in commercial and industrial electrical installations where secure, low-resistance terminations are required at panels, switchboards, motor control centers, and similar equipment. The 4/0 conductor size rating positions this lug for heavy-duty feeder and service entrance applications where large copper conductors must be reliably landed. It is sold individually as a single unit.

Key Features

• Two-hole barrel design reduces rotation and distributes clamping load at the mounting surface
• Copper construction for high conductivity and long-term corrosion resistance
• Compression-style termination creates a gas-tight connection when installed with the correct die
• Rated for 4/0 AWG conductor termination
• Sold as a single unit for exact-quantity purchasing

Compatibility

Designed as an OEM-style compression termination lug for use with 4/0 AWG copper conductors in commercial and industrial electrical distribution applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before beginning any termination work. Use the correct PANDUIT compression die specified for this lug to achieve a proper gas-tight crimp. Torque mounting hardware to the fastener and equipment manufacturer specifications found in the relevant equipment documentation.
