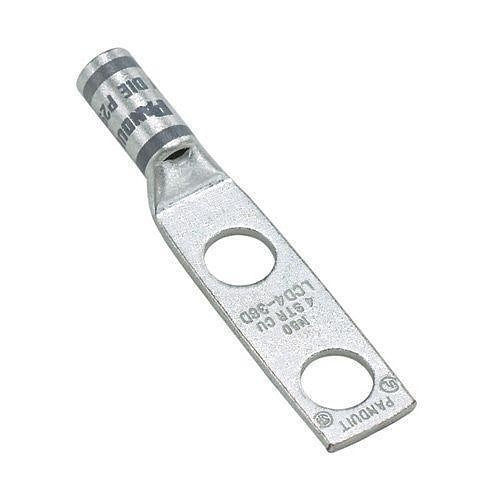

Panduit LCD4/0-38D-X Copper Compression Lug 2 Hole

Product Description

The PANDUIT LCD4/0-38D-X is a copper compression lug designed for making secure, low-resistance terminations on large-gauge electrical conductors. This two-hole lug uses a compression-style installation to create a gas-tight connection between the conductor and the mounting surface. It is used in power distribution panels, switchgear, bus connections, and other high-current electrical assemblies. Licensed electricians and electrical contractors are the primary installers of this type of lug. The copper construction provides excellent conductivity and corrosion resistance, making it suitable for demanding electrical service applications.

This lug is suited for use in both commercial and industrial electrical installations where 4/0 AWG conductors require a reliable, code-compliant termination point. The two-hole mounting pattern distributes mechanical stress across the connection and helps prevent rotation or movement of the lug after installation. It is commonly installed on bus bars, transformer terminals, and large panelboard lugs where secure conductor termination is required.

Key Features

• Copper construction for high conductivity and corrosion resistance
• Compression-style installation creates a gas-tight, mechanically secure connection
• Two-hole mounting pattern prevents lug rotation and distributes load
• Designed for 4/0 AWG conductor terminations
• Sold individually (each)

Compatibility

Designed as an OEM-style compression termination lug for 4/0 AWG conductors used in commercial and industrial power distribution applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before beginning any termination work. A calibrated compression tool rated for the lug size and conductor gauge is required to achieve a proper gas-tight crimp. Do not use open-barrel or mechanical connectors as a substitute for the specified compression tool.
