Panduit LCD2/0-14AF-X Comp. Lug, 2/0, Tin Plt Copper, Two 0.25 Stud, PK10

Product Description

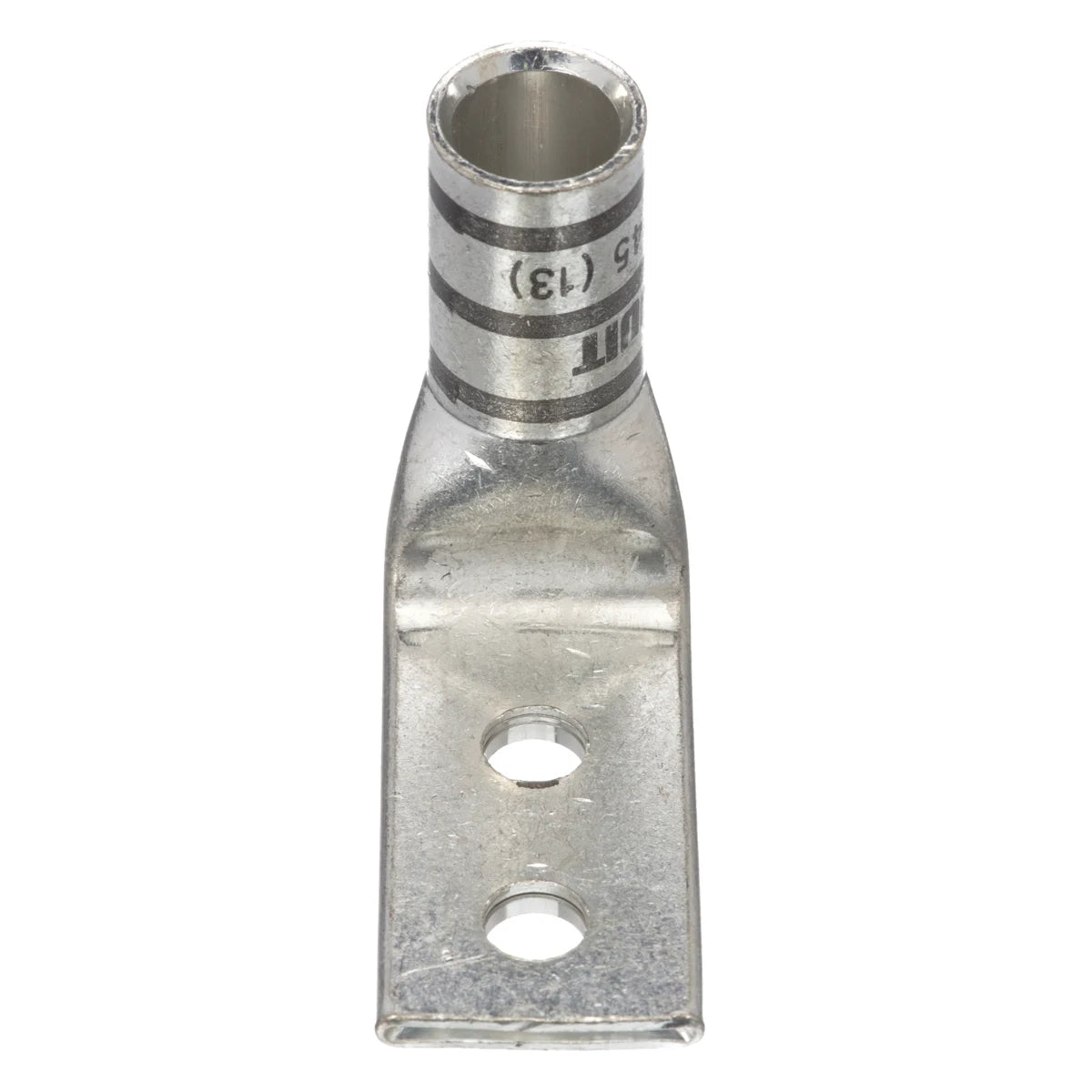

Panduit LCD2/0-14AF-X is a two-hole, standard barrel lug designed for 2/0 AWG wire applications. This compression lug features a .63 inches hole spacing and a 90-degree angle tongue, making it suitable for various wiring needs.

• Two holes for secure connections
• Constructed from tin-plated copper for improved conductivity
• Ideal for applications requiring 1/4 inches stud hole

Product Highlights

The Panduit LCD2/0-14AF-X is built for reliability in electrical installations. Its design ensures strong connections and efficiency in power distribution.

Product Information

Standard Information

• Catalog Number: LCD2/0-14AF-X
• Manufacturer: Panduit

Technical Specifications

• Material: Tin-Plated Copper
• Number of Holes: 2
• Stud Size: 1/4 IN
• Size: 2/0 AWG Code
• Country of Origin: Mexico
• Standard: CSA certified C22.2 No. 65-13, UL listed 486A-486B
• Special Features: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
