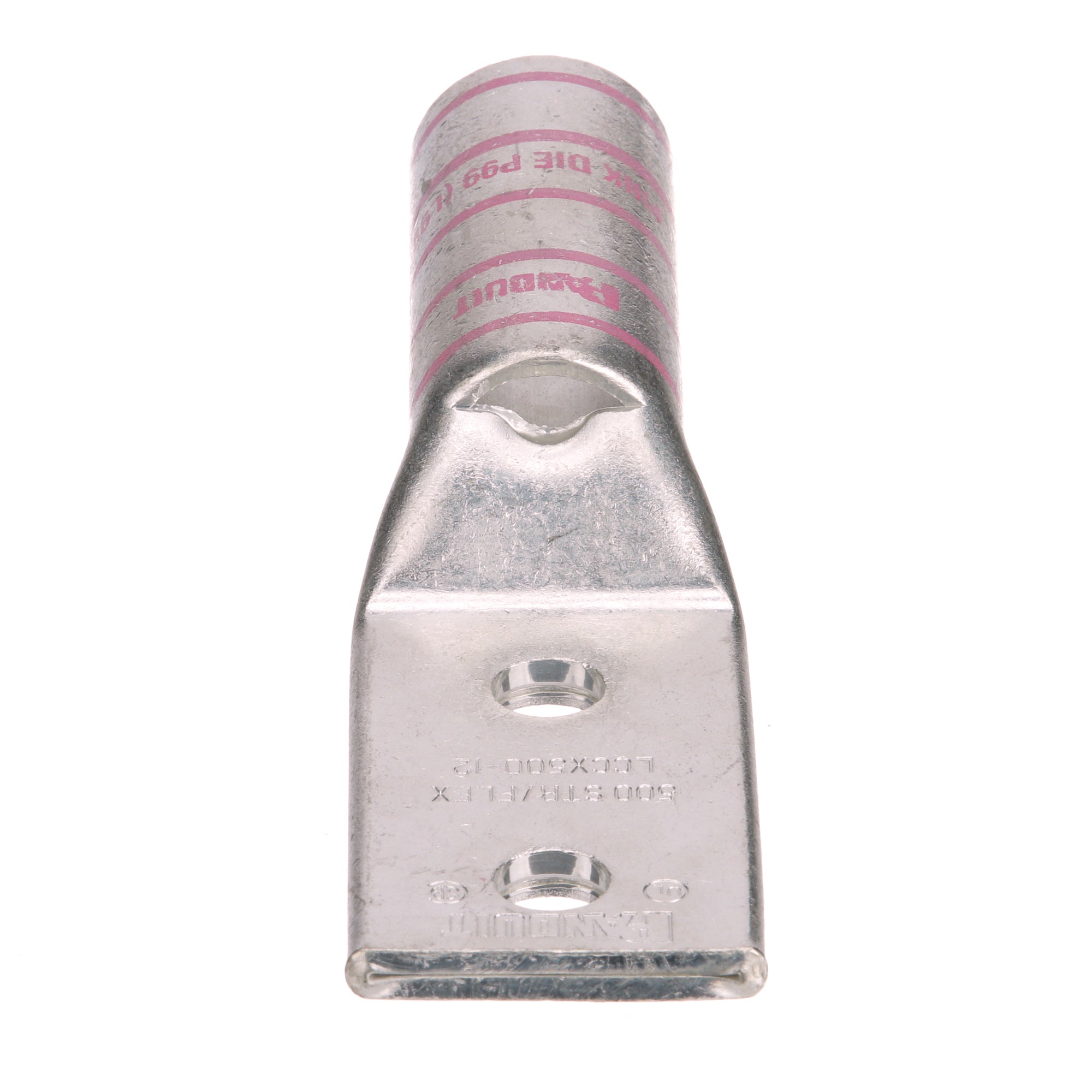

Panduit LCCX500-12-6 Copper Compression Lug 500 kcmil 2-Hole

Product Description

Panduit LCCX500-12-6 is a copper compression lug designed for electrical connections. This compression lug accommodates conductors sized 500 kcmil and features a two-hole configuration for reliable mounting. The long barrel maximizes crimping capability and improves electrical performance. The design includes color-coded barrels marked with Panduit and specified competitor die index numbers for accurate crimp die selection. The generously beveled wire entry reduces the risk of bent strands when inserting the conductor.

• Two-hole design for secure connections.
• Inspection window to confirm full conductor insertion.
• Tin-plated copper to resist corrosion.

Product Highlights

This compression lug is suitable for use with various conductor classes and is UL Listed and CSA Certified. It is rated for voltage up to 35 kV and temperature ratings of ninety degrees Celsius.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCCX500-12-6

Technical Specifications

• Type: Compression Lug
• Material: Tin-Plated Copper
• Size: 500 kcmil
• Holes: 2
• Stud Size: 1/2 inch
• Barrel Style: Long
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 35 kV
• Inspection Window: Yes
