Panduit LCCX2-12-E CuLugFLB 2Hole #2AWG 1/2 1.75PKG20

Product Description

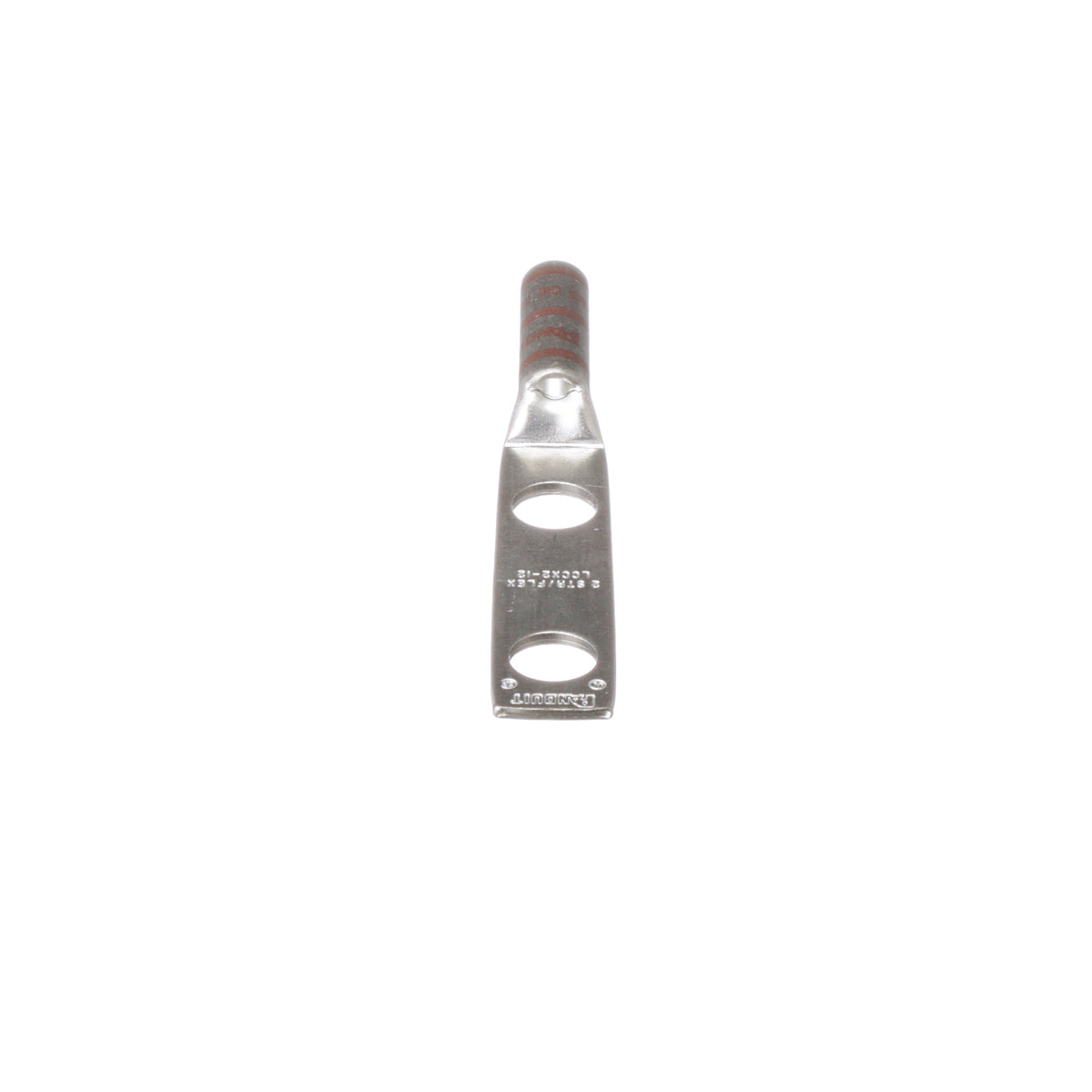

Panduit presents the LCCX2-12-E, which is a two-hole, flex lug designed for #2 AWG wire. This product features a long barrel for superior crimping capabilities and wire pull-out strength. It is suitable for various conductor classes, including flexible and stranded copper conductors. The lug has a stud hole size of one-half inch with a spacing of one point seventy-five inches.

• Long barrel design for enhanced crimping strength.
• Generously beveled wire entry to avoid bent strands.
• Inspection window for verifying conductor insertion.

Product Highlights

This flex lug is tin-plated to resist corrosion and meets industry standards. It is UL Listed and CSA Certified, ensuring reliability for electrical applications within 35 kV and at temperatures up to ninety degrees Celsius.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCCX2-12-E

Technical Specifications

• Barrel Type: Long
• Bolt Hole Size: 1/2 Inch
• Gauge: #2 AWG
• Number of Holes: 2
• Material: Copper
• Type: Flex Compression
• Inspection Hole: Yes
• Temperature Rating: 90C
