Panduit LCCX2/0-12-X Pan-Lug Compression Connectors - Lugs

Product Description

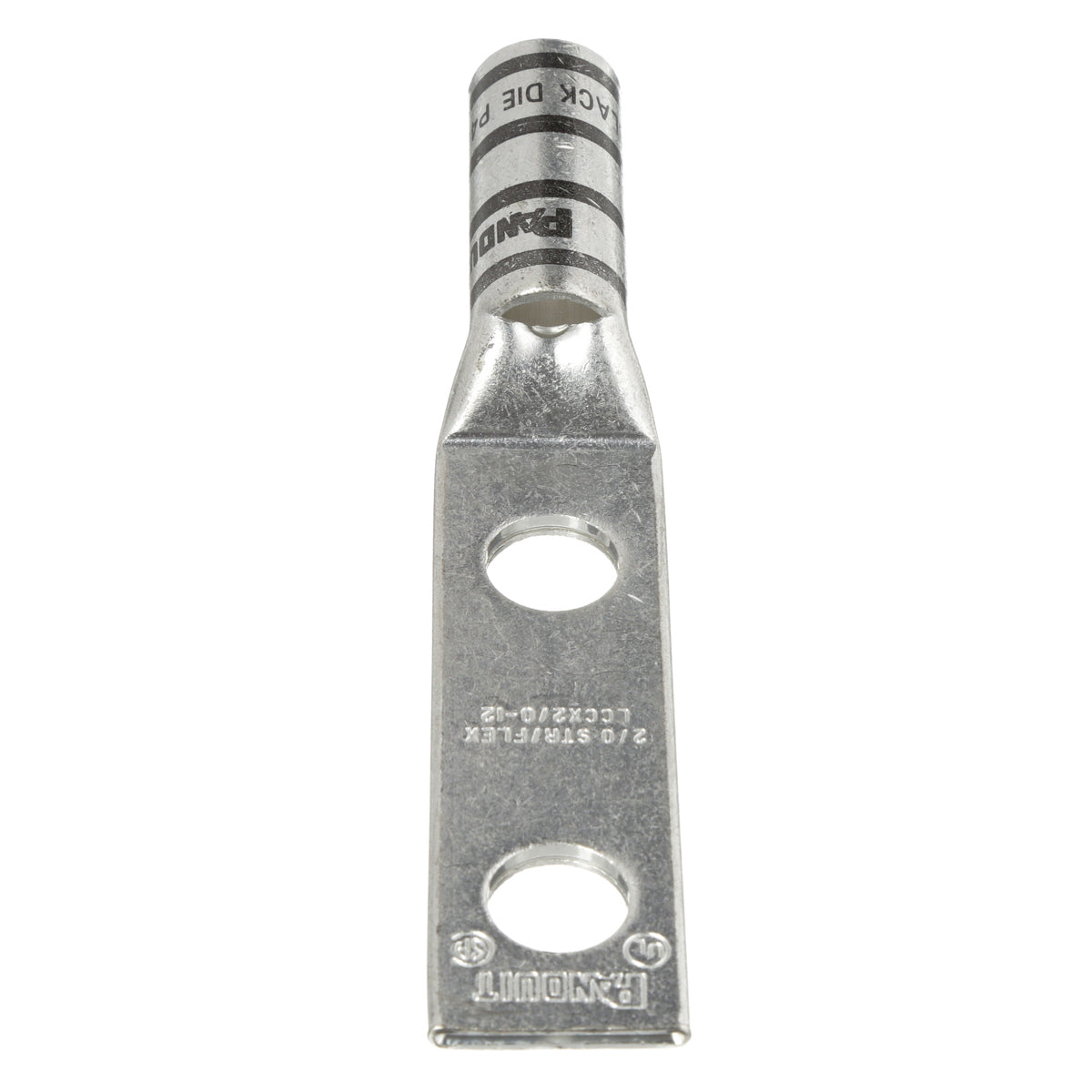

Panduit LCCX2/0-12-X is a two-hole, long barrel compression connector designed for use with 2/0 AWG wire. This connector features a 1/2 inch stud hole and hole spacing of 1.75 inches. It is suitable for flexible and stranded copper conductors.

• Two-hole design for secure connections
• Long barrel for enhanced crimping capabilities
• Tin-plated copper construction to prevent corrosion

Product Highlights

This product is ideal for tradespeople who require reliable connections in electrical applications. The long barrel design maximizes the number of crimps and improves wire pull-out strength.

Product Information

Standard Information

• Brand: Panduit
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: LCCX2/0-12-X
• Material: Tin-Plated Copper
• Wire Gauge Size: 2/0 AWG
• Stud Size: 1/2 inch
• Number of Holes: 2
• Overall Length: 4.87 inches
• Voltage Rating: 35 kV
• Temperature Rating: 90 degrees Celsius
