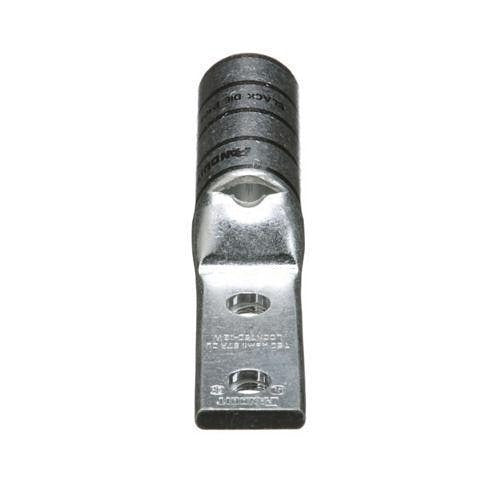

Panduit LCCN500-12W-6 Copper Compression Lug 2 Hole

Product Description

The PANDUIT LCCN500-12W-6 is a two-hole copper compression lug designed for terminating large-gauge copper conductors in electrical distribution and power wiring applications. Built from copper, this compression-style lug creates a secure, low-resistance mechanical and electrical connection when properly crimped onto the conductor. It is rated for 500 MCM wire, making it suited for heavy-duty power circuits found in commercial and industrial installations. Electricians and electrical contractors install this type of lug when terminating large feeders at switchgear, panelboards, bus bars, and similar equipment.

This lug is used in residential service entrance work, commercial power distribution, and industrial feeder terminations wherever 500 MCM copper conductors require a reliable bolted connection. The two-hole barrel design provides a more secure mechanical attachment to the equipment lug pad compared to a single-hole configuration, distributing clamping force across two fastener points and reducing the risk of rotation or movement at the termination point.

Key Features

• Copper construction for high conductivity and corrosion resistance in electrical terminations
• Compression-style installation ensures a gas-tight, low-resistance conductor connection
• Two-hole mounting pad increases mechanical stability at the termination point
• Rated for 500 MCM conductor size for heavy-duty feeder and service applications
• Sold individually, allowing purchase of exact quantities needed for the job

Compatibility

Designed as an OEM-style compression termination lug for use with 500 MCM copper conductors in standard electrical distribution equipment requiring a two-hole lug pad connection.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before beginning any termination work. Use a calibrated hydraulic or mechanical compression tool specified for the lug size to achieve a proper crimp. Do not use open-flame or non-compression methods to seat the conductor into the lug barrel.
