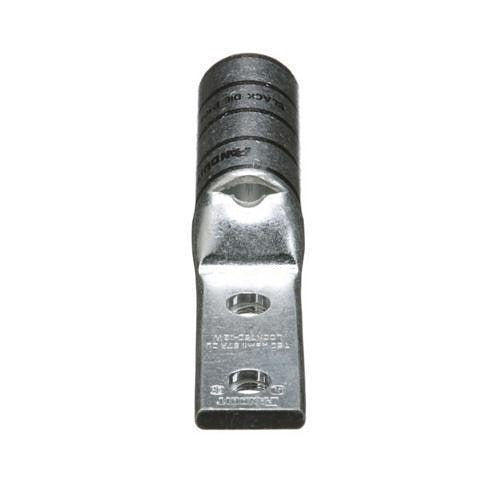

Panduit LCCN3/0-12W-X Copper Compression Lug 2 Hole

Product Description

The PANDUIT LCCN3/0-12W-X is a two-hole copper compression lug designed for terminating 3/0 AWG conductors in electrical distribution and power connection applications. Compression-style lugs create a cold-weld bond between the conductor and the lug barrel, producing a low-resistance, gas-tight connection that resists loosening over time. This lug is installed by licensed electricians and electrical contractors working on service entrances, switchgear, panel feeders, and industrial power distribution systems where reliable, code-compliant terminations are required.

This two-hole lug is suited for use in residential service entrance work, commercial electrical panels, and industrial equipment terminations where 3/0 AWG copper conductors are landed. The dual-hole mounting pattern provides a secure, mechanically stable connection to bus bars, terminal blocks, and equipment lugs. It is appropriate for both new construction and retrofit service work where a durable copper compression termination is specified.

Key Features

• Two-hole mounting configuration for stable, secure bus bar or terminal connections
• Compression-style installation creates a gas-tight, low-resistance conductor bond
• Rated for 3/0 AWG copper conductors
• Copper construction provides excellent conductivity and corrosion resistance
• Sold individually for precise quantity ordering on service and panel work

Compatibility

Designed as an OEM-style compression termination lug for use with 3/0 AWG copper conductors in standard electrical distribution and panel termination applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for conductor terminations. De-energize and lock out the circuit before beginning any termination work. Use a calibrated compression tool sized for the lug barrel and conductor gauge to achieve a proper cold-weld crimp. Do not use open-barrel or mechanical screw-type tools as substitutes for the correct compression die set.
