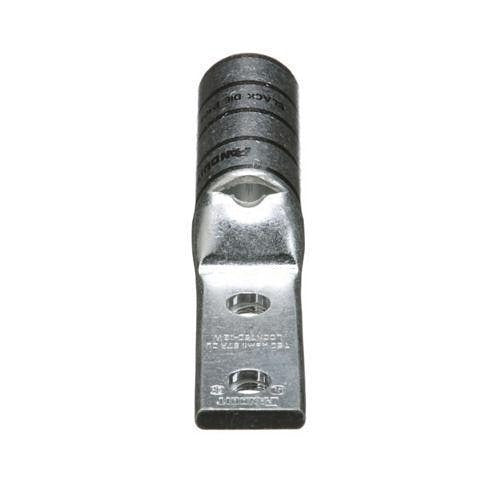

Panduit LCCN1000-12W-3 Copper Compression Lug 2 Hole

Product Description

The PANDUIT LCCN1000-12W-3 is a two-hole copper compression lug designed for terminating large-gauge conductors in high-ampacity electrical installations. Built from copper, this lug provides a reliable, low-resistance mechanical and electrical connection at the conductor end. The two-hole bolt pattern distributes clamping force evenly across the mounting surface, reducing the risk of loosening under thermal cycling. It is used primarily in commercial and industrial electrical work where 1000 MCM conductors require secure, code-compliant termination at switchgear, bus bars, or distribution equipment.

This lug is suited for high-capacity power distribution applications including service entrance equipment, main distribution panels, motor control centers, and industrial switchgear. Installations at this conductor size are typically performed by licensed journeyman or master electricians working under NEC guidelines. The two-hole configuration is standard on large-frame equipment terminals and bus bar assemblies where a single-hole lug would not provide adequate mechanical stability at the connection point.

Key Features

• Copper construction for excellent conductivity and corrosion resistance at termination points
• Two-hole mounting pattern for increased mechanical stability and even load distribution
• Rated for 1000 MCM conductor size to handle high-ampacity circuits
• Compression-style termination ensures a gas-tight, low-resistance connection
• Sold individually, allowing single-unit replacement or small-quantity procurement

Compatibility

Designed as an OEM-style compression termination lug for 1000 MCM copper conductors used in commercial and industrial power distribution equipment requiring a two-hole lug configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 110 and applicable local codes. De-energize and lock out the circuit per LOTO procedures before making any termination connections. Use a calibrated compression tool specified for the lug and conductor size to achieve a proper crimp. Do not over-compress or re-crimp a lug that has already been fully seated.
