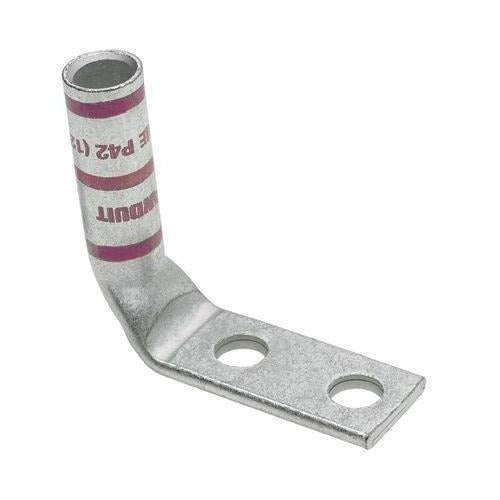

Panduit LCC6-14BWF-L Pan-Lug 2-Hole Compression Lug (6 AWG / 2-Hole / 90 Degree)

Product Description

Panduit LCC6-14BWF-L is a non-insulated two-hole compression lug for terminating 6 AWG stranded copper conductors. The tin-plated copper lug features a long barrel for multiple crimps and a rectangular two-hole tongue configured at 90 degrees, and it uses die code P24 for crimping. The connector includes an inspection window to verify full conductor insertion and is rated to 90 C temperature.

• Tin-plated copper construction with electro-tin contact finish for corrosion resistance and electrical conductivity
• Long barrel design maximizes number of crimps and improves wire pullout strength; barrel dimensions 0.22 in ID x 0.31 in OD x 1.07 in L
• Two-hole rectangular tongue (90 degree) with inspection window and Die Code P24 compatibility for visual conductor insertion verification

Product Highlights

Non-insulated two-hole Pan-Lug for 6 AWG stranded copper with long barrel, inspection window, and P24 crimp die compatibility.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCC6-14BWF-L
• Country of Origin: Mexico
