Panduit LCC500-38DW-6 LGLug 500mcm .38in 1in WDW PK6

Product Description

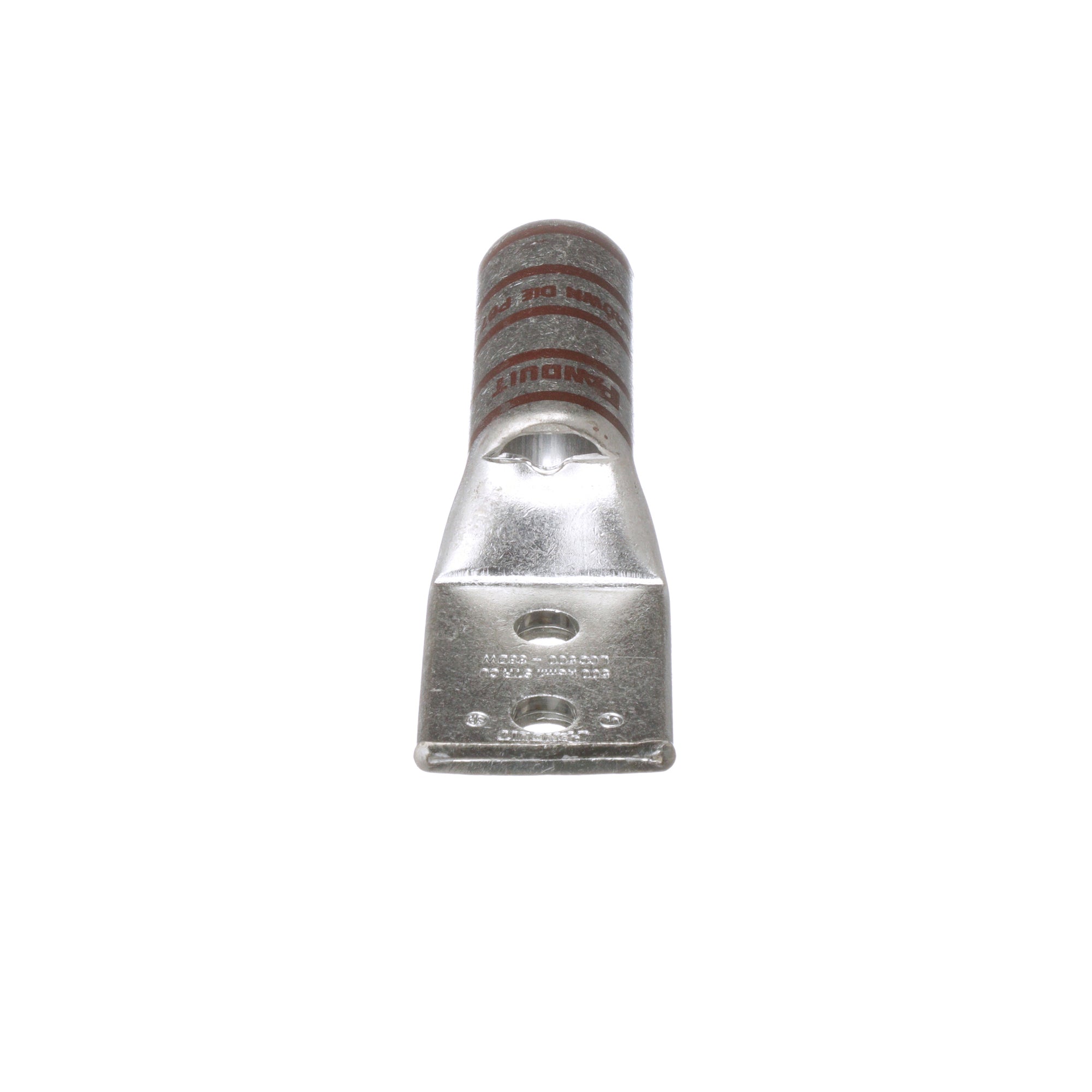

The Panduit LCC500-38DW-6 is a two-hole, long barrel lug designed for connecting 500 kcmil stranded copper conductors. It features a 3/8 inch stud hole and a one inch spacing between holes. This lug is suitable for various electrical applications, ensuring reliable connections.

• Long barrel design maximizes crimping effectiveness.
• Inspection window allows for verification of conductor insertion.
• Tin-plated copper enhances corrosion resistance.

Product Highlights

Designed for high-performance electrical connections, this lug meets stringent UL and CSA standards. Its long barrel design provides superior wire pull-out strength and electrical performance, making it a reliable choice for electricians and contractors.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCC500-38DW-6

Technical Specifications

• Barrel: Long
• Bolt Hole: 3/8 inch
• Gauge: 500 kcmil
• Holes: 2 hole
• Inspection Hole: Yes
• Lug Material: Tin plated copper
• Type: Standard compression
• UPC: 074983798537
