Panduit LCC2-14BWF-Q Conn Term Rect Tong 2 AWG #1/4

Product Description

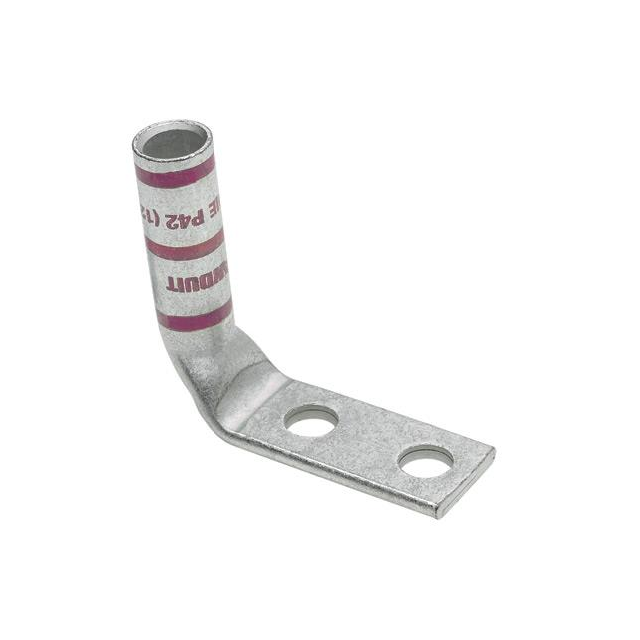

The Panduit LCC2-14BWF-Q is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 2 AWG wire gauge capacity and is engineered for crimp termination with a barrel style. The connector accommodates a 1/4 stud size with a tab thickness of 0.100 inches (2.54mm). Its overall width is 0.600 inches (15.24mm).

• Wire Gauge 2 AWG
• Termination Crimp, Barrel
• Mounting Type Free Hanging (In-Line), Right Angle

Product Highlights

The LCC2-14BWF-Q offers both free hanging (in-line) and right-angle mounting options, providing flexibility in application design. It is supplied in bulk packaging.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCC2-14BWF-Q

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Lugs
• Termination: Crimp, Barrel
• Manufacturer: Panduit Corp
• Wire Gauge: 2 AWG
• Series: Pan-Lug
• Insulation: Non-Insulated
• Packaging: Bulk
• Color: Brown
• Part Status: Obsolete
• Contact Finish: Electro-Tin
• Terminal Type: Rectangular Tongue
• Contact Material: Copper
• Stud/Tab Size: 1/4 Stud
• Diameter - Barrel ID: 0.310" (7.87mm)
• Terminal Style: Two Stud Holes
• Diameter - Barrel OD: 0.420" (10.67mm)
• Tab Thickness: 0.100" (2.54mm)
• Diameter - Ring ID: 0.270" (6.86mm)
• Width - Outer Edges: 0.600" (15.24mm)
• Base Product Number: LCC2
• Mounting Type: Free Hanging (In-Line), Right Angle
• RoHS Status: ROHS3 Compliant
• Product Status: Obsolete
• Component: Compression Lug
