Panduit LCB6-14-L Copper Compression Lug Power 1 Hole 35 kV

Product Description

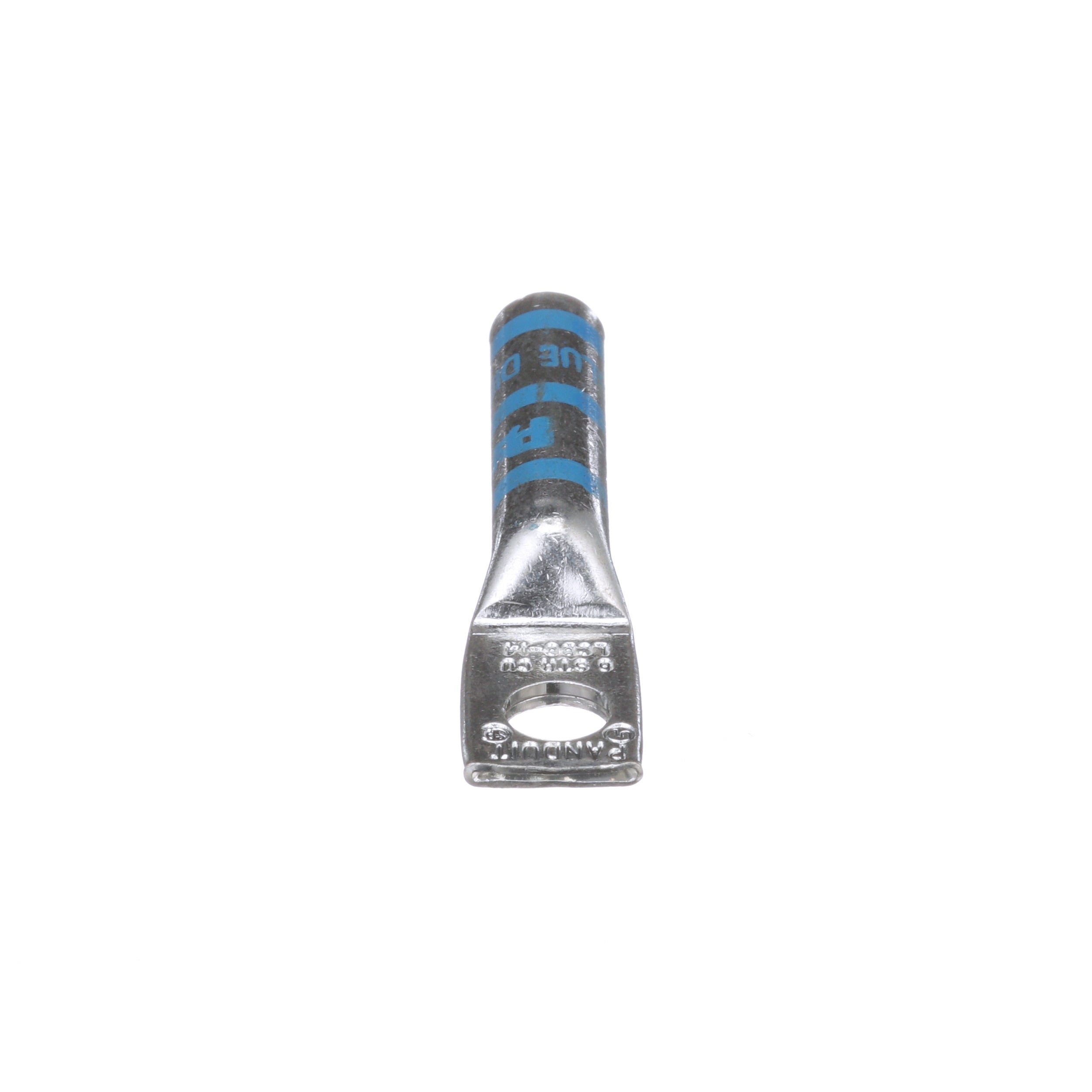

The Panduit LCB6-14-L is a copper compression lug with one hole designed for use with a six AWG conductor. This product features a long barrel that allows for maximum crimps and strong wire pull-out strength. The barrels are color-coded for easy identification based on die index numbers from Panduit and competitors which ensures the correct crimping die is used. The lug is tin-plated to help inhibit corrosion, making it suitable for various installations.

• 1/4 inch stud size
• UL Listed and CSA Certified
• Meets NEBS Level 3 standards

Product Highlights

This compression lug provides reliability and performance in electrical connections, especially in harsh environments, thanks to the enclosed barrel design which prevents corrosive material from entering.

Product Information

Standard Information

• Manufacturer: Panduit
• Model Number: LCB6-14-L

Technical Specifications

• Barrel: Long
• Gauge: 6 AWG
• Holes: 1
• Stud Hole Size: 1/4 inch
• Material: Copper
• Voltage Rating: 35 kV
• Length of Barrel: 1.07 inch
• Overall Length: 1.93 inch
