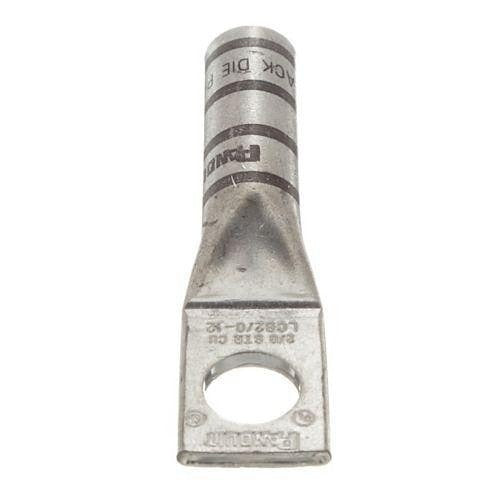

Panduit LCB2/0-12-X Copper Compression Lug 1 Hole

Product Description

The PANDUIT LCB2/0-12-X is a copper compression lug designed for making secure, low-resistance electrical terminations. This single-hole lug accepts compressed conductors and provides a reliable mechanical and electrical connection at the termination point. It is used in power distribution, panelboard wiring, and equipment grounding applications where a permanent, code-compliant crimp termination is required. Licensed electricians and electrical contractors are the primary installers of this type of fitting in both residential and commercial electrical systems.

This compression lug is suited for applications requiring a single-hole mounting configuration. It is typically installed in electrical panels, switchgear, motor control centers, and similar distribution equipment. The 2/0 conductor size designation indicates compatibility with 2/0 AWG copper cable, making it appropriate for higher-ampacity branch circuits and feeder conductors.

Key Features

• Copper construction for excellent conductivity and corrosion resistance
• Single-hole mounting configuration for standard termination points
• Compression-style installation ensures a gas-tight, permanent crimp connection
• Sized for 2/0 AWG copper conductors
• Sold individually (quantity per unit: 1)

Compatibility

Designed as an OEM-style compression termination lug for 2/0 AWG copper conductors in residential and commercial electrical distribution applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before making any termination. Use the manufacturer-specified compression tool and die set to achieve a proper crimp; an incorrect die can result in a failed or high-resistance connection. Inspect the crimped barrel for deformation or cracking before making the final panel connection.
