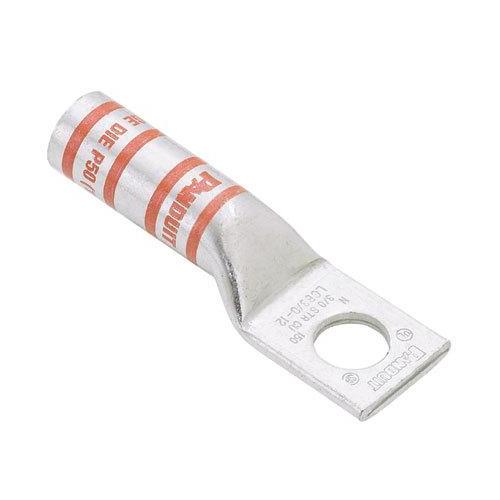

Panduit LCB1/0-12-X Pan-Lug 1-Hole Compression Connector Lug 1/0 AWG

Product Description

Panduit LCB1/0-12-X is a 1-hole compression connector lug designed for use with 1/0 AWG copper stranded conductors. This product features a long barrel for optimal crimping and improved wire pull-out strength. The lug is suitable for various power and grounding applications, ensuring reliable connections in electrical systems.

• Long barrel design for enhanced crimping strength.
• Color-coded for easy identification and compatibility with crimping tools.
• Tin-plated copper construction to prevent corrosion.

Product Highlights

This connector is UL listed and CSA certified, capable of withstanding up to 35 kV when crimped properly. Its enclosed barrel design prevents contaminants from entering, making it ideal for harsh environments.

Product Information

Standard Information

• Brand: Panduit
• MPN: LCB1/0-12-X

Technical Specifications

• Barrel Size: 0.39 inches ID x 0.52 inches OD x 1.44 inches long
• Conductor Size: 1/0 AWG
• Mounting Hole Size: 1-1/2 inches
• Overall Length: 2.92 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 35 kV
• Material: Tin-plated copper
