Panduit LCAX8-38-L Pan-Lug Copper Compression Connectors - Lugs

Product Description

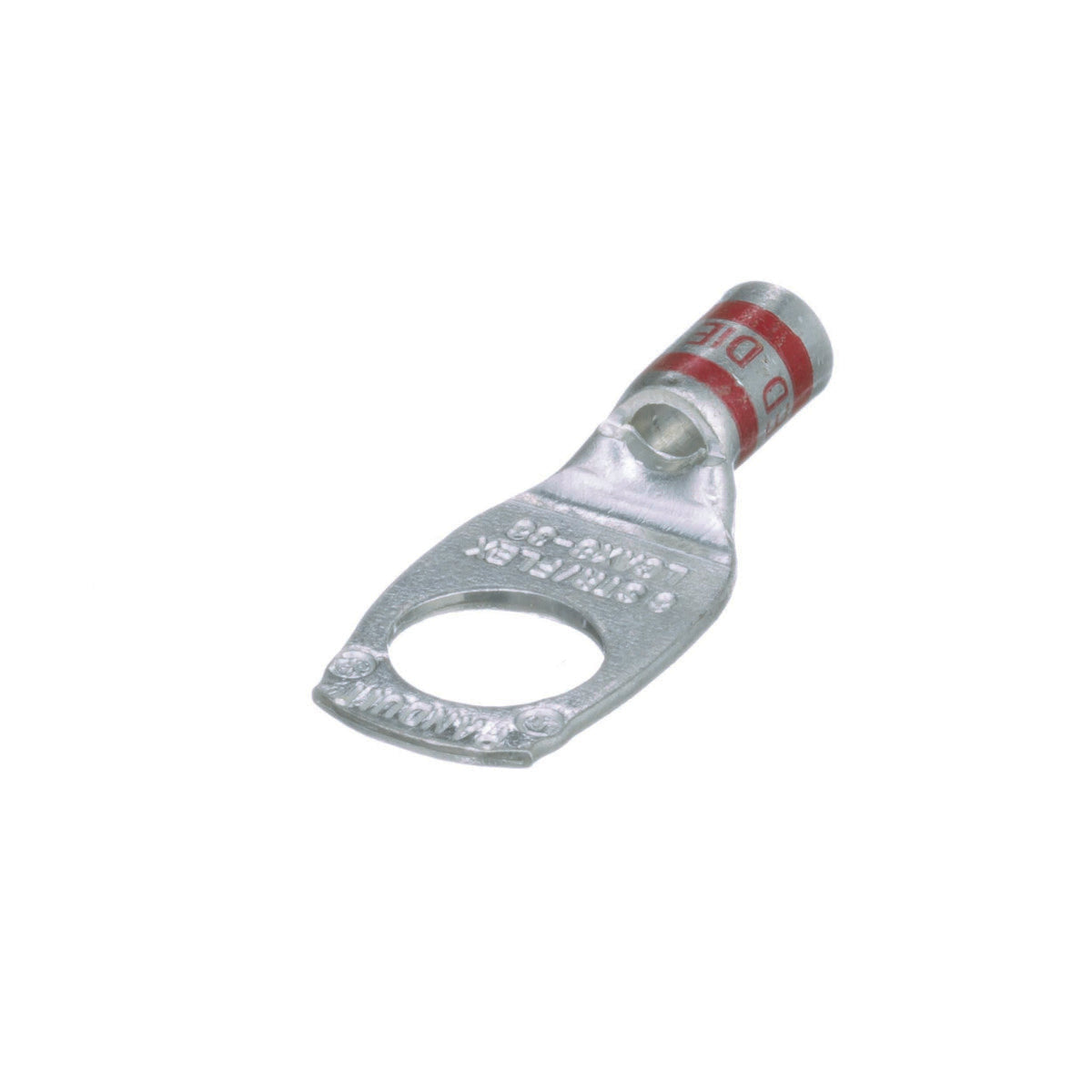

Panduit produces the LCAX8-38-L Pan-Lug copper compression connector. This connector is designed with one hole for easy installation and accommodates #8 AWG wire with a three-eighths inch stud hole.

• Size: #8 AWG, 3/8 inch stud hole
• Material: Tin-plated copper
• Special feature: Consult with cable manufacturer for voltage stress relief instructions with applications greater than 2000 volts

Product Highlights

This connector provides reliable electrical connections for various wiring applications.

Product Information

Standard Information

• Catalog Number: LCAX8-38-L
• Manufacturer: Panduit

Technical Specifications

• Conductor Size: #8 AWG
• Material: Tin-Plated Copper
• Number of Holes: 1
• Stud Size: 3/8 inch
• Country of Origin: Mexico
• Voltage Rating: 35 kV
• Temperature Rating: 90 degrees Celsius
• Special Features: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 volts
