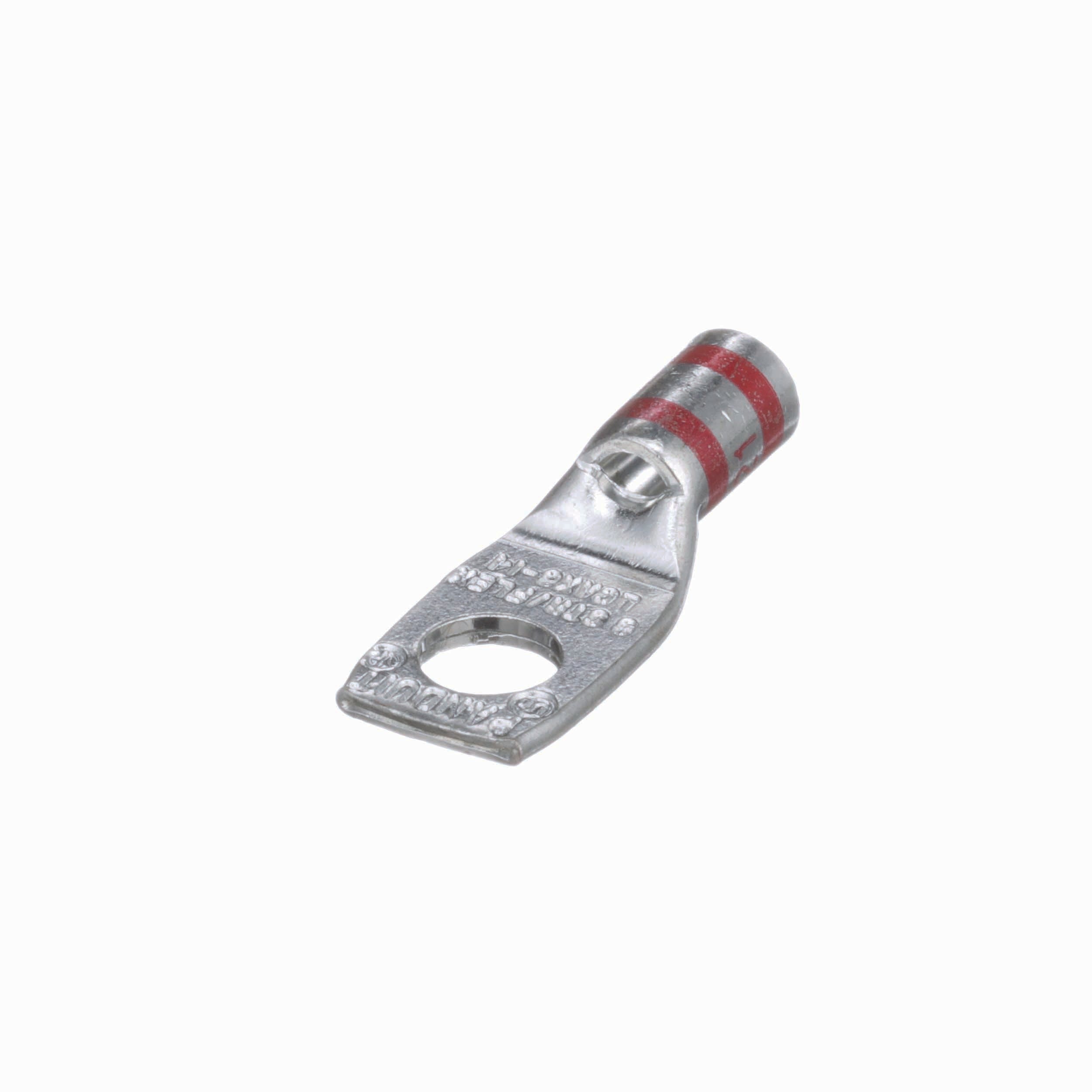

Panduit LCAX8-14-L STDFlexLug 8AWG (1 Hole) Replacement MPN

Product Description

Panduit LCAX8-14-L is a compression lug designed for use with #8 AWG wire. It has a one-hole connection and fits a quarter-inch stud. This product is suitable for various applications, including electrical connections in industrial settings.

• Compatible with code and flex conductors such as classes G, H, I, K, M, and Diesel Locomotive.
• Inspection window to ensure full conductor insertion.
• UL Listed and CSA Certified up to thirty-five kilovolts, temperature rated to ninety degrees Celsius when used with compatible crimping tools.

Product Highlights

The Panduit LCAX8-14-L features a beveled wire entry to minimize strand bending upon insertion. It is tin-plated to resist corrosion and has color-coded barrels for easy crimp tool selection.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCAX8-14-L

Technical Specifications

• Barrel Size: Standard
• Bolt Hole: 1/4 inch
• Gauge: 8 AWG
• Holes: 1 hole
• Inspection Hole: Yes
• Lug Material: Copper
• Type: Flex Compression
• UNSPSC Code: 39121400
