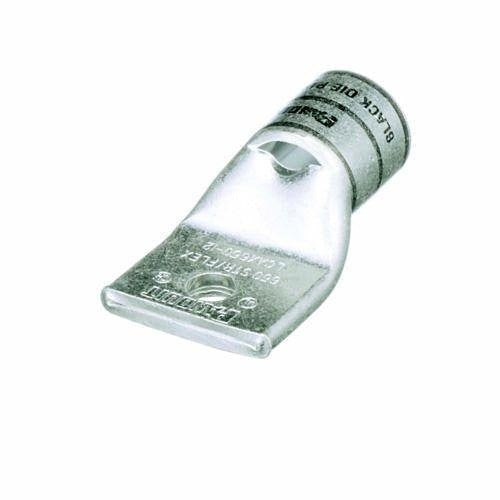

Panduit LCAX650-12-6 Copper Compression Lug

Product Description

The PANDUIT LCAX650-12-6 is a copper compression lug designed for making secure, low-resistance electrical terminations in power distribution and grounding applications. This single-hole lug accepts a compressed conductor connection on one end and mounts to a busbar, switchgear terminal, or equipment lug pad via a single bolt hole. Copper construction provides excellent conductivity and corrosion resistance. It is installed by licensed electricians working on commercial, industrial, or utility-grade electrical systems where reliable, code-compliant terminations are required.

This lug is suited for use in electrical panels, switchboards, motor control centers, and similar power distribution equipment. The compression-style design ensures a gas-tight, mechanically stable connection between the conductor and the terminal point. Applications typically include feeder and branch circuit terminations where a permanent, inspectable lug connection is specified by the engineer or authority having jurisdiction.

Key Features

• Copper construction for high conductivity and resistance to corrosion
• Compression-style termination creates a gas-tight, mechanically secure connection
• Single-hole mounting configuration for clean, space-efficient installation on busbars and equipment terminals
• Sold individually, allowing exact quantity ordering for the job

Compatibility

Designed as an OEM-style compression lug for use in commercial and industrial electrical termination applications where a single-hole copper compression lug is specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before installation. Use a calibrated compression tool appropriate for the conductor size to achieve a proper crimp. Torque the mounting hardware to the equipment terminal specification listed on the equipment nameplate or installation documentation.
