Panduit LCAX6-56-L Pan-Lug Copper Compression Connectors - Lugs

Product Description

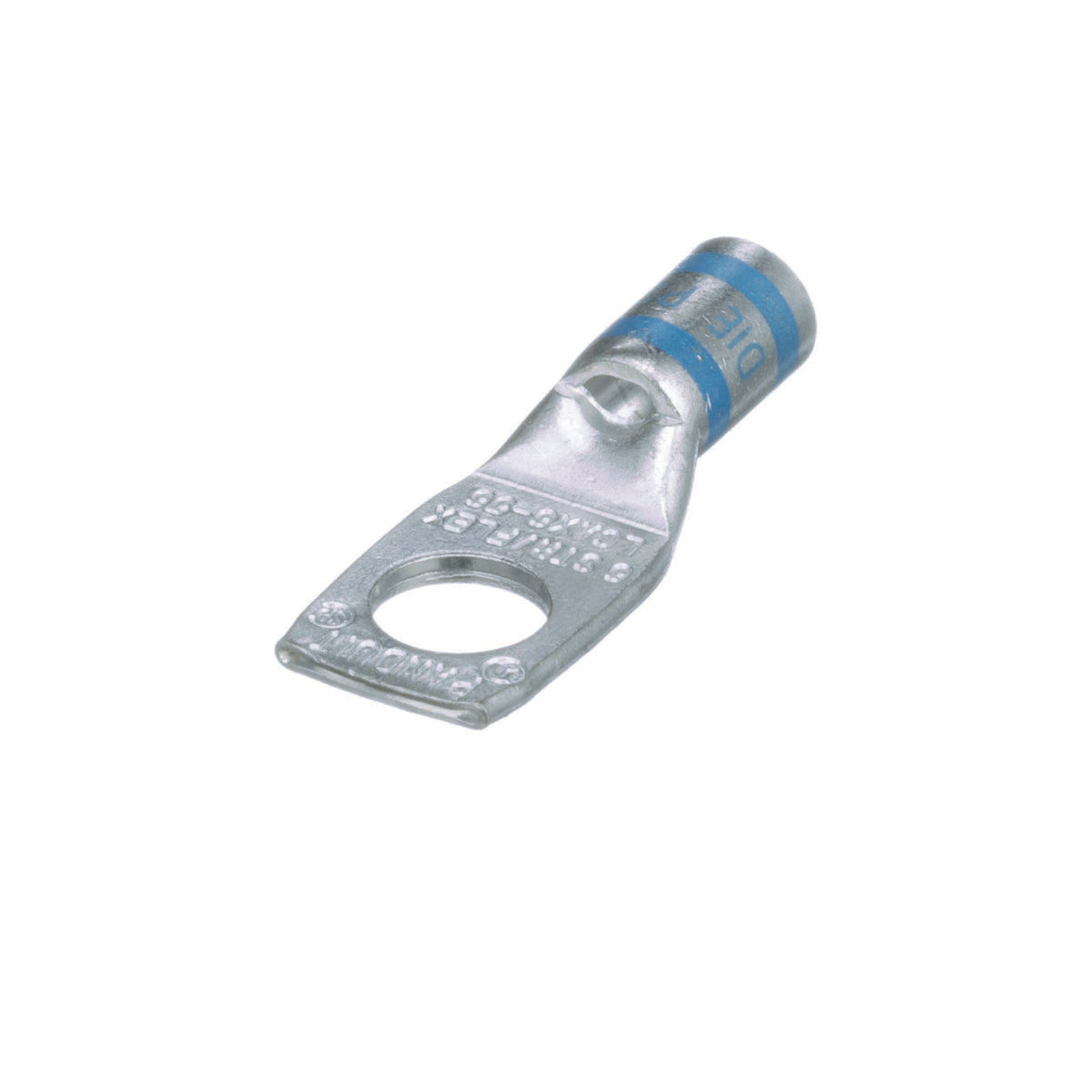

The Panduit LCAX6-56-L is a one-hole compression connector lug designed for use with #6 AWG flexible copper conductors. This product ensures reliable connections for electrical systems.

• Single hole design for easy installation
• Compatible with various flexible copper conductor classes
• Tin plated to resist corrosion

Product Highlights

The Panduit LCAX6-56-L is built to provide secure and durable connections. This connector is ideal for connecting copper wiring in commercial and industrial applications.

Product Information

Standard Information

• Manufacturer: Panduit
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: LCAX6-56-L
• Material: Tin-Plated Copper
• Conductor Size: #6 AWG
• Stud Size: 5/16 IN
• Barrel Size: 0.22 IN ID x 0.31 IN OD x 0.48 IN L
• Temperature Rating: 90 deg C
• Voltage Rating: 35 kV
• Special Features: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.
