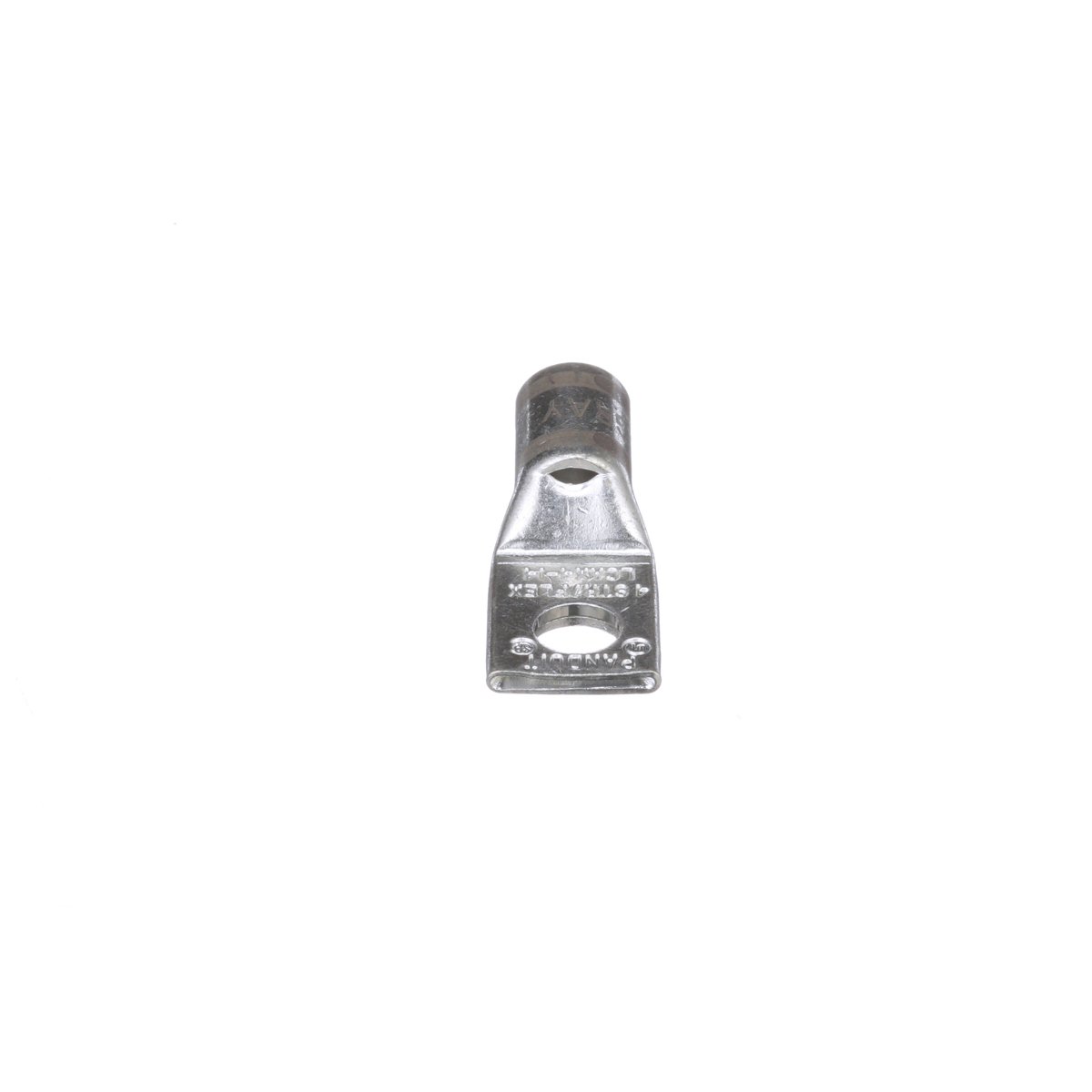

Panduit LCAX4-14-L Copper Compression Lug Power 1 Hole

Product Description

The Panduit LCAX4-14-L is a copper compression lug designed for efficient electrical connections. This product features a one-hole, standard barrel design with a tin-plated finish that helps prevent corrosion. Color-coded barrels are marked for easy crimp die selection, ensuring proper installation. An inspection window allows for confirmation of complete conductor insertion.

• UL Listed and CSA Certified for up to thirty-five kilovolts.
• Temperature rated for up to ninety degrees Celsius.
• Suitable for various conductor types including code conductor and flex conductor classes G, H, I, K, and M.

Product Highlights

This lug is essential for reliable electrical connections in various applications. Its tin plating and inspection features enhance performance and safety.

Product Information

Standard Information

• Brand: Panduit
• MPN: LCAX4-14-L

Technical Specifications

• Barrel Type: Standard with Inspection Window
• Material: Tin-Plated Copper
• Gauge: 4 AWG
• Holes: 1
• Stud Size: 1/4 inch
• Temperature Rating: 90 °C
• Voltage Rating: 35 kV
• UNSPSC Code: 39121400
