Panduit LCAX4/0-56-X Copper Compression Lug 4/0 AWG

Product Description

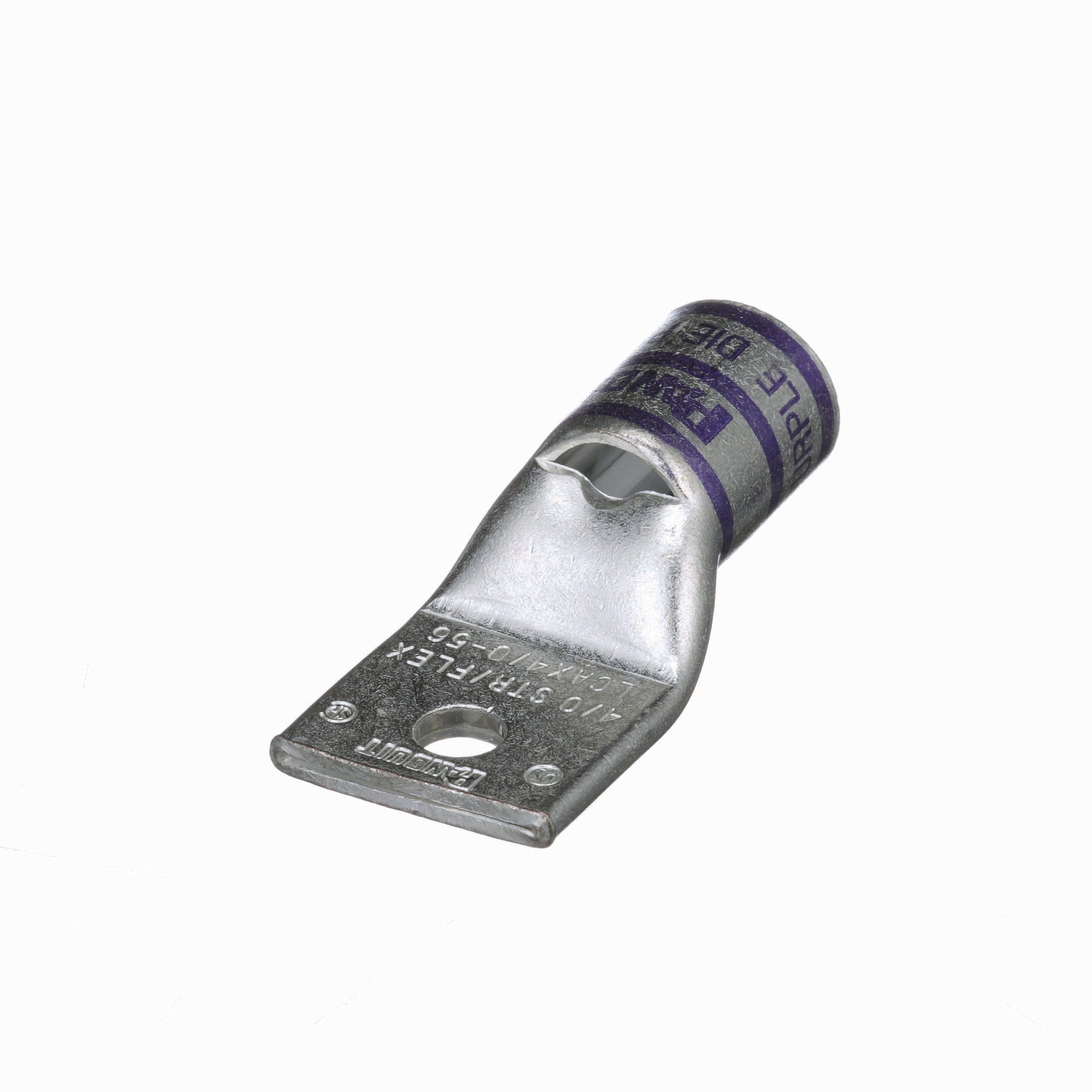

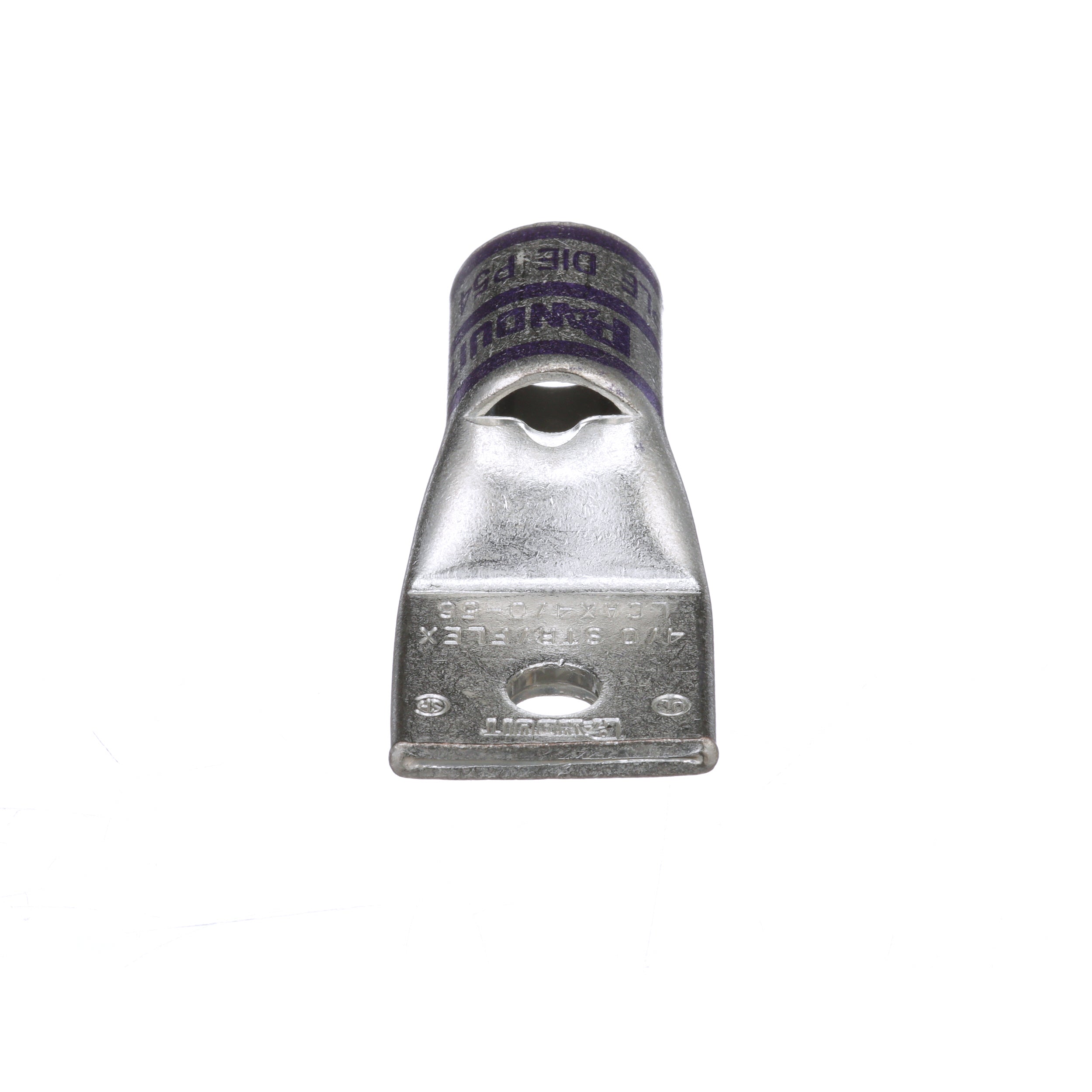

The PANDUIT LCAX4/0-56-X tin-plated copper compression lug is a one-hole, standard barrel lug with color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. It is UL Listed and CSA Certified to 35 KV and temperature rated to 90C.

• Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
• Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
• Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection

Product Highlights

The PANDUIT LCAX4/0-56-X copper compression lug is tin-plated to inhibit corrosion and has an inspection window to visually assure full conductor insertion.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCAX4/0-56-X

Technical Specifications

• Barrel: STANDARD
• Bolt Hole: 5/16 INCH
• Gauge: 4/0 AWG
• Holes: 1 HOLE
• Inspection Hole: YES
• Lug Material: COPPER
• Type: FLEX COMPRESSION
• UNSPSC Code: 39121400
• Barrel Size: 0.65 in ID x 0.81 in OD x 1.03 in L
• Conductor Size: 4/0 AWG
• Conductor Type: Flexible Copper
• Die Code: P54
• Material: Tin Plated Copper
• Overall Length: 2.53 in
• Series: LCAX
• Standards/Approvals: ABS Approved|ARRA Compliant|Buy American Act Compliant|CSA C22.2 File No. 65-13|NEBS Level 3|RoHS Compliant|UL File No. 486A|UL File No. 486B|UL File No. E52164
• Stud Size: 5/16 in
• Temperature Rating: 90 deg C
• Tongue Size: 1.19 in W x 0.16 in THK
• Tongue Type: Straight
• Voltage Rating: 35 kV
• Manufacturer Part Number: Panduit LCAX4/0-56-X
• Barrel Length: 1.03 in, 26.2 mm
• Barrel Type: Standard Barrel Length with Inspection Window
• Color Code: Purple
• Product: Compression Lugs
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Tongue Angle: Straight
