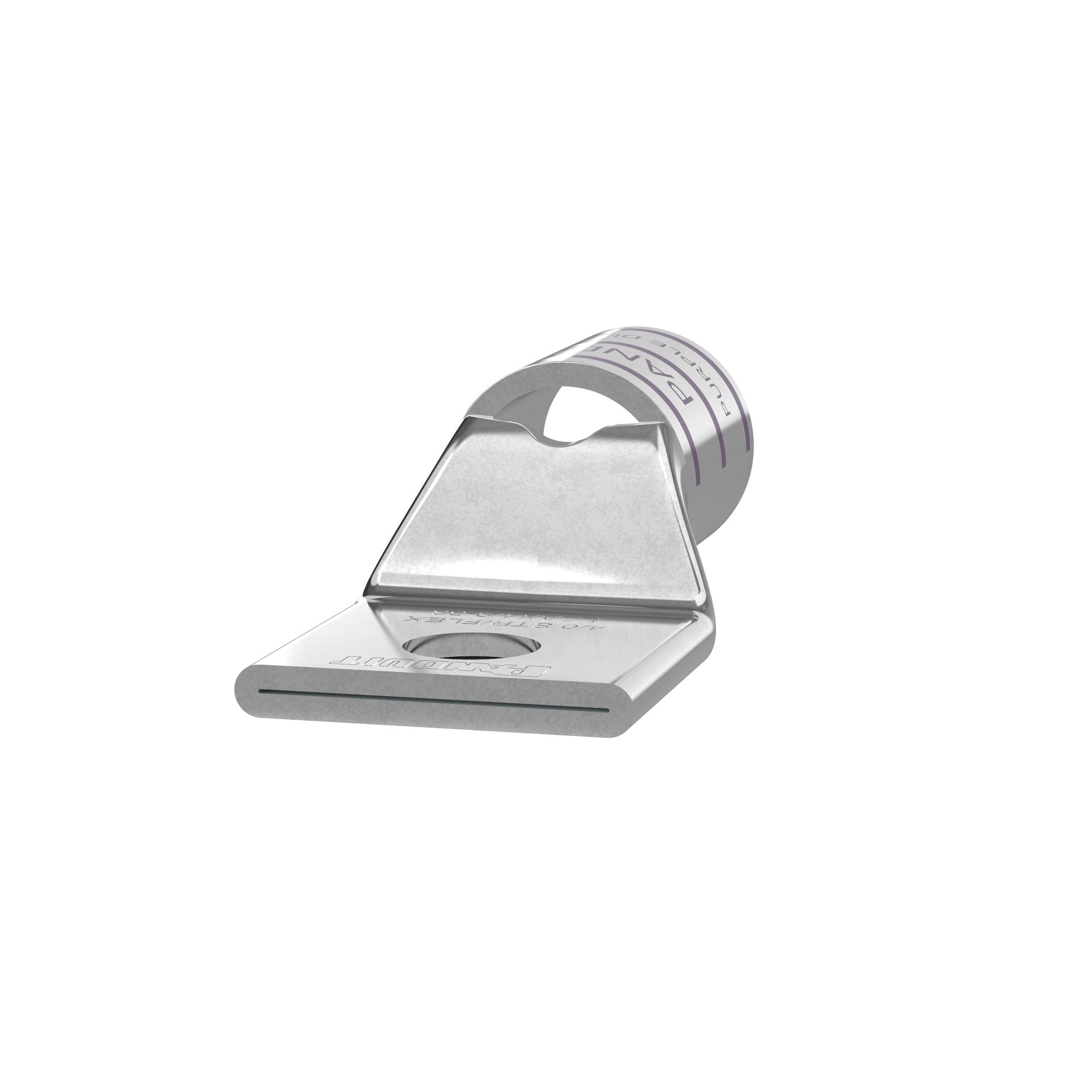

Panduit LCAX4/0-38-X Pan-Lug Compression Lug, 4/0, Tin Plt Copper, One 3/8 Stud, PK10

Product Description

The Panduit LCAX4/0-38-X is a tin-plated copper compression lug designed for use with 4 AWG wire. This one-hole lug features a standard barrel design. The product includes color-coded barrels marked with competitor die index numbers, aiding in the selection of the appropriate crimp die. A beveled wire entry helps prevent bent strands during insertion, ensuring a secure and reliable connection. The inspection window allows for visual confirmation of full conductor insertion. The tin plating offers corrosion resistance to extend the lifespan of the connector.

• Compatible with wire sizes: 4/0 AWG
• Stud size: 3/8 inch
• UL Listed and CSA Certified

Product Highlights

The Panduit LCAX4/0-38-X offers a reliable solution for both flexible and standard conductors. Ideal for applications where durability and conductivity integrity are crucial.

Product Information

Standard Information

• Catalog Number: LCAX4/0-38-X
• Manufacturer: Panduit

Technical Specifications

• Material: Copper
• Color: Purple
• Number of Holes: 1
• Special Features: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
• Standard: C22.2 No. 65-13, 486A-486B File #E52164
• UPC: 074983435616
• GTIN: 00074983435616
• Size: 4/0 AWG Class B, C, G, H, I, K, M and DLO
• Stud Size: 3/8 IN
