Panduit LCAX4/0-12-X Pan-Lug 4/0 AWG

Product Description

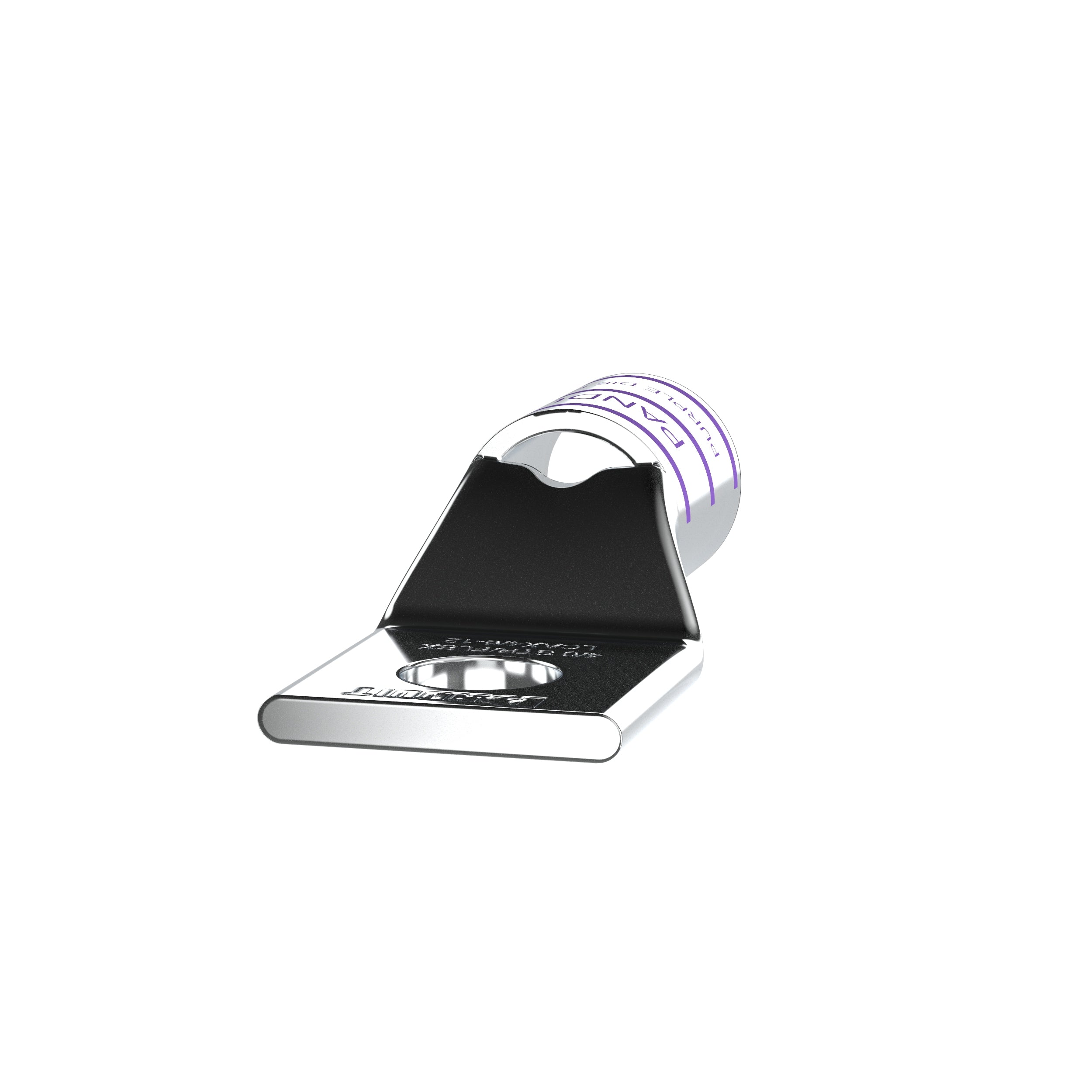

The PANDUIT LCAX4/0-12-X is a Pan-Lug compression lug connector. Designed for flexible copper conductors, it accommodates 4/0 AWG wire and features a 1/2 in stud. It has a straight tongue and an inspection window to ensure full conductor insertion. Tin-plated to inhibit corrosion and suitable for use up to 35 kV.

• Color-coded bands for proper die selection and crimp placement
• Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
• Tin-plated to inhibit corrosion

Product Highlights

The LCAX4/0-12-X compression lug is ideal for electrical connections requiring secure and corrosion-resistant performance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCAX4/0-12-X

Technical Specifications

• Barrel Size: 0.65 in ID x 0.81 in OD x 1.03 in L
• Conductor Size: 4/0 AWG
• Conductor Type: Flexible Copper
• Die Code: P54
• Manufacturer Part Number: LCAX4/0-12-X
• Material: Copper
• Mounting Hole Size: 1-1/16 in
• Overall Length: 2.64 in
• Series: LCAX
• Standards/Approvals: ABS Approved|ARRA Compliant|Buy American Act Compliant|CSA C22.2 File No. 65-13|NEBS Level 3|RoHS Compliant|UL File No. 486A|UL File No. 486B|UL File No. E52164
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 1.19 in W x 0.16 in THK
• Tongue Type: Straight
• Type: 1-Hole
• Voltage Rating: 35 kV
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp, Barrel
• Wire Gauge: 4/0 AWG
• Insulation: Non-Insulated
• Contact Finish: Electro-Tin
• Contact Material: Copper
• Terminal Style: Single Stud Hole
• Diameter - Barrel ID: 0.650" (16.51mm)
• Tab Thickness: 0.160" (4.06mm)
• Diameter - Barrel OD: 0.810" (20.57mm)
• Length - Overall: 2.640" (67.06mm)
• Diameter - Ring ID: 0.530" (13.46mm)
• Width - Outer Edges: 1.190" (30.23mm)
• Finish: Tin Plated
• Number of Bolt Holes: 1
• Brand: PANDUIT
• Angle: 180 Degrees
• Base Material: Copper
• Color Code: Purple
• Product Type: Lugs
• Numeric ID: 2510411
• Termination Type: Lug
• Wire Size: 4 AWG
