Panduit LCAX350-38-6 Conn Term Rect Tong 350 MCM #3/8

Product Description

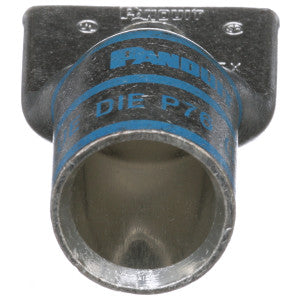

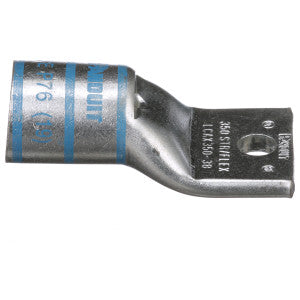

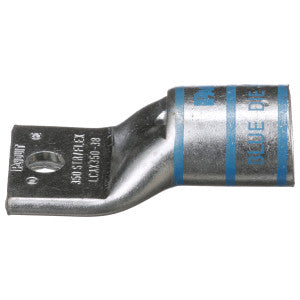

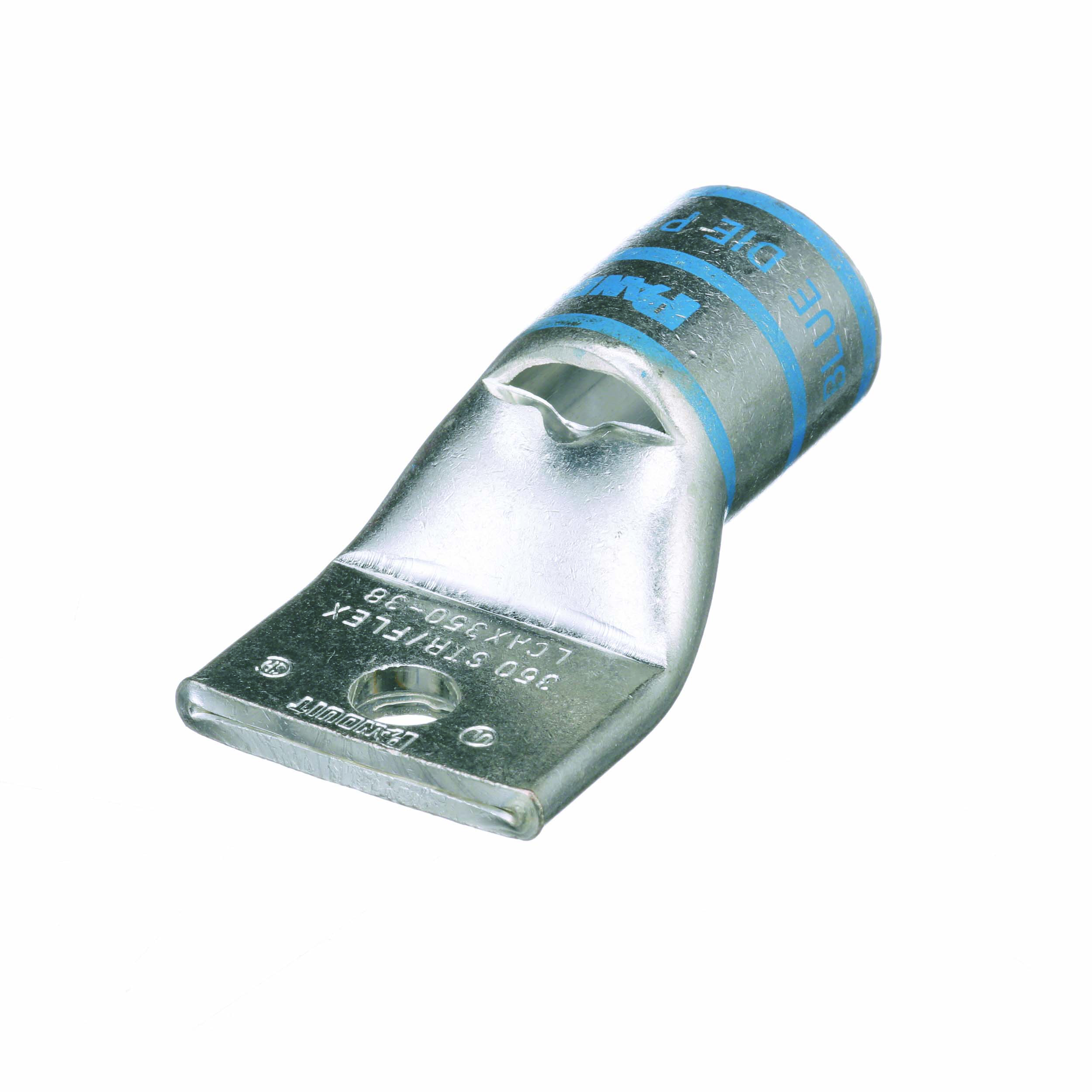

The PANDUIT LCAX350-38-6 is a terminal connector with a rectangular tongue designed for 350 MCM (kcmil) cables and a 3/8 stud. It features color-coded barrels marked with Panduit and competitor die index numbers for proper crimping. An inspection window aids in visually assuring full conductor insertion, and the tin-plate material helps to inhibit corrosion.

• Designed for 350 MCM (kcmil) cables
• Features a 3/8 stud hole for secure connection
• Tin-plated copper construction inhibits corrosion

Product Highlights

This compression lug ensures a reliable connection for various applications in the electrical and industrial sectors.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCAX350-38-6
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals - Lugs: Lugs
• Mounting Type: Free Hanging (In-Line)
• Manufacturer: Panduit
• Termination: Crimp, Barrel
• Series: Pan-Lug
• Wire Gauge: 350MCM (kcmil)
• Packaging: Bulk
• Insulation: Non-Insulated
• Part Status: Active
• Color: Blue
• Terminal Type: Rectangular Tongue
• Contact Finish: Electro-Tin
• Stud/Tab Size: 3/8 Stud
• Contact Material: Copper
• Terminal Style: Single Stud Hole
• Diameter - Barrel ID: 0.840" (21.34mm)
• Tab Thickness: 0.220" (5.59mm)
• Diameter - Barrel OD: 1.060" (26.92mm)
• Length - Overall: 2.930" (74.42mm)
• Diameter - Ring ID: 0.410" (10.41mm)
• Width - Outer Edges: 1.540" (39.12mm)
• Finish: Tin-Plated
• Die Color: Blue
• Outer Diameter: 1.06 in.
• Stud Hole Spacing: 3/8 in.
• Color Family: Blue
• Length: 2.93 in.
• Manufacturer Part Number: Panduit LCAX350-38-6
• Barrel Length: 1.29 in, 32.8 mm
• Barrel Type: Standard Barrel Length with Inspection Window
• Color Code: Blue
• Product: Compression Lugs
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Tongue Type: Standard Tongue Width
• Tongue Angle: Straight
• MPN: LCAX350-38-6
