Panduit LCAX350-12-6 Comp. Lug, 350, Tin Plt Copper, Strt, One 1/2 Stud, PK6

Product Description

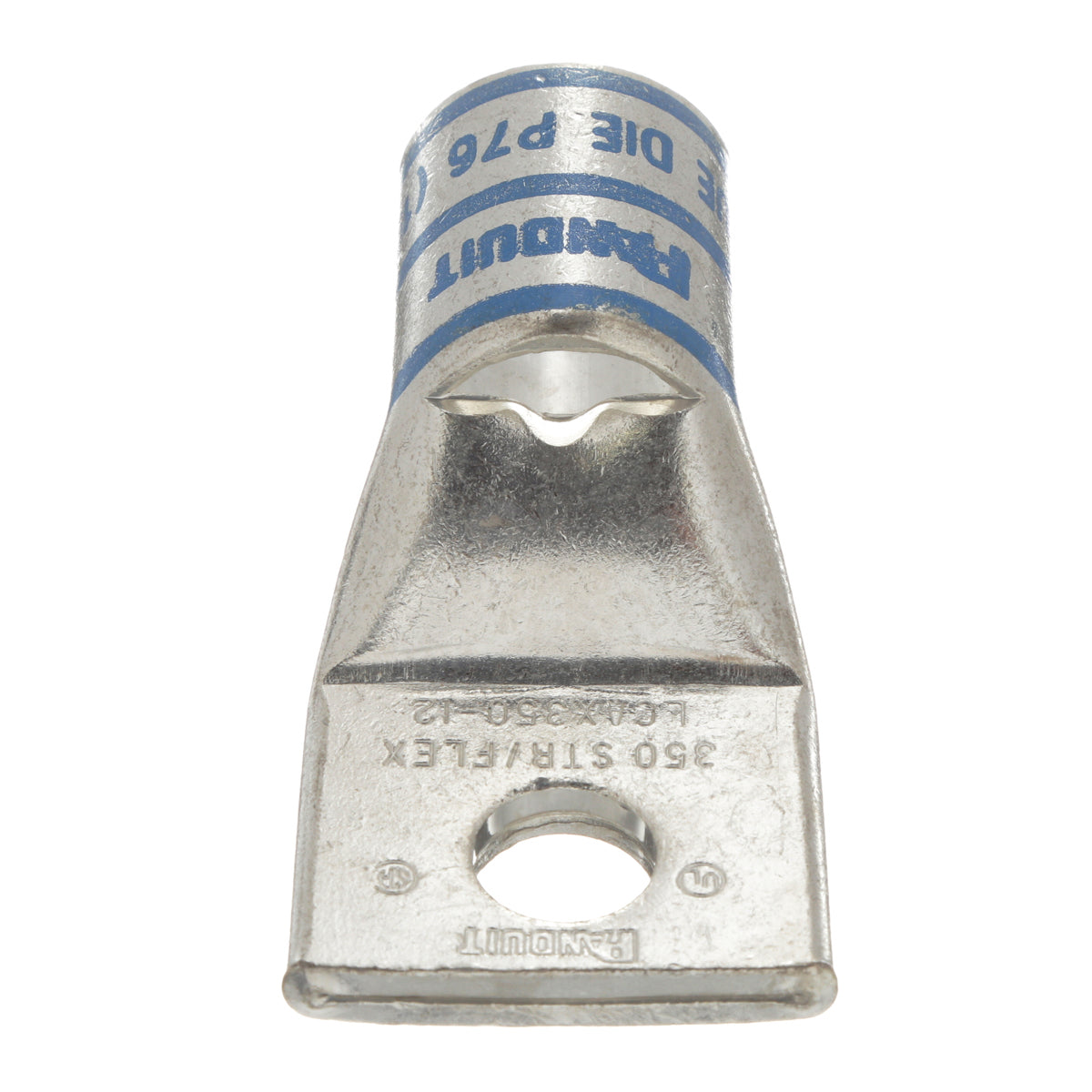

The Panduit LCAX350-12-6 is a tin-plated copper compression lug. It features a one-hole standard barrel design, suitable for various applications.

• Color-coded barrels for proper crimp die selection.
• Inspection window for visual confirmation of full conductor insertion.
• Corrosion-resistant tin plating for durability.

Product Highlights

This compression lug is UL Listed and CSA Certified. It is rated for thirty-five kilovolts and can operate at a temperature of ninety degrees Celsius.

Product Information

Standard Information

• Brand: Panduit
• MPN: LCAX350-12-6

Technical Specifications

• Catalog Number: LCAX350-12-6
• Manufacturer: Panduit
• Material: Tin-Plated Copper
• Stud Size: 1/2 IN
• Conductor Size: 350 kcmil, 373.7 kcmil
• Temperature Rating: 90 deg C
• Voltage Rating: 35 kV
• Color: Blue
• Number of Holes: 1
• Special Features: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
• Standard: UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13
• Country of Origin: Mexico
