Panduit LCAX3/0-38-X Copper Compression Lug

Product Description

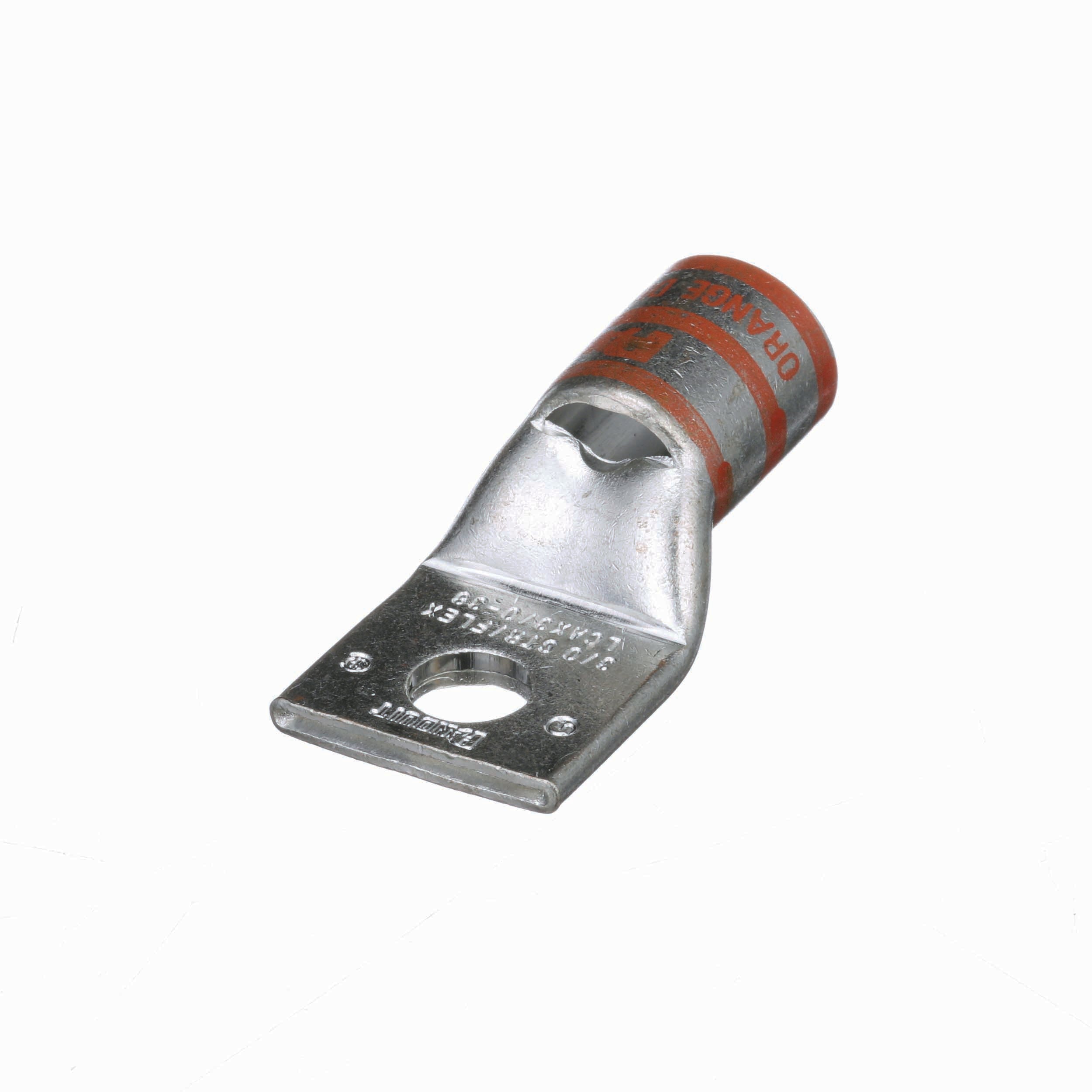

The Panduit Copper Compression Lug, MPN: LCAX3/0-38-X, is designed for use with 3/0 AWG flexible copper conductors. This one-hole lug features a standard barrel with an inspection window.

• Color-coded barrels assist with die selection.
• Beveled wire entry aids conductor insertion.
• Tin plating reduces corrosion.

Product Highlights

This compression lug is UL Listed and CSA Certified, making it suitable for various electrical applications.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCAX3/0-38-X

Technical Specifications

• Conductor Size: 3/0 AWG
• Stud Size: 3/8 in
• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 deg C
• Overall Length: 2.17 in
• Barrel Size: 0.57 in ID x 0.71 in OD x 0.91 in L
• Mounting Hole Size: 1 in
• Die Code: P50
