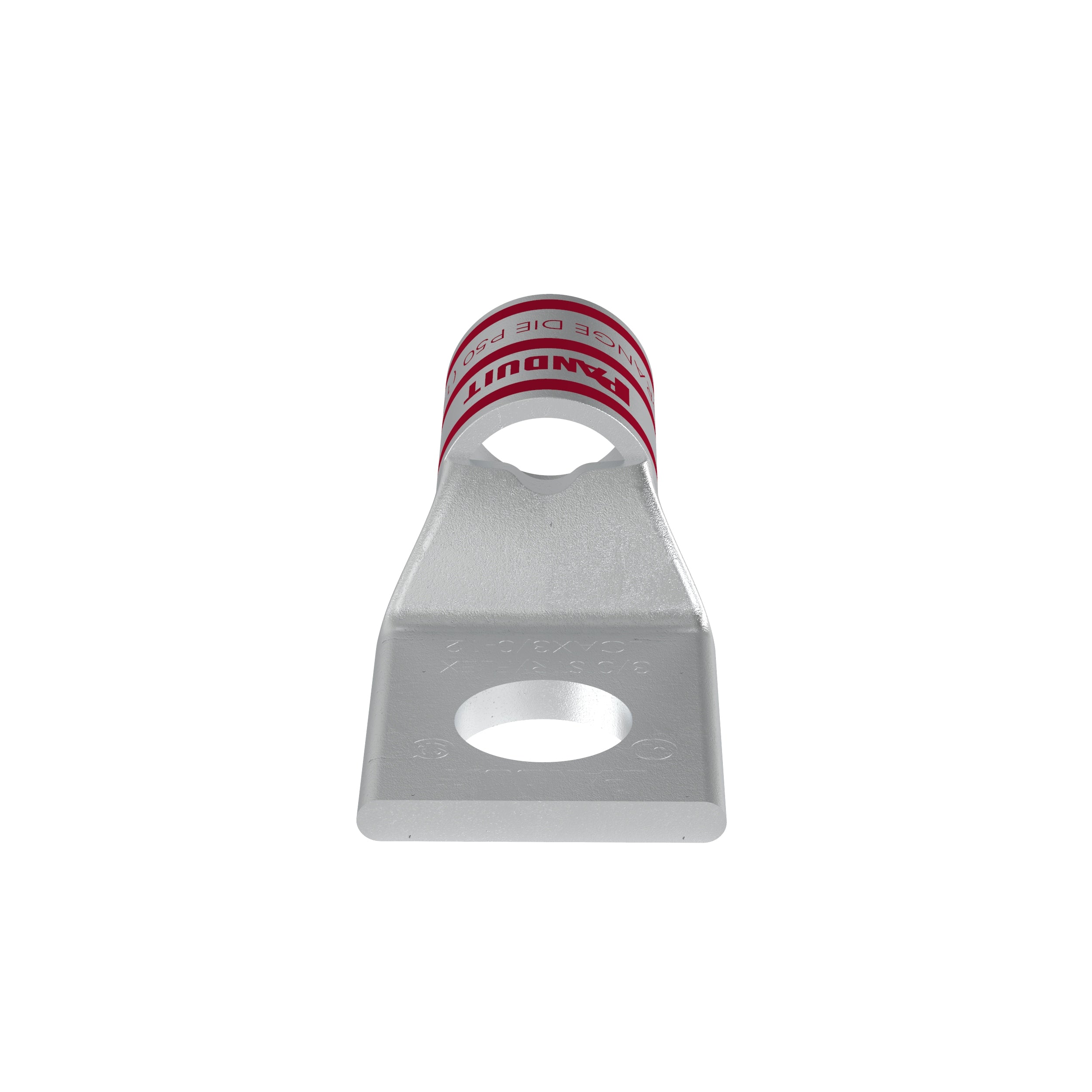

Panduit LCAX3/0-12-X Copper Compression Lug 35 kV (Each) N/A

Product Description

The Panduit LCAX3/0-12-X is a tin-plated copper compression lug designed for efficient electrical connections. This one-hole lug features color-coded barrels to align with the specified competitor die index numbers, ensuring accurate crimp die selection. An inspection window enables the user to confirm full conductor insertion visually. The material is coated to resist corrosion, increasing durability and reliability in various applications.

• UL Listed and CSA Certified for safety
• Temperature rated to 90°C
• Designed for use with flexible copper conductors

Product Highlights

Utilizing a standard barrel design with marked crimp die selection, this lug is ideal for various electrical applications where reliability is crucial. It is suitable for 35 kV ratings and provides a robust connection for copper wires.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCAX3/0-12-X

Technical Specifications

• Material: Tin-Plated Copper
• Stud Size: 1/2 inches
• Number of Holes: 1
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• Barrel Size: 0.57 inches ID x 0.71 inches OD x 0.91 inches L
• Overall Length: 2.4 inches
• UPC: 07498343554
