Panduit LCAX250-56-X Pan-Lug Compression Connector Lug 250 Kcmil

Product Description

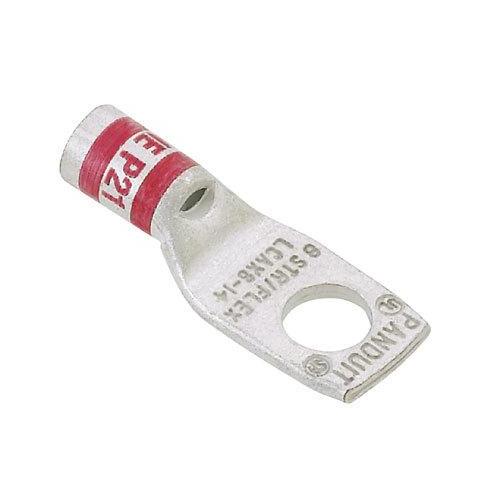

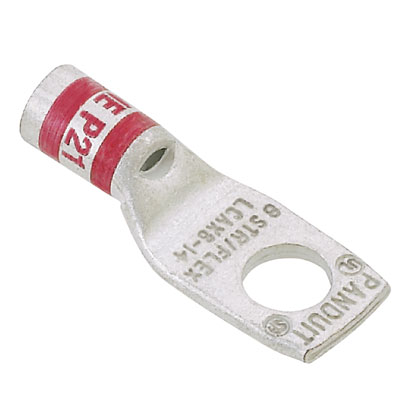

Panduit LCAX250-56-X is a Pan-Lug compression connector lug designed for flexible copper conductors. It accommodates conductor sizes up to two hundred fifty kcmil and can handle voltages up to thirty-five kV. This connector features a one-hole design, suitable for various wiring applications.

• Suitable for flexible copper conductors
• Tin-plated to prevent corrosion
• Includes an inspection window for conductor insertion

Product Highlights

The Panduit LCAX250-56-X Pan-Lug ensures reliable connections for high-capacity electrical systems. It is ideal for use in demanding environments.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCAX250-56-X

Technical Specifications

• Conductor Size: 250 kcmil, 262.6 kcmil
• Temperature Rating: 90 deg C
• Voltage Rating: 35 kV
• Overall Length: 2.57 in
• Tongue Size: 1.28 in W x 0.17 in THK
• Stud Size: 42.491 in
• Mounting Hole Size: 10-5/8 in
• Barrel Size: 0.7 in ID x 0.88 in OD x 1.03 in L
• Die Code: P62
• Material: Tin Plated Copper
• Type: 1-Hole
• Series: LCAX
