Product Description

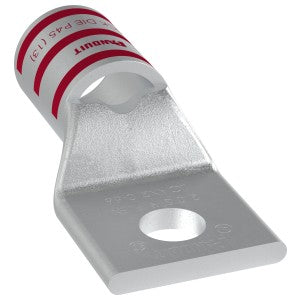

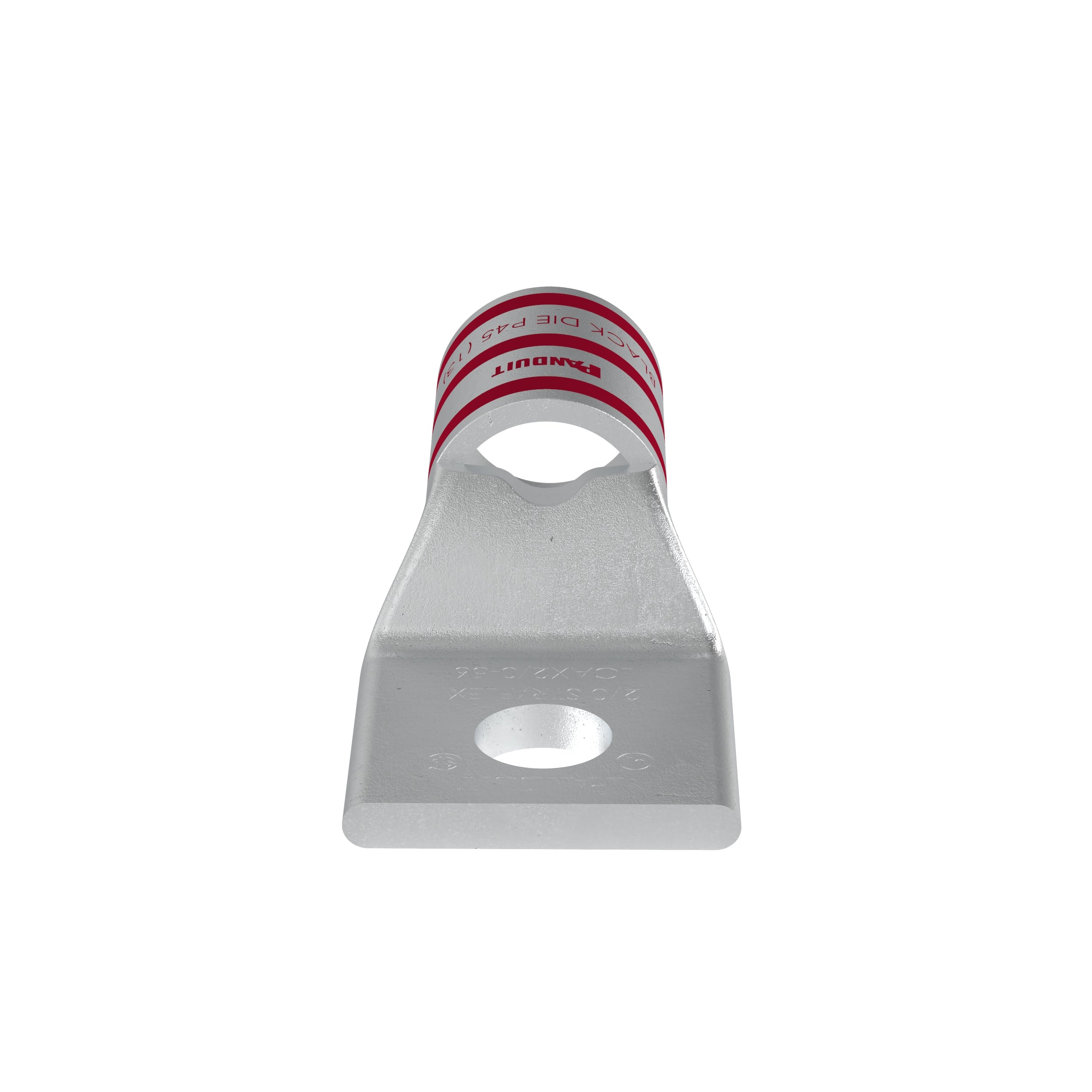

The PANDUIT LCAX2-56-E tin-plated copper compression lug is a one-hole, standard barrel lug with color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion. It is designed for #2 AWG wire and features a 5/16 stud hole for secure attachment.
- Tin plated to inhibit corrosion
- UL Listed and CSA Certified to 35KV and temperature rated to 90°C when crimped with PANDUIT and specified competitor crimping tools and dies
- Color coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
Product Highlights
The Panduit LCAX2-56-E compression lug ensures reliable termination with easy identification, fast installation, and optimum conductivity for various electrical applications.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: LCAX2-56-E
-
Country of Origin: MX - Mexico
Technical Specifications
-
IGCC: 4532
-
Size: NO.2 AWG Class B; C; G; H; I; K; M and DLO
-
Type: Compression Lug
-
Angle: Straight
-
Color: Brown
-
Material: Tin-Plated Copper
-
Standard: C22.2 No. 65-13; 486A-486B File NO.E52164
-
Stud Size: 5/16 " "
-
Barrel Type: Standard Barrel with Inspection Window
-
Family group: CONNECTORS
-
Manufacturer: PANDUIT
-
Number Of Holes: 1
-
Category: Connectors, Interconnects
-
Terminals: Lugs
-
Mounting Type: Free Hanging (In-Line)
-
Termination: Crimp, Barrel
-
Series: Pan-Lug LCAX Series
-
Wire Gauge: 2 AWG
-
Packaging: Bulk
-
Insulation: Non-Insulated
-
Part Status: Active
-
Terminal Type: Rectangular Tongue
-
Contact Finish: Electro-Tin
-
Contact Material: Copper
-
Terminal Style: Single Stud Hole
-
Diameter - Barrel ID: 0.360" (9.14mm)
-
Tab Thickness: 0.110" (2.79mm)
-
Diameter - Barrel OD: 0.470" (11.94mm)
-
Length - Overall: 1.630" (41.40mm)
-
Diameter - Ring ID: 0.340" (8.64mm)
-
Width - Outer Edges: 0.700" (17.78mm)
-
Base Product Number: LCAX2
-
Product Category: Crimp Terminals, Housings, Splices, & Lugs
-
Compression Lugs & Splices: Compression Lugs & Splices
-
Manufacturer Part Number: Panduit LCAX2-56-E
-
Overall Length: 1.63 in
-
Tongue Width: 17.8 mm, .7 in
-
Barrel Length: 15 mm, .59 in
-
Color Code: Brown
-
Product: Compression Lugs
-
Product Type: Tin-Plated Copper Compression Connectors - Lugs
-
Tongue Type: Standard Tongue Width
-
Tongue Angle: Straight
-
SKU: PANLCAX2-56-E
-
ECCN: EAR99
-
Brand: PANDUIT
-
Finish: Tin-Plated
-
Outer Diameter: 0.47 in.
-
Stud Hole Spacing: 5/16 in.
-
Lug Wire Size: 2 AWG
-
Color Family: Brown
-
Length: 1.63 in.
-
UNSPSC Code: 39120000
-
Die Type: P33
-
Hole Size: 5 16 in
-
Package Quantity: 20
-
Style: One-Hole
-
Wire Size: 2 AWG
