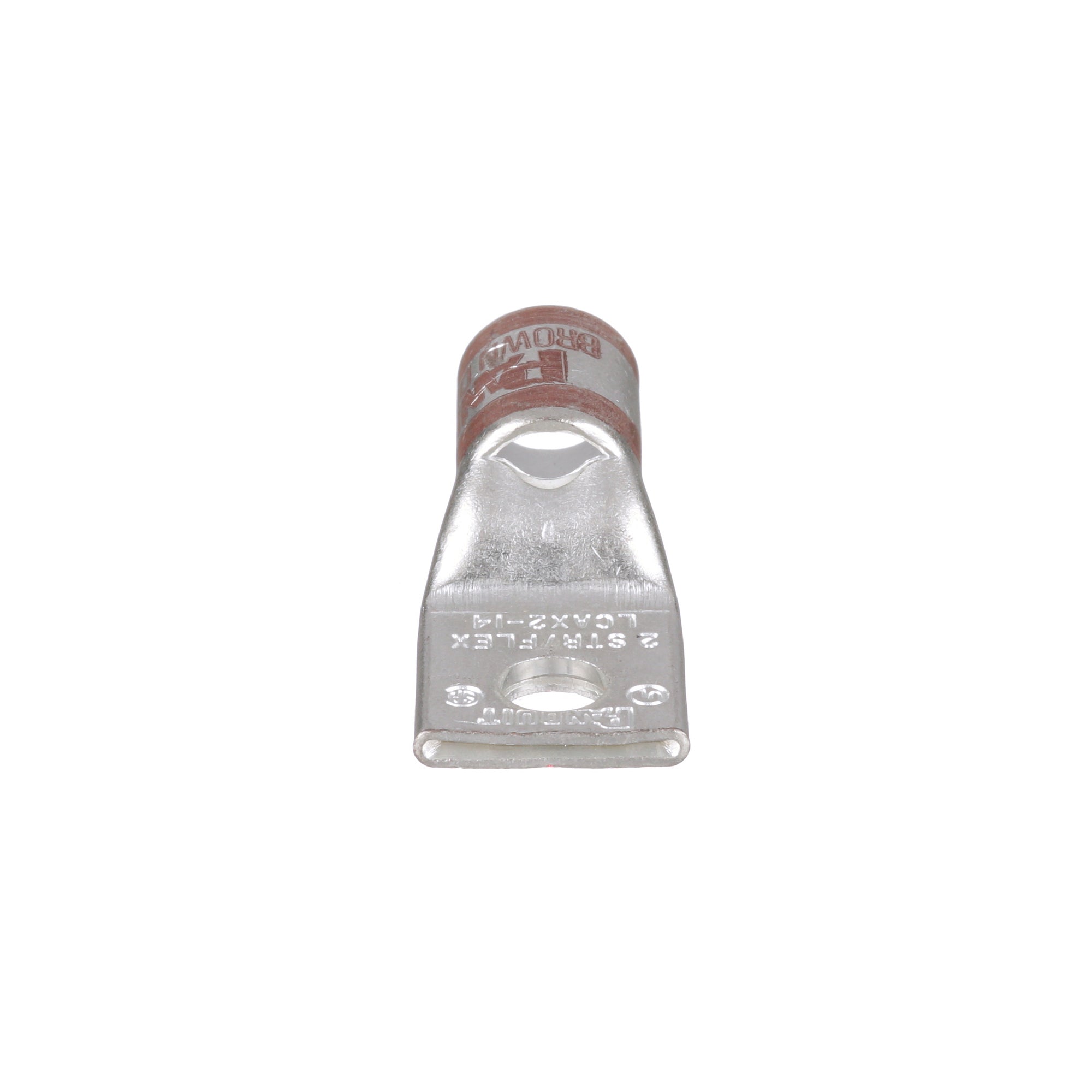

Panduit LCAX2-14-E Copper Compression Lug 2 AWG 1 Hole Standard Barrel

Product Description

The LCAX2-14-E is a tin-plated copper compression lug manufactured by Panduit. It features a one-hole, standard barrel design. Color-coded barrels are marked with Panduit and competitor die index numbers for easy crimp die selection. An inspection window ensures full conductor insertion. The tin plating helps inhibit corrosion, extending the life of the connection.

• UL Listed and CSA Certified to 35 kV.
• Temperature rated to 90 degrees Celsius.
• Integrates with various code conductor and flex conductor classes including G, H, I, K, M, and diesel locomotive.

Product Highlights

This compression lug is suitable for many applications, ensuring reliable electrical connections in harsh environments.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCAX2-14-E

Technical Specifications

• Conductor Size: #2 AWG
• Material: Tin-Plated Copper
• Voltage Rating: 35 kV
• Stud Size: 1/4 inch
• Number of Holes: 1
• Overall Length: 1.5 inches
• Color: Brown
• Temperature Rating: 90 degrees Celsius
