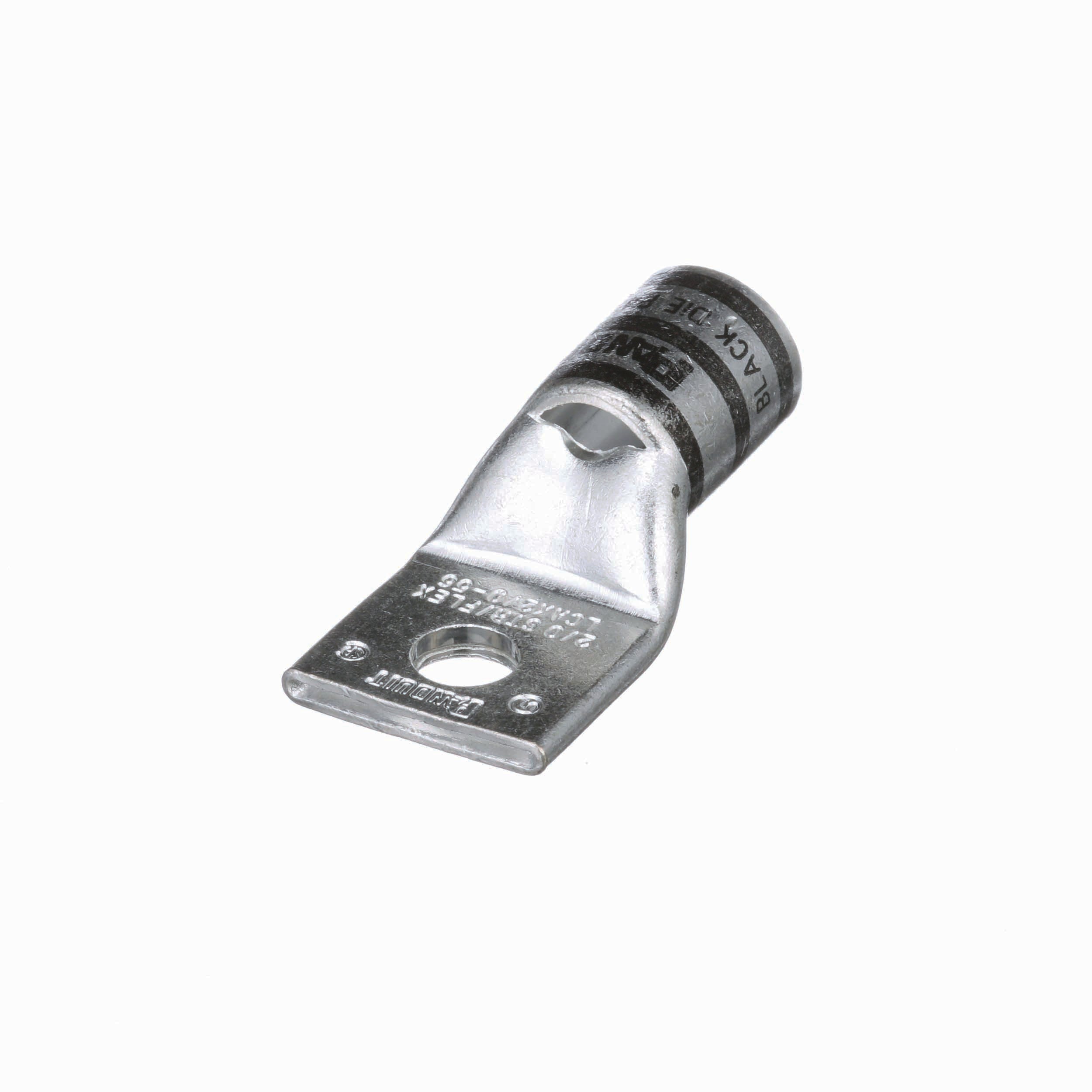

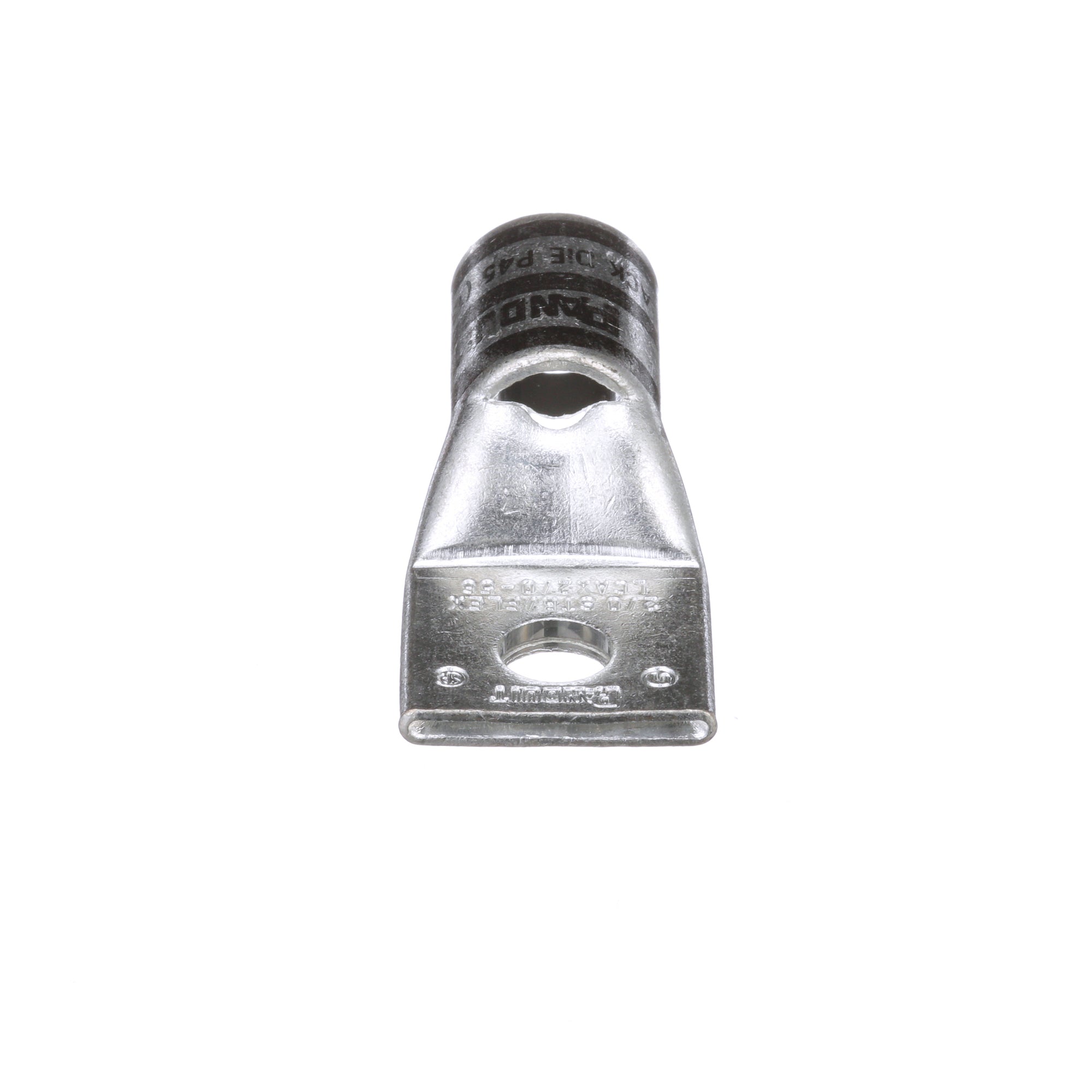

Panduit LCAX2/0-56-X Copper Compression Lug, 1 Hole, 2/0 AWG Flex, 5/16-Inch Stud

Product Description

The Panduit LCAX2/0-56-X is a copper compression lug designed for reliable electrical connections. This one-hole lug is suitable for 2/0 AWG flexible copper conductor with a 5/16-inch stud hole. It features a tin-plated surface to prevent corrosion and an inspection window for ensuring proper conductor insertion.

• UL Listed and CSA Certified to 35 kV
• Standard barrel with a color-coded design for easy die selection
• Beveled wire entry to prevent conductor strain

Product Highlights

The LCAX2/0-56-X is ideal for use in a variety of electrical applications, providing durability and ease of installation.

Product Information

Standard Information

• Brand: Panduit
• MPN: LCAX2/0-56-X

Technical Specifications

• Material: Tin-plated Copper
• Conductor Size: 2/0 AWG
• Barrel Type: Standard
• Bolt Hole Size: 5/16 inch
• Holes: 1
• Temperature Rating: 90 degrees C
• Voltage Rating: 35 kV
• Inspection Window: Yes
• Standards/Approvals: UL, CSA
• Color: Black
