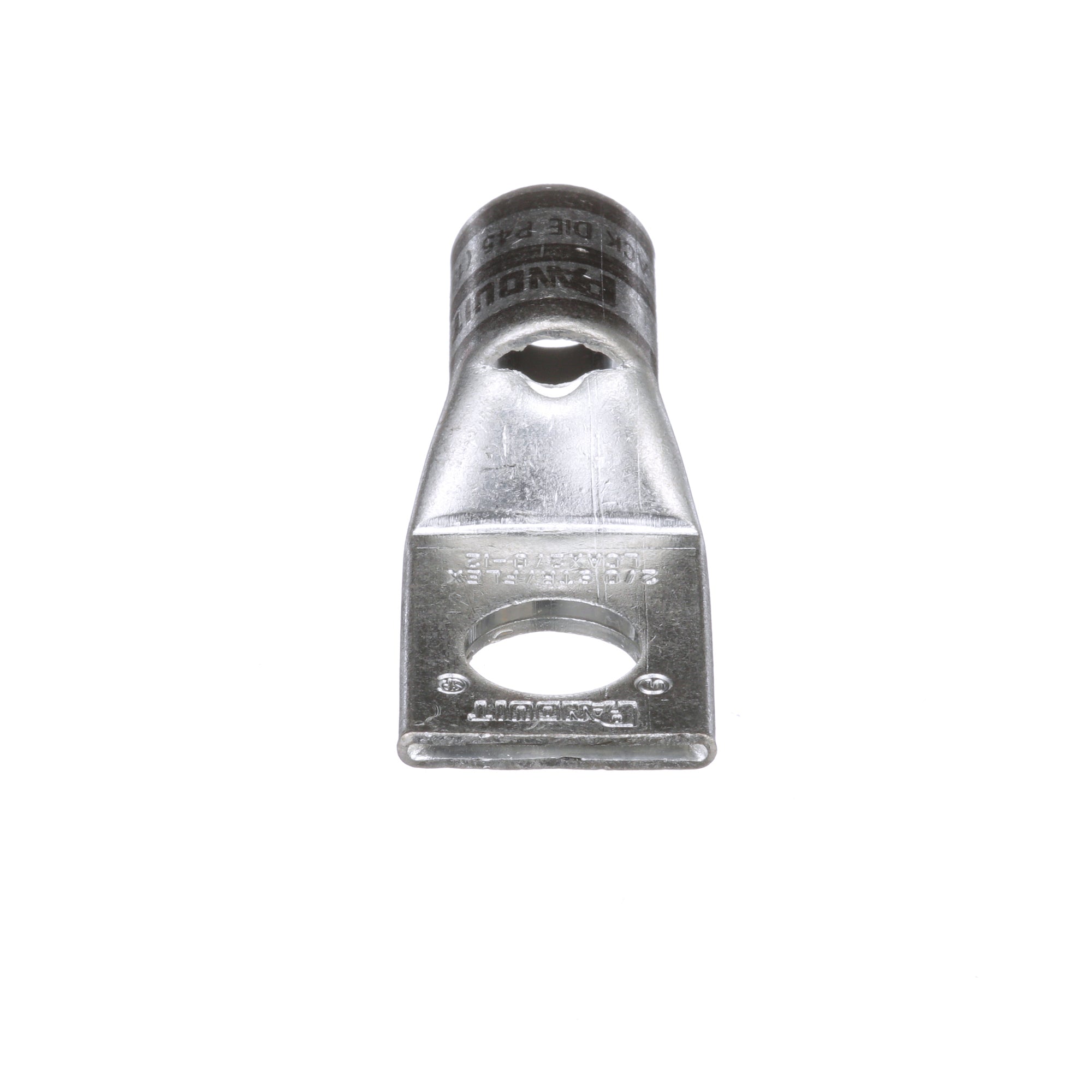

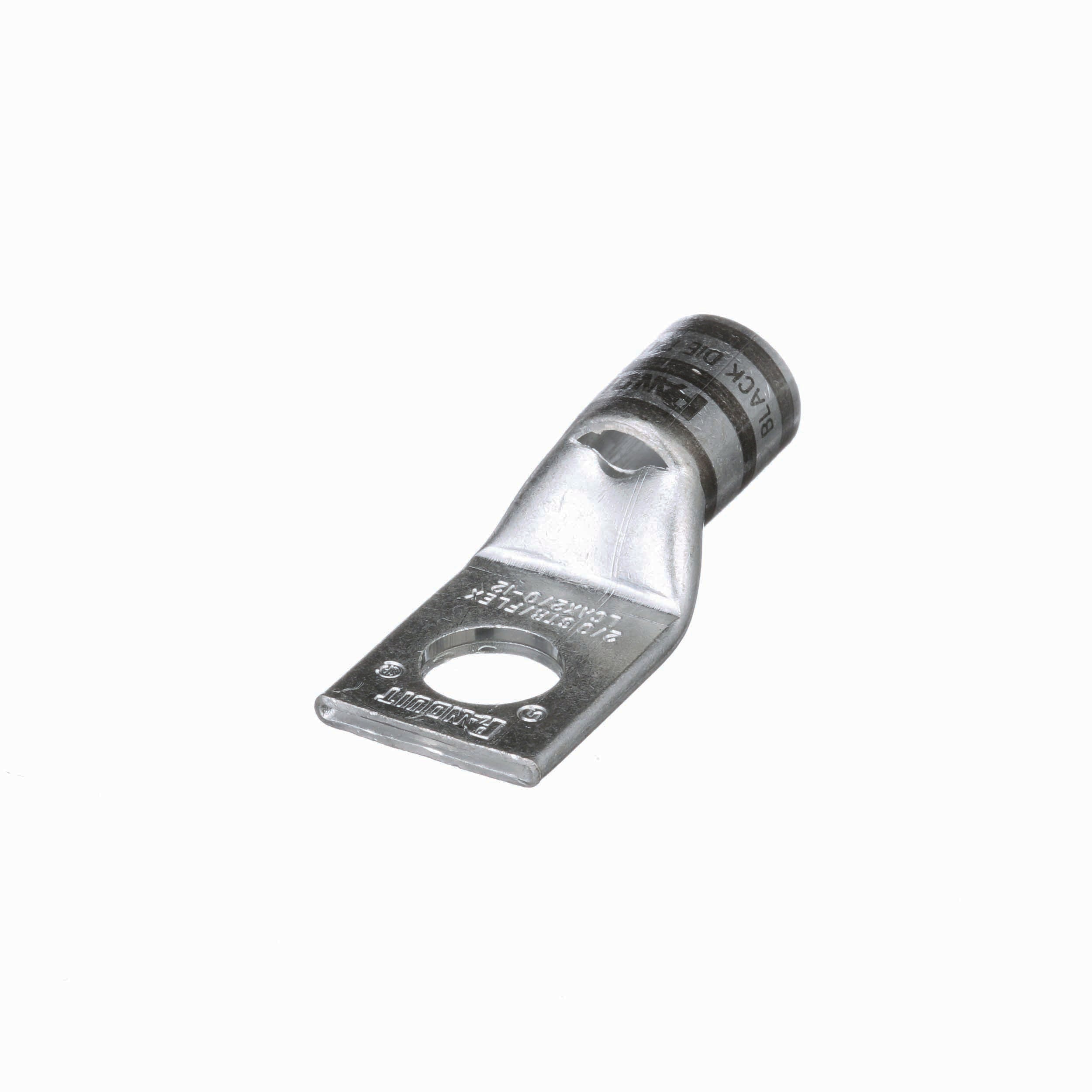

Panduit LCAX2/0-12-X Copper Compression Lug 1-Hole Flex 2/0 AWG

Product Description

Panduit LCAX2/0-12-X is a tin-plated copper compression lug. This one-hole lug features a standard barrel design. The lug is marked with color-coded barrels for suitable crimp die selection. An inspection window allows for visual verification of conductor insertion. The tin-plate finish protects against corrosion. It meets UL Listing and CSA certification for use at thirty-five kilovolts and is rated for a temperature of ninety degrees Celsius.

• One-hole design with standard barrel for easy installation.
• Color coding for crimp die accuracy and easy identification.
• UL and CSA compliant for reliable electrical connections.

Product Highlights

This compression lug is ideal for connecting electrical conductors, particularly in heavy-duty applications like diesel locomotives and other flexible conductor types.

Product Information

Standard Information

• Material: Tin-Plated Copper
• Type: Compression Lug

Technical Specifications

• Gauge: 2/0 AWG
• Holes: 1 Hole
• Inspection Hole: Yes
• Stud Size: 1/2 Inch
• Max Temperature Rating: 90 Degrees Celsius
• Voltage Rating: 35 kV
• Barrel Design: Standard
• Color: Black
