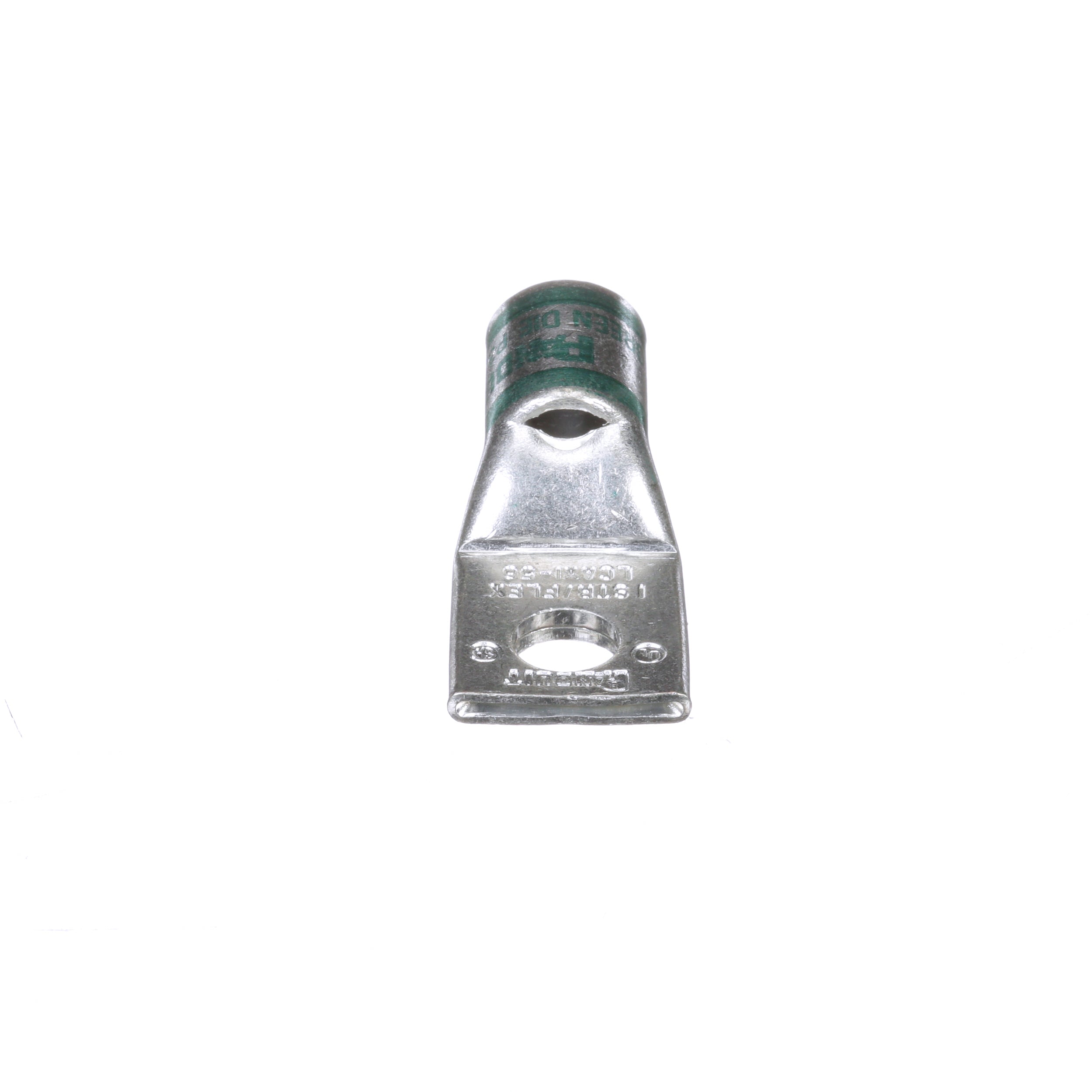

Panduit LCAX1-56-X Conn Term Rect Tong 1 AWG #5/16

Product Description

The Panduit LCAX1-56-X is a terminal connector with a rectangular tongue designed for 1 AWG wires and a 5/16 stud size. These Pan-Lug Compression Connectors provide reliable terminations for power and grounding applications. They meet NEBS Level 3 requirements, ensuring performance in demanding equipment applications.

• Color-coded bands for proper die selection and crimp placement
• Made from high conductivity copper tubing and electro tin plated to inhibit corrosion
• Inspection window to assure complete conductor insertion

Product Highlights

Suitable for use with flexible, extra flexible, and code stranded copper conductors. Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCAX1-56-X
• Country of Origin: MEX

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Lugs
• Mounting Type: Free Hanging (In-Line)
• Manufacturer: Panduit Corp
• Termination: Crimp, Barrel
• Series: Pan-Lug
• Wire Gauge: 1 AWG
• Packaging: Bulk
• Insulation: Non-Insulated
• Part Status: Active
• Color: Green
• Terminal Type: Rectangular Tongue
• Contact Finish: Electro-Tin
• Stud/Tab Size: 5/16 Stud
• Contact Material: Copper
• Terminal Style: Single Stud Hole
• Diameter - Barrel ID: 0.390" (9.91mm)
• Tab Thickness: 0.120" (3.05mm)
• Diameter - Barrel OD: 0.520" (13.21mm)
• Length - Overall: 1.720" (43.69mm)
• Diameter - Ring ID: 0.340" (8.64mm)
• Width - Outer Edges: 0.760" (19.30mm)
• Base Product Number: LCAX
• ARRA Compliant: Y
• Barrel Type: Standard Barrel Length with Inspection Window
• Brand: Panduit
• Buy American Compliant: Y
• Catalog Number: LCAX1-56-X
• Country of Origin: MEX
• EU RoHS Indicator: Y
• Number Of Holes: 1
• Size: #1 AWG Class B, C, G, H, I, K, M and DLO in
• Standard: C22.2 No. 65-13, 486A-486B File #E52164
• Standards: UL File No. E52164, CSA C22.2 No. 65-03, American Bureau Approved, NEBS Level 3, RoHS Compliant
• Voltage Rating: 35000 V
• Material: Tin-Plated Copper
