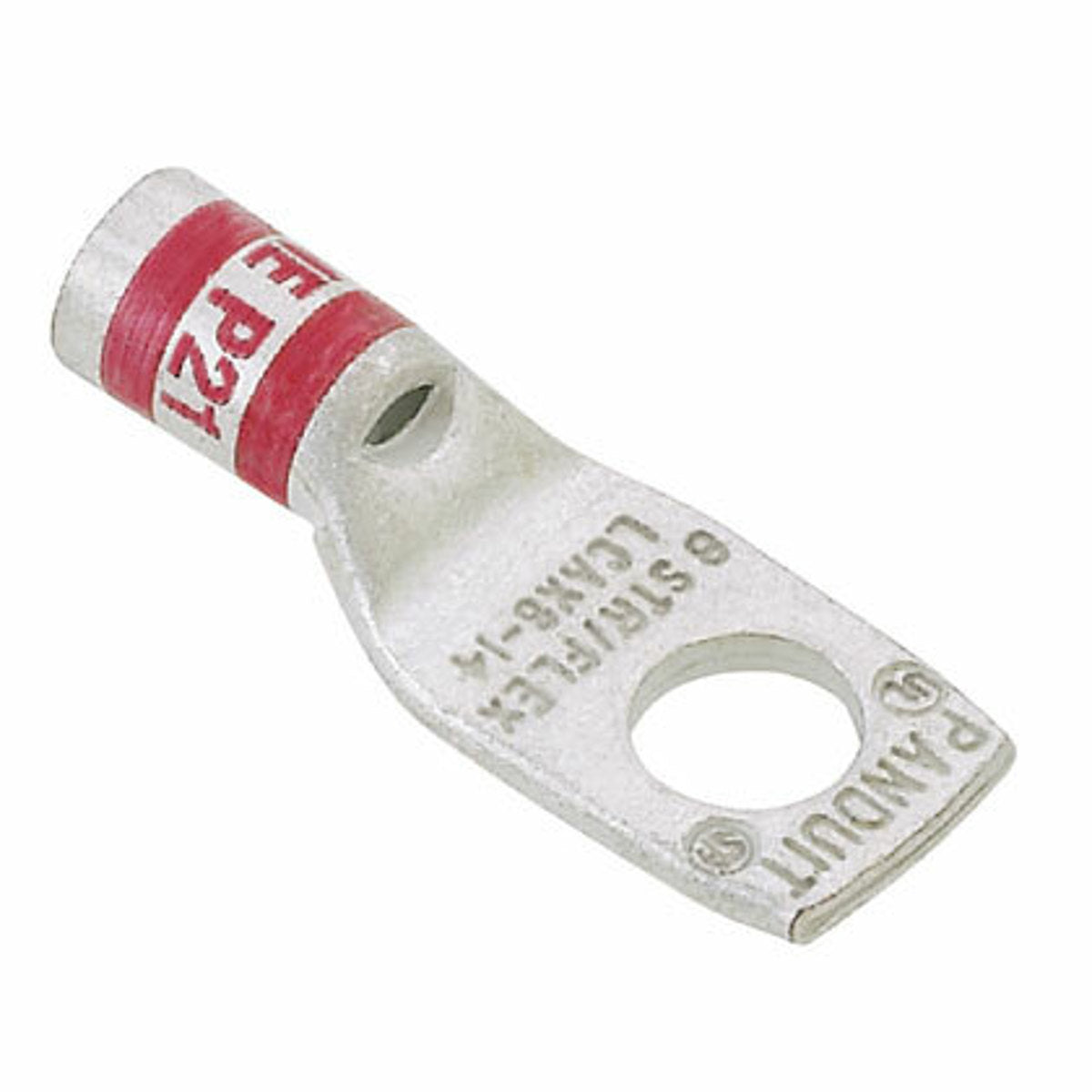

Panduit LCAX1-38-X Pan-Lug Comp. Lug, Tin Plt Copper, Strt, One 0.37 inches Stud

Product Description

The PANDUIT LCAX1-38-X is a Pan-Lug™ tin-plated copper compression connector with one hole. This flex lug is compatible with #1 AWG wire and a 3/8 IN stud hole. It is UL listed and CSA certified. Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.

• One-hole, flex lug
• Accommodates #1 AWG wire
• Features a 3/8 stud hole

Product Highlights

The PANDUIT LCAX1-38-X compression lug is ideal for electrical connections requiring secure and reliable terminations.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCAX1-38-X
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: LCAX1-38-X
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Lug
• Country of Origin: Mexico
• Made in USA: No
• Material: Tin-Plated Copper
• Number of Holes: 1
• Special Features: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
• Standard: UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13
• UPC: 074983435159
• GTIN: 00074983435159
• Item Type: Compression Lug
• Size: #1 AWG Class B, C, G, H, I, K, M and DLO
• Stud Size: 3/8 IN
• IGCC: 4532
• Type: Compression Lug
• Angle: Straight
• Mounting: Free Hanging (In-Line)
• Barrel Type: Standard Barrel Length with Inspection Window
• Category: Connectors, Interconnects
• Terminals: Lugs
• Termination: Crimp, Barrel
• Series: Pan-Lug
• Wire Gauge: 1 AWG
• Packaging: Bulk
• Insulation: Non-Insulated
• Part Status: Active
• Terminal Type: Rectangular Tongue
• Contact Finish: Electro-Tin
• Contact Material: Copper
• Terminal Style: Single Stud Hole
• Diameter - Barrel ID: 0.390" (9.91mm)
• Tab Thickness: 0.120" (3.05mm)
• Diameter - Barrel OD: 0.520" (13.21mm)
• Length - Overall: 1.800" (45.72mm)
• Diameter - Ring ID: 0.410" (10.41mm)
• Width - Outer Edges: 0.760" (19.30mm)
• Base Product Number: LCAX
• Volts AC: 600
• Allowable Gauge Range: 1
