Product Description

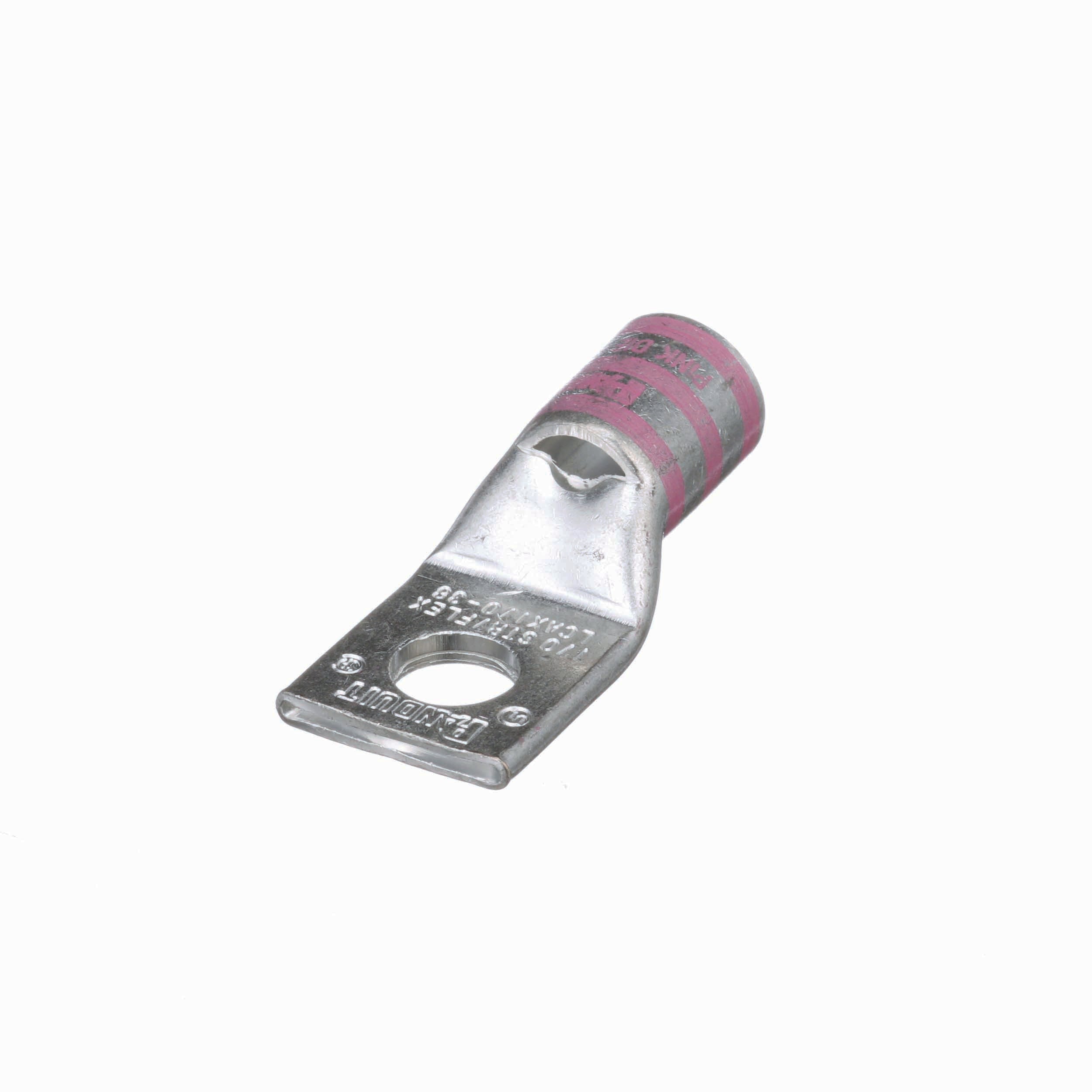

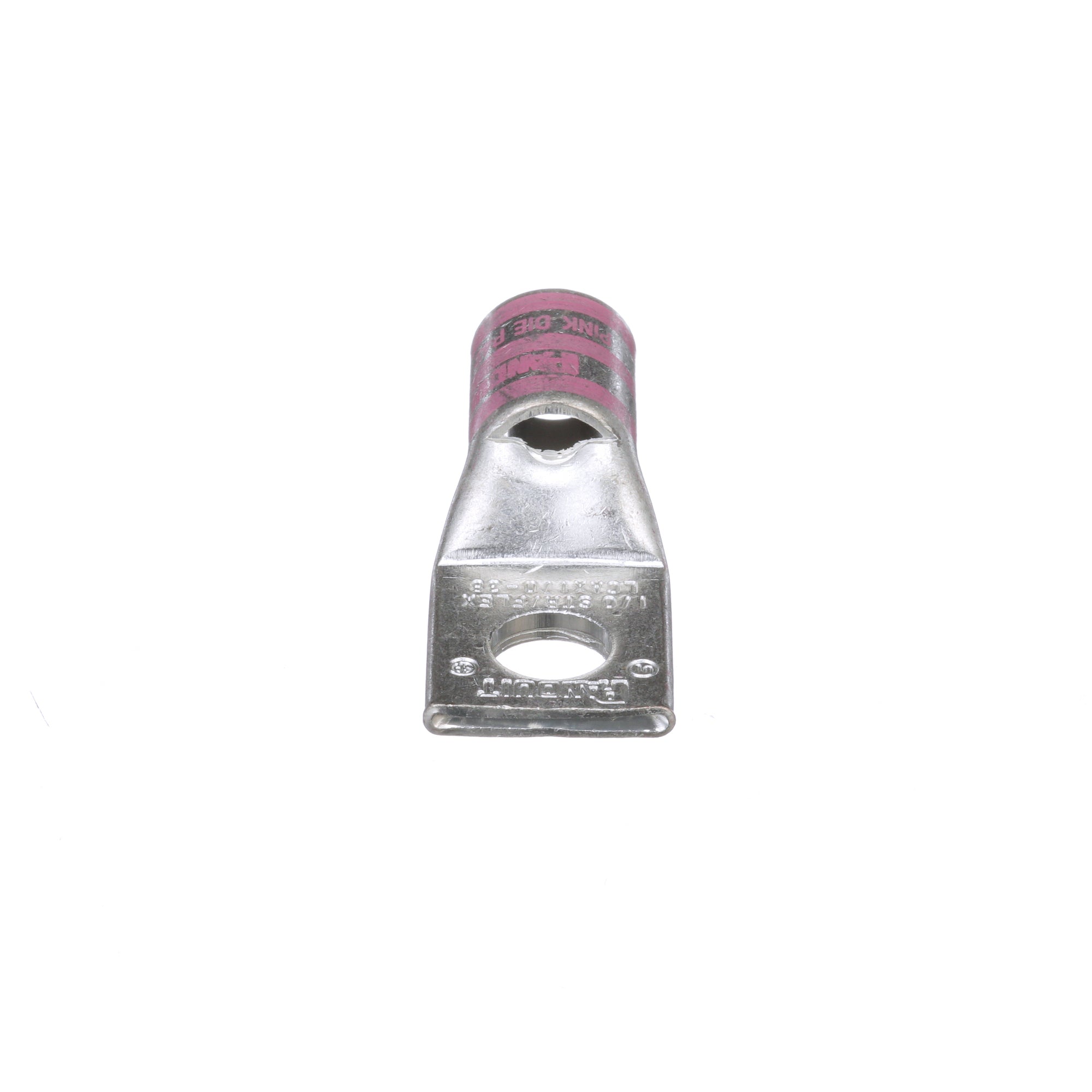

The Panduit LCAX1/0-38-X is a copper compression lug designed for reliable electrical connections. This one-hole lug features color-coded barrels that help with proper crimp die selection. The beveled wire entry allows for easy insertion of conductors, minimizing the risk of damage. An inspection window is included for verifying complete conductor insertion. The tin plating offers excellent corrosion resistance ensuring longevity in various conditions.
- UL Listed and CSA Certified for safety.
- Compatible with multiple conductor classes like B, C, G, H, I, K, M, and DLO.
- Voltage rating of thirty-five thousand volts.
Product Highlights
This product is essential for electricians needing a dependable and efficient solution for power connection. Ideal for use in electrical systems where long-term performance is required.
Product Information
Standard Information
-
Manufacturer: Panduit
-
Part Number: LCAX1/0-38-X
Technical Specifications
-
Material: Copper
-
Color: Pink
-
Stud Size: 3/8 in
-
Overall Length: 1.89 in
-
Voltage Rating: 35kV
-
Diameter of Barrel: 0.45 in ID x 0.58 in OD
-
Number of Holes: 1
-
Inspection Window: Yes
