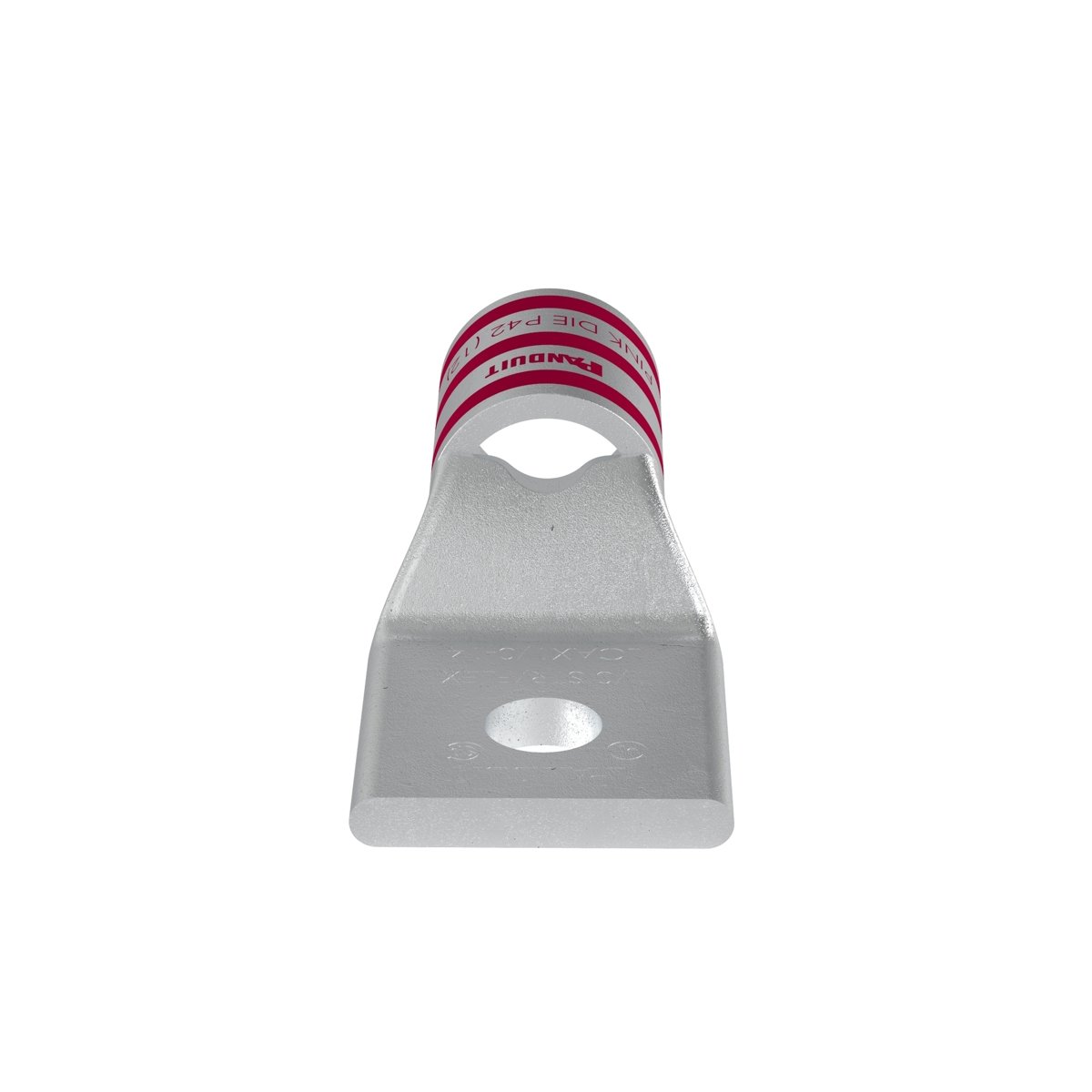

Panduit LCAX1/0-14-X Copper Compression Lug 1/0 AWG with Inspection Window

Product Description

The Panduit LCAX1/0-14-X is a copper compression lug designed for one-hole applications. This lug features color-coded barrels for easy crimp die selection and has an inspection window to ensure full conductor insertion. The tin-plated copper material provides resistance to corrosion, making it suitable for various electrical installations.

• UL Listed and CSA Certified for reliable safety
• Temperature rated at ninety degrees Celsius
• Suitable for use with flexible copper conductors

Product Highlights

This compression lug is ideal for connecting copper conductors in electrical wiring systems. Its design allows for efficient installation with minimized risk of damage to wire strands.

Product Information

Standard Information

• Manufacturer: Panduit
• MPN: LCAX1/0-14-X

Technical Specifications

• Type: Copper Compression Lug
• Material: Tin-Plated Copper
• Conductor Size: 1/0 AWG
• Stud Size: 1/4 inch
• Overall Length: 1.82 inches
• Barrel Size: 0.45 inch ID x 0.58 inch OD x 0.72 inch long
• Voltage Rating: 35 kV
• Standards: UL File No. 486A and 486B, CSA C22.2 No. 65-13
