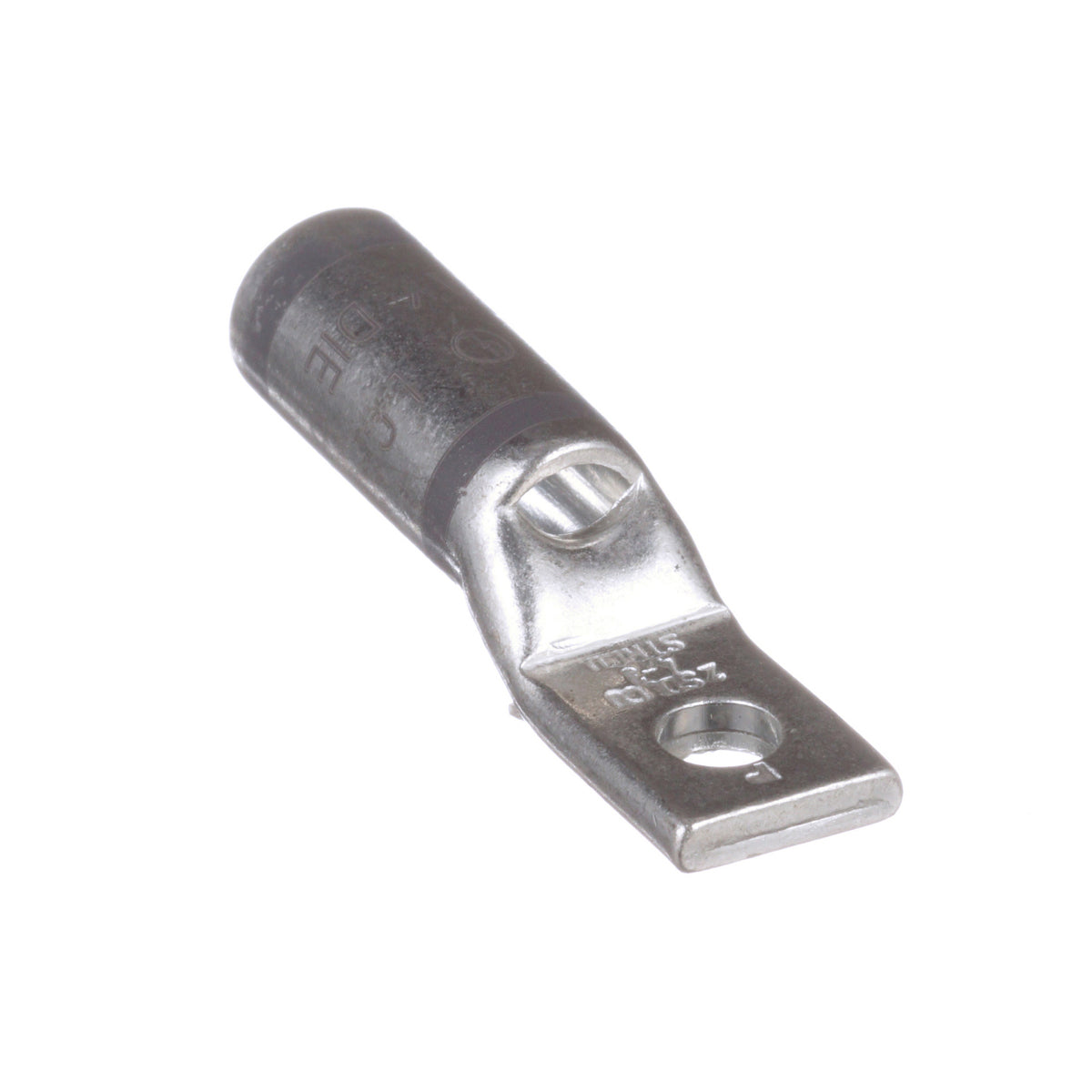

Panduit LCAN4-10-L Pan-Lug Copper Compression Connectors - Lugs

Product Description

Panduit LCAN4-10-L is a copper compression connector featuring a one-hole design suitable for various wire sizes. This product is compatible with stranded copper conductors from four to three AWG and two AWG solid wire. The product is designed with a narrow barrel for tight spaces and includes an inspection window to confirm proper wire insertion.

• Compatible with #4 to #3 AWG STR and #2 AWG SOL wire.
• Constructed from tin-plated copper for corrosion resistance.
• Features a 0.19-inch stud size for secure mounting.

Product Highlights

This connector is ideal for electrical connections requiring a reliable and secure interface. Its design optimizes for space-limited applications and helps ensure effective performance with various copper conducting wires.

Product Information

Standard Information

• Manufacturer: Panduit
• Catalog Number: LCAN4-10-L

Technical Specifications

• Color: Gray
• Material: Tin-Plated Copper
• Number of Holes: 1
• Standard Package Quantity: 6
• Temperature Rating: 90 deg C
• Voltage Rating: 35 kV
• Overall Length: 1.54 inches
• Stud Size: 0.19 inches
