Panduit LCAN1/0-56-X Lug, Cu, 1/0 Awg, Narrow, 5/16 Stud

Product Description

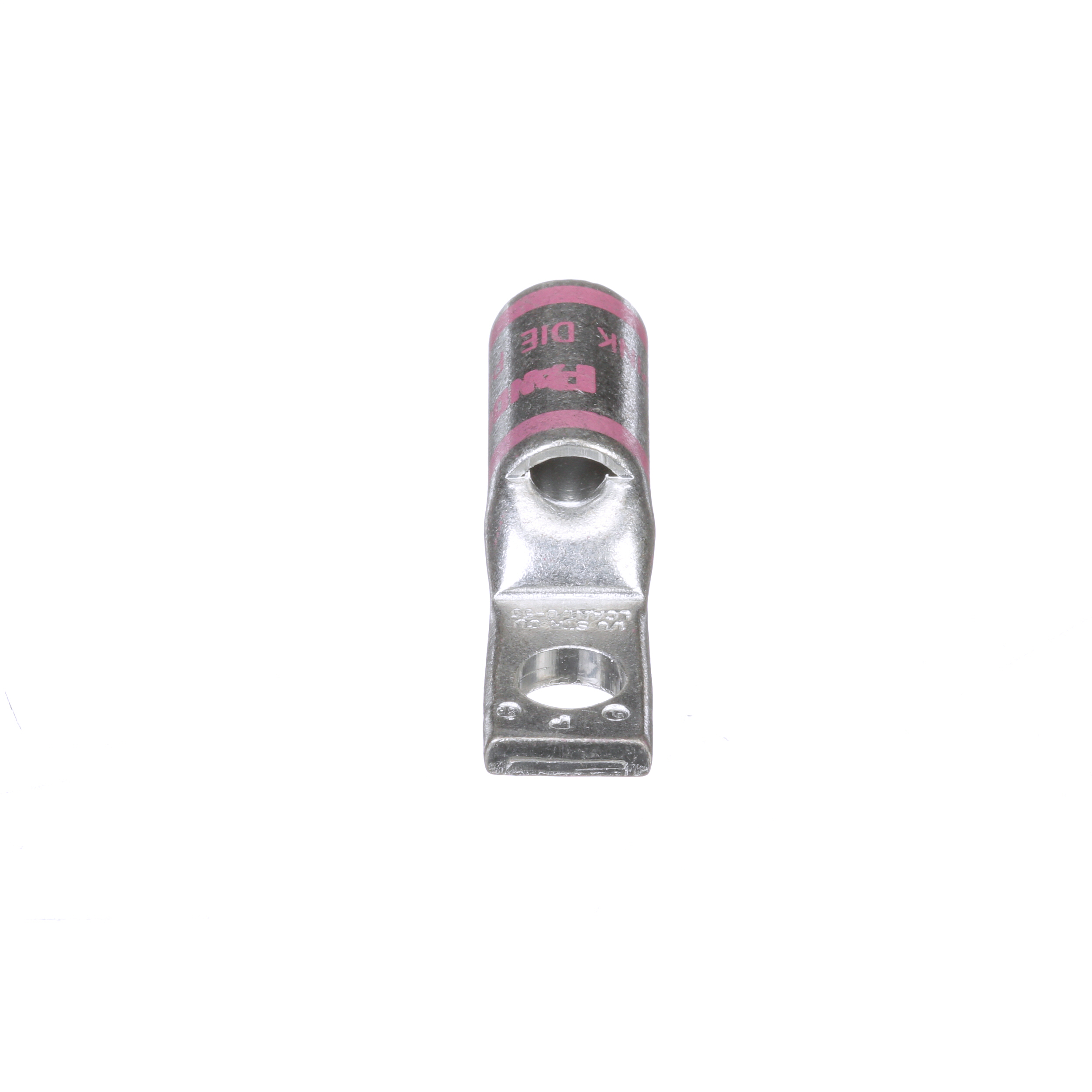

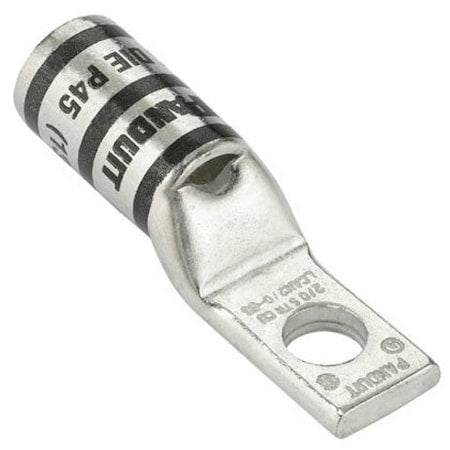

The PANDUIT LCAN1/0-56-X is a one-hole, standard barrel with window, narrow tongue lug designed for 1/0 AWG wire and a 5/16 stud hole. Constructed from tin-plated copper, this compression connector ensures a secure and reliable electrical connection. It features a straight tongue angle and is suitable for various applications requiring robust and efficient wiring components.

• Designed for 1/0 AWG wire and 5/16 stud hole
• Standard barrel with window for easy inspection
• Constructed from tin-plated copper

Product Highlights

This lug features a narrow tongue and is RoHS compliant. It is UL listed and CSA certified to 35KV and temperature rated to +90°C when crimped.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCAN1/0-56-X
• Country of Origin: Mexico

Technical Specifications

• Item: Lug Compression Connector
• Width: 0.52"
• Length: 2.02"
• Material: Tin-Plated Copper
• Cable Size: 1/0 AWG
• Color Code: Pink
• Connector Type: Standard Barrel
• Connection Type: 1 x Terminal
• Connection Material: Tin
• Product Category: Crimp Terminals, Housings, Splices, & Lugs
• Manufacturer: Panduit
• Manufacturer Part Number: Panduit LCAN1/0-56-X
• Barrel Type: Standard Barrel Length with Inspection Window
• Product: Compression Lugs
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Tongue Type: Narrow
• Tongue Angle: Straight
• Stud Hole Size: 5/16"
