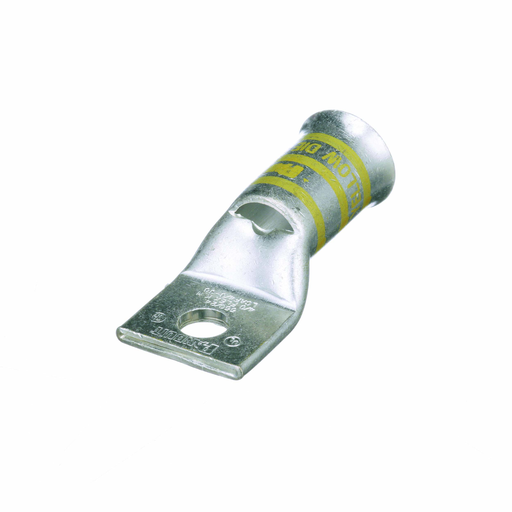

Panduit LCAF4/0-38-X CuLug 1H 4/0AWG Flared 3/8StudPKG10

Product Description

The Panduit LCAF4/0-38-X is a compression connector designed for 4/0 AWG wire with a flared barrel and a 3/8-inch stud hole. It ensures reliable electrical connections in various applications. This connector meets industry standards, providing versatile use in electrical installations.

• Can be used with flex conductor class K, M, and Diesel Locomotive.
• Inspection window ensures complete conductor insertion.
• Tin-plated to reduce corrosion.

Product Highlights

This connector is UL Listed and CSA Certified, suitable for applications requiring high reliability and performance.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCAF4/0-38-X

Technical Specifications

• Barrel Size: 0.63 inches ID x 0.91 inches OD x 1.35 inches long
• Color: Yellow
• Conductor Size: 4/0 AWG
• Conductor Type: Flexible Copper
• Stud Size: 3/8 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 35 kV
• Inspection Window: Yes
• Mounting Hole Size: 14-3/8 inches
• Standards/Approvals: UL 486A/486B, CSA C22.2
