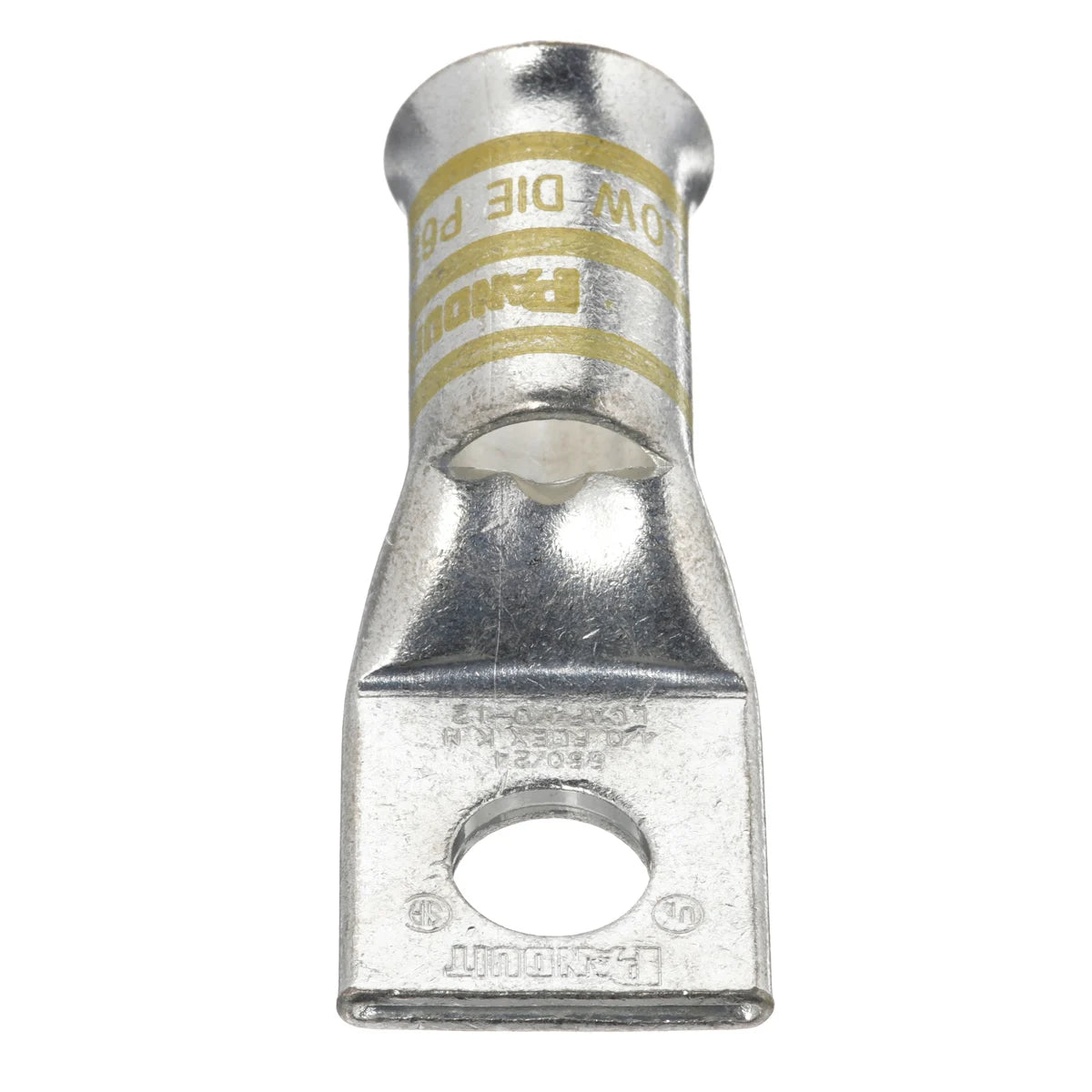

PANDUIT LCAF4/0-12-X CABLE TERMINALS
PANDUIT LCAF4/0-12-X CABLE TERMINALS

Panduit LCAF4/0-12-X Pan-Lug Compression Lug 35kV 4/0 AWG

Brand: PANDUIT
SKU: LCAF4/0-12-X
Availability: In Stock

Ships same day if ordered by 12 pm
$1,198.75
$1,198.75
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Panduit LCAF4/0-12-X is a compression lug designed for flexible copper conductors with an AWG gauge of four zero. This lug features a one-hole design and is ideal for reliable connections in electrical applications. The product is UL listed and CSA certified for a voltage rating of thirty-five kilovolts and a temperature rating of ninety degrees Celsius.

  • One-hole standard barrel with inspection window for full conductor insertion.
  • Tin-plated copper material helps to prevent corrosion.
  • Color-coded barrels for correct crimp die selection.

Product Highlights

This compression lug assists in maintaining secure connections, ensuring compliance with industry standards.

Product Information

Standard Information

  • Brand: Panduit
  • Manufacturer Part Number: LCAF4/0-12-X
Technical Specifications
Catalog Number
LCAF4/0-12-X
Material
Tin-Plated Copper
Number of Holes
1
Stud Size
1/2 IN
Voltage Rating
35kV
Size
4/0 AWG Class K and M
Color
Yellow
Country of Origin
Mexico
