Panduit LCAF1/0-56-X CuLug 1/0AWG Flared 5/16StudPKG10

Product Description

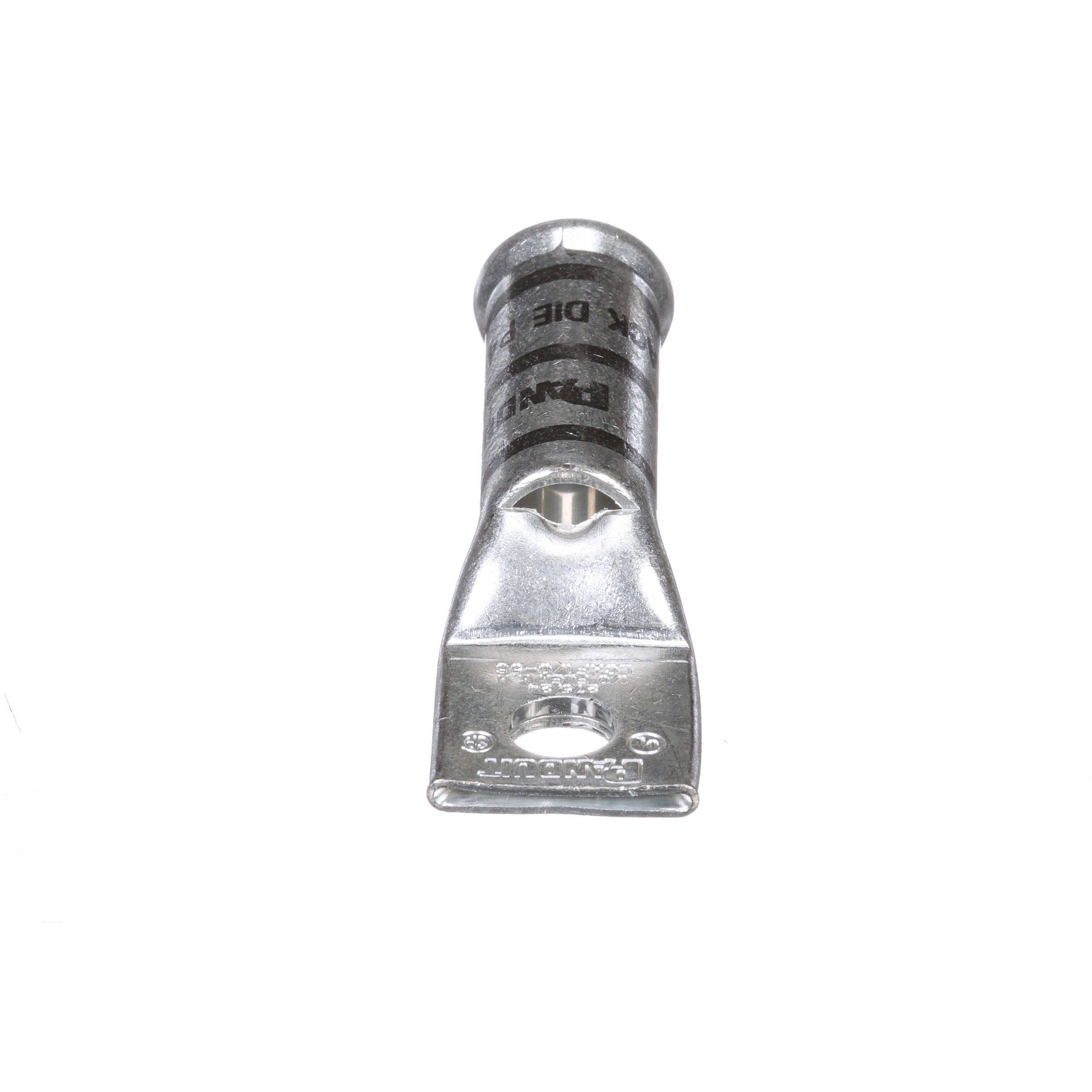

Panduit LCAF1/0-56-X is a compression connector designed for 1/0 AWG flexible copper conductors. It features a one-hole design with a flared barrel and a 5/16 inch stud hole, making it suitable for various applications in electrical wiring. This lug is tin-plated to prevent corrosion and is certified for use in high voltage settings.

• Flared entry prevents bent back strands during insertion.
• UL Listed and CSA Certified for voltage up to 35 kV.
• Inspection window to ensure complete conductor insertion.

Product Highlights

This connector is ideal for connecting flexible conductors in various electrical systems. Its robust design supports proper crimping and enhances connection reliability.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCAF1/0-56-X

Technical Specifications

• Barrel Size: 0.45 inches ID x 0.67 inches OD x 1.35 inches length
• Stud Size: 5/16 inches
• Conductor Size: 1/0 AWG
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 35 kV
• Material: Tin-Plated Copper
• Inspection Hole: Yes
• Standards: UL 486A/486B, CSA C22.2
