Panduit LCAF1/0-38-X CuLug 1/0AWG Flared 3/8 Stud

Product Description

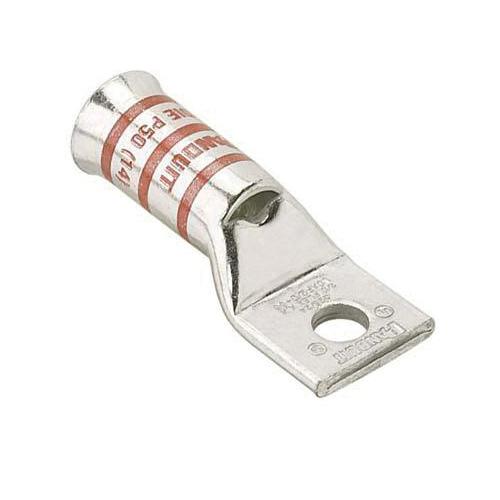

Panduit LCAF1/0-38-X is a compression connector lug designed for use with 1/0 AWG flexible copper conductors. It features a flared entry and a 3/8 inch stud hole. This connector ensures a secure connection in a range of power and grounding applications.

• Flared entry prevents back strands from bending during insertion.
• Color-coded for easy die selection.
• Tin-plated to resist corrosion.

Product Highlights

Ideal for electrical applications requiring reliable terminations, the Panduit LCAF1/0-38-X is constructed to meet NEBS Level 3 standards.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCAF1/0-38-X

Technical Specifications

• Barrel Size: 0.45 inches ID x 0.67 inches OD x 1.35 inches length
• Type: 1-Hole Compression Lug
• Conductor Size: 1/0 AWG
• Material: Tin-Plated Copper
• Stud Size: 3/8 inch
• Voltage Rating: 35 kV
• Temperature Rating: 90 degrees Celsius
• Mounting Hole Size: 14-3/8 inches
• Die Code: P45
