Product Description

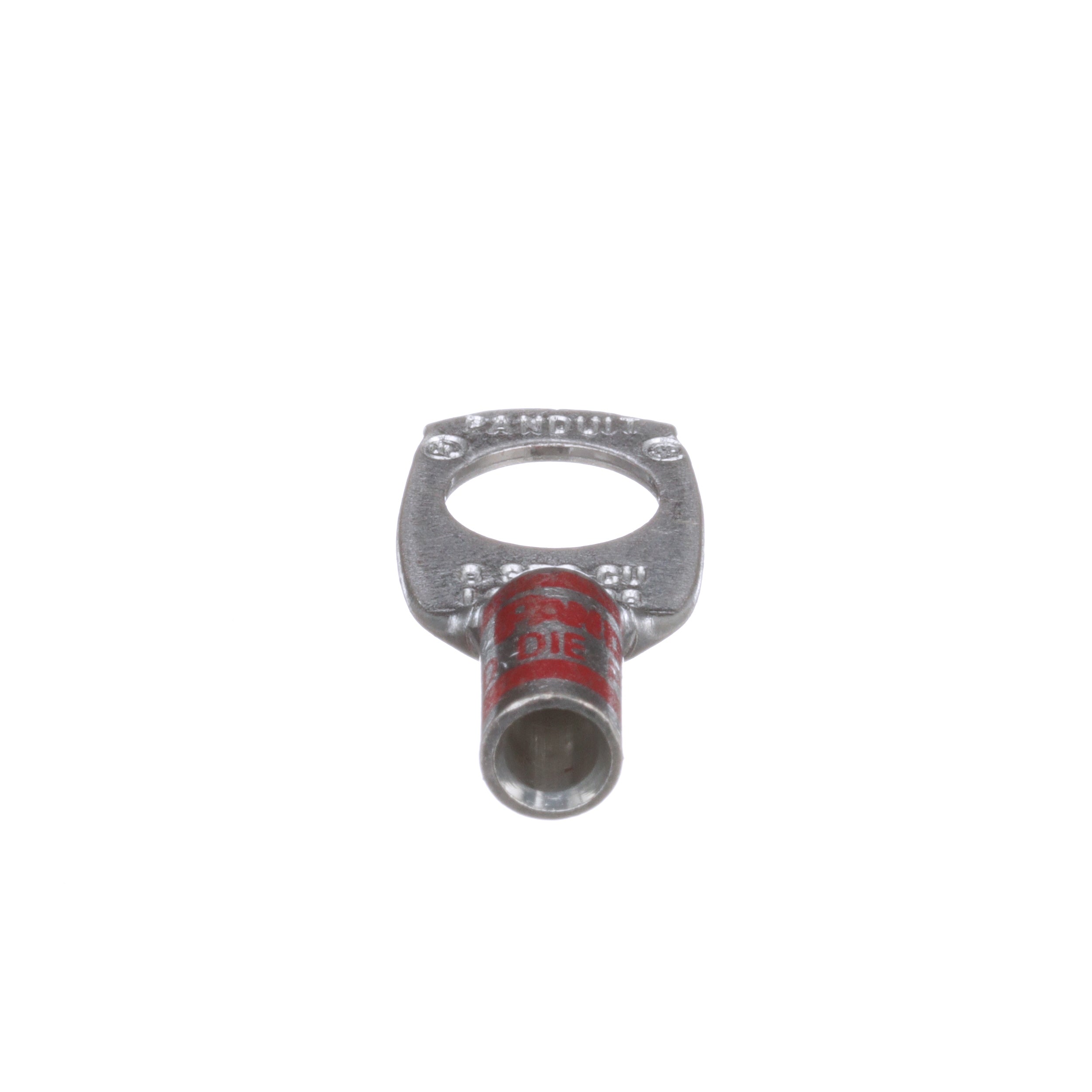

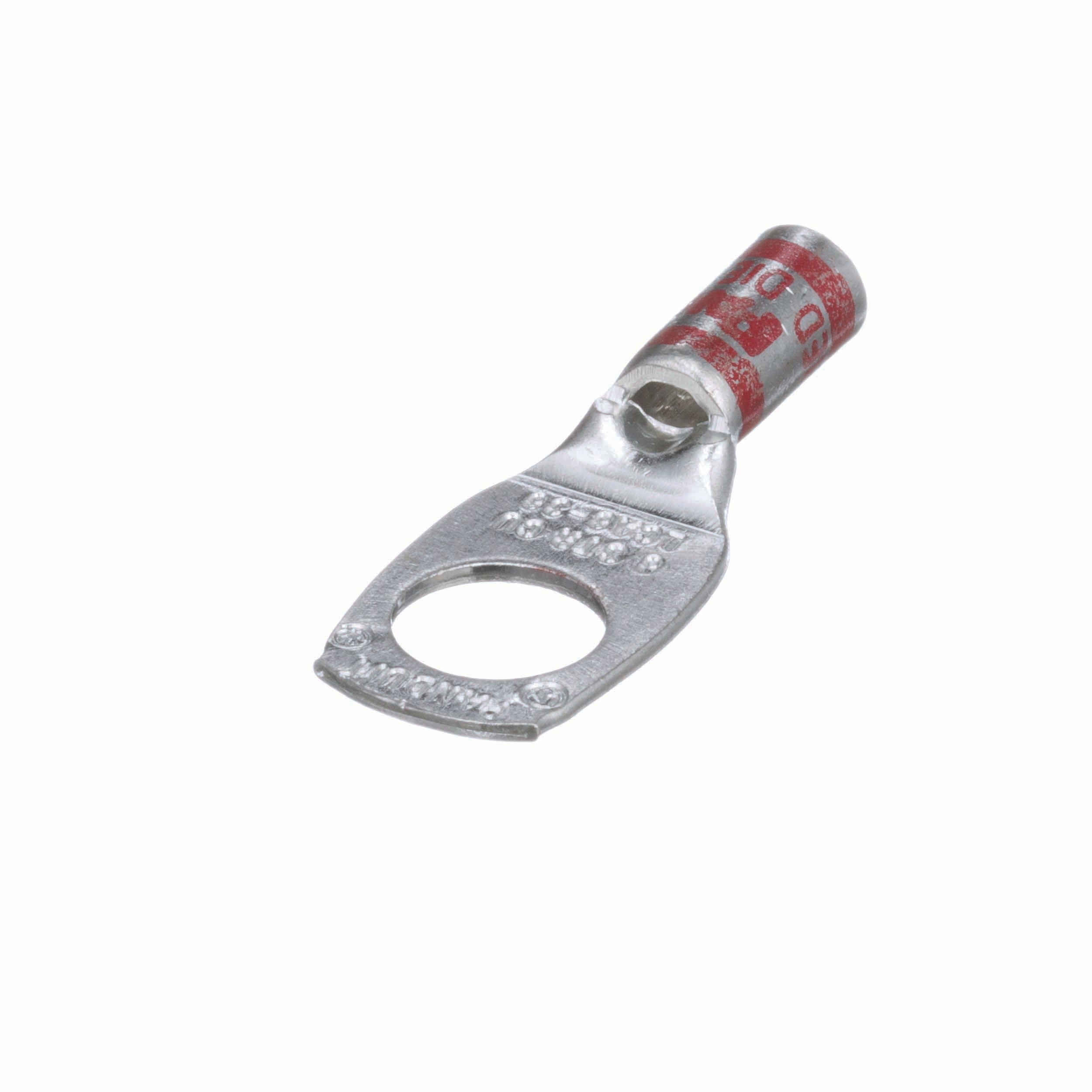

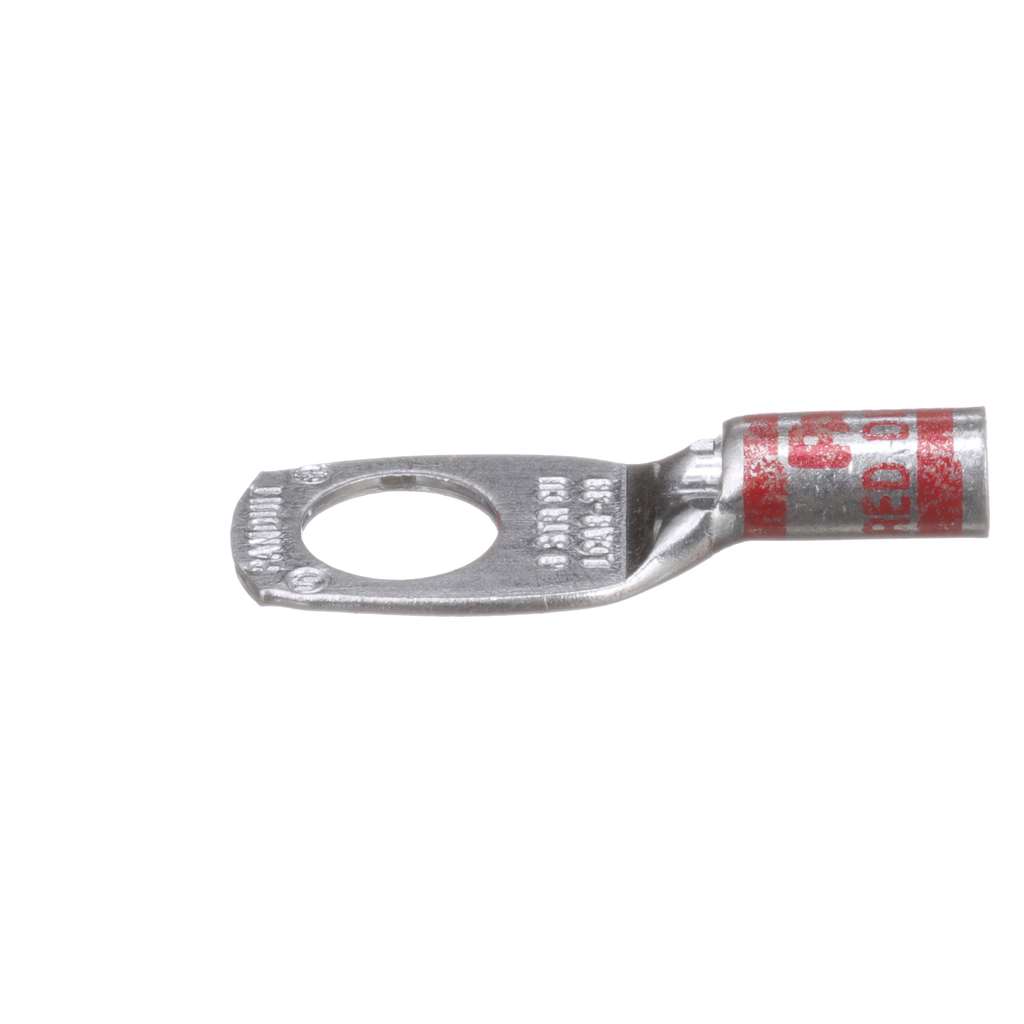

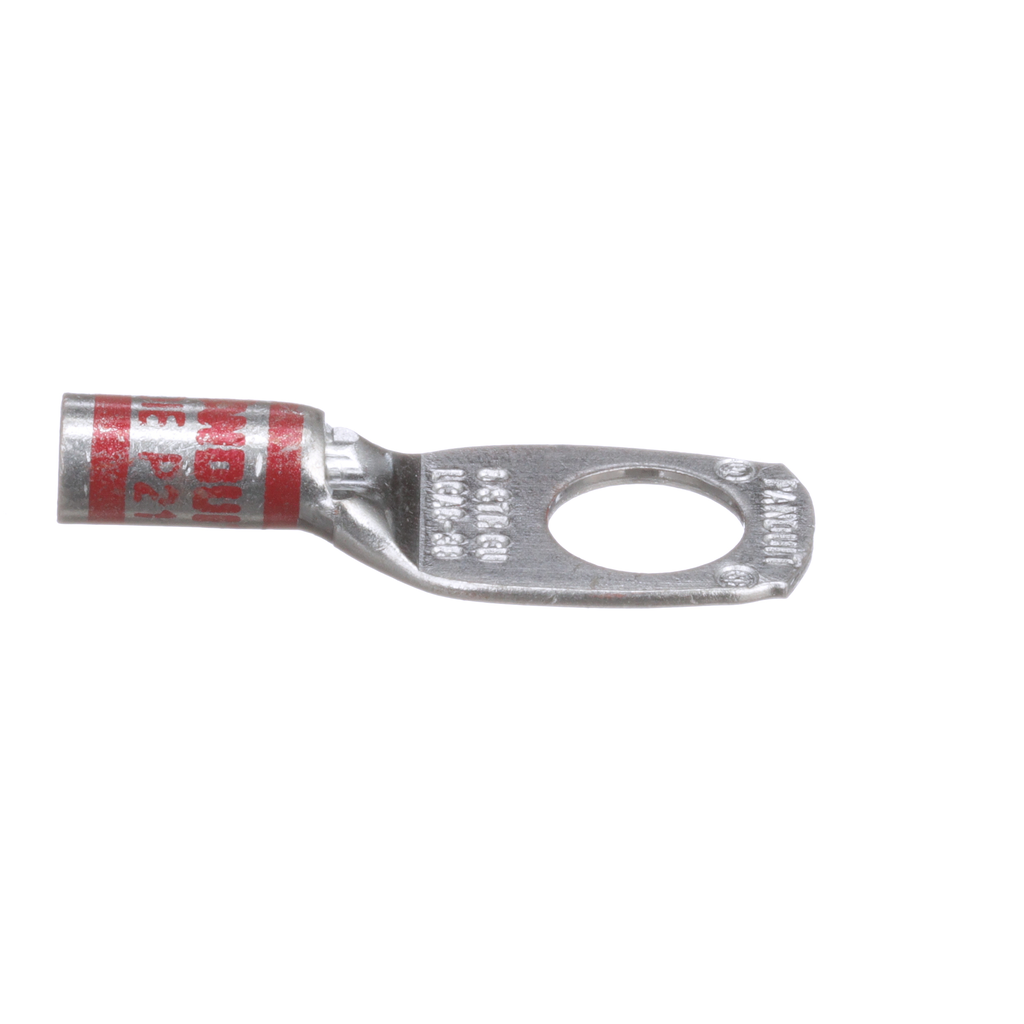

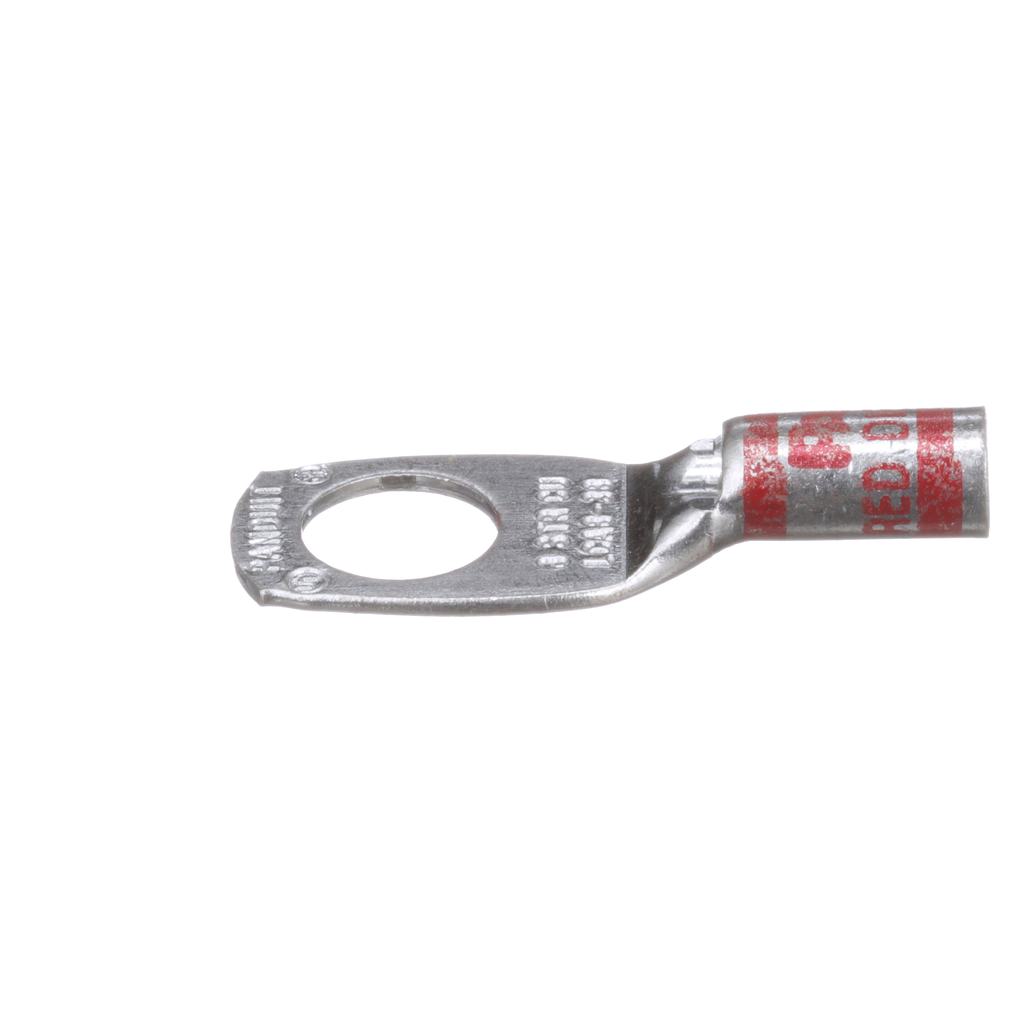

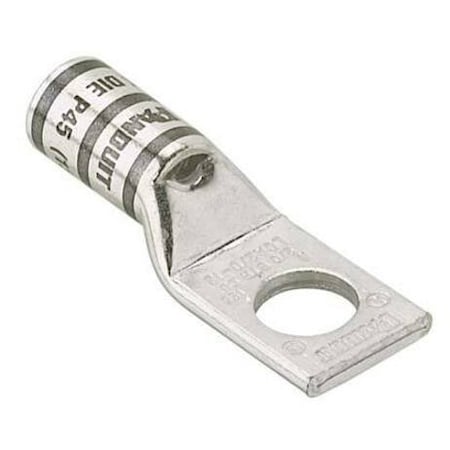

The PANDUIT LCA8-38-L is a lug compression connector designed for use with stranded copper conductors. It features a color-coded barrel marked with Panduit and specified competitor die index numbers for proper crimp die selection. The tin-plate material helps to inhibit corrosion.
- Straight tongue angle
- An inspection window aids to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
Product Highlights
The LCA8-38-L is suitable for applications requiring reliable connections and corrosion resistance.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: LCA8-38-L
-
Country of Origin: Mexico
Technical Specifications
-
Barrel Size: 0.18 in ID x 0.27 in OD x 0.56 in L
-
Conductor Size: 8 AWG
-
Conductor Type: Stranded Copper
-
Die Code: P21
-
Material: Tin Plated Copper
-
Mounting Hole Size: 5/8 in
-
Overall Length: 1.56 in
-
Series: LCA
-
Stud Size: 3/8 in
-
Temperature Rating: 90 deg C
-
Tongue Size: 0.6 in W x 0.5 in THK
-
Tongue Type: Standard
-
Type: 1-Hole
-
Voltage Rating: 35 kV
-
Wire Gauge: 8 AWG
-
Insulation: Non-Insulated
-
Contact Finish: Electro-Tin
-
Contact Material: Copper
-
Terminal Type: Lug, Grounding
-
Terminal Style: Single Stud Hole
-
Diameter - Barrel ID: 0.180" (4.57mm)
-
Tab Thickness: 0.050" (1.27mm)
-
Diameter - Barrel OD: 0.270" (6.86mm)
-
Length - Overall: 1.560" (39.62mm)
-
Diameter - Ring ID: 0.410" (10.41mm)
-
Width - Outer Edges: 0.600" (15.24mm)
-
Base Product Number: LCA8
-
Product Range: LCA Series
-
Wire Size AWG Max: 8AWG
-
Stud Size - Metric: M10
-
Stud Size - Imperial: 3/8"
-
Brand: Pan-Lug
-
Finish: Tin-Plated
-
Outer Diameter: 0.27 in.
-
Stud Hole Spacing: 3/8 in.
-
Lug Wire Size: 8 AWG
-
Color Family: Red
-
Length: 1.56 in.
-
Angle: Straight
-
Barrel Length: 0.56 in
-
Barrel Type: Standard
-
Number of Holes: 1 Hole
-
Tongue Thickness: 0.05 in
-
Tongue Width: 0.6 in
-
Voltage: 35000 Volt
-
Sub Brand: Pan-Lug
-
Color: Red
