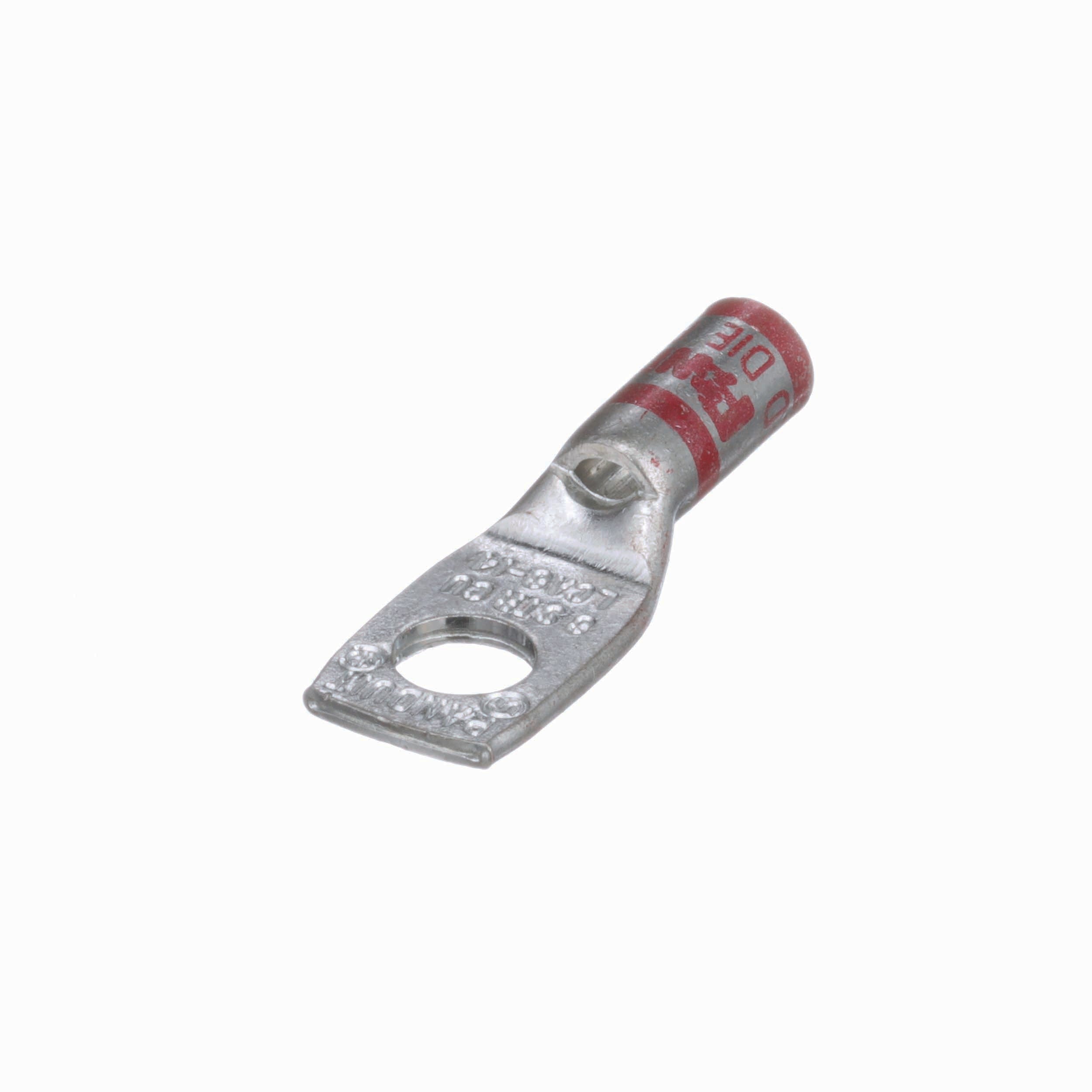

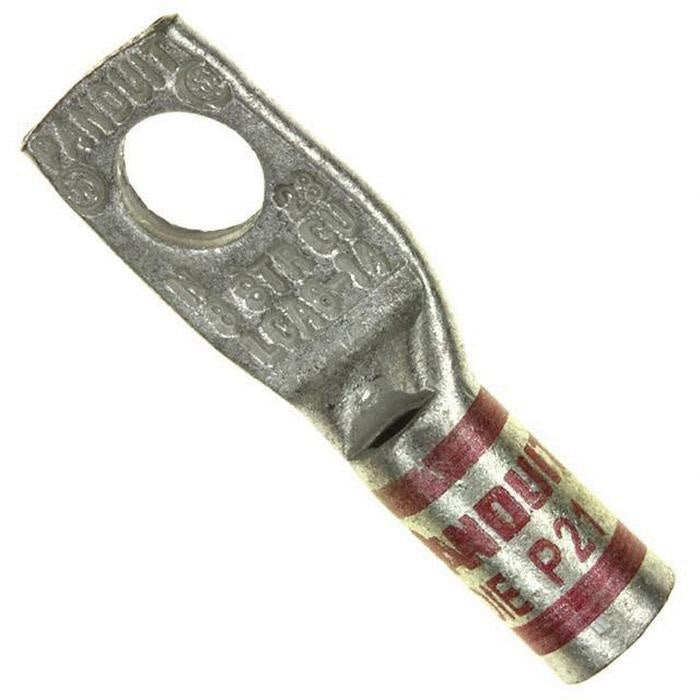

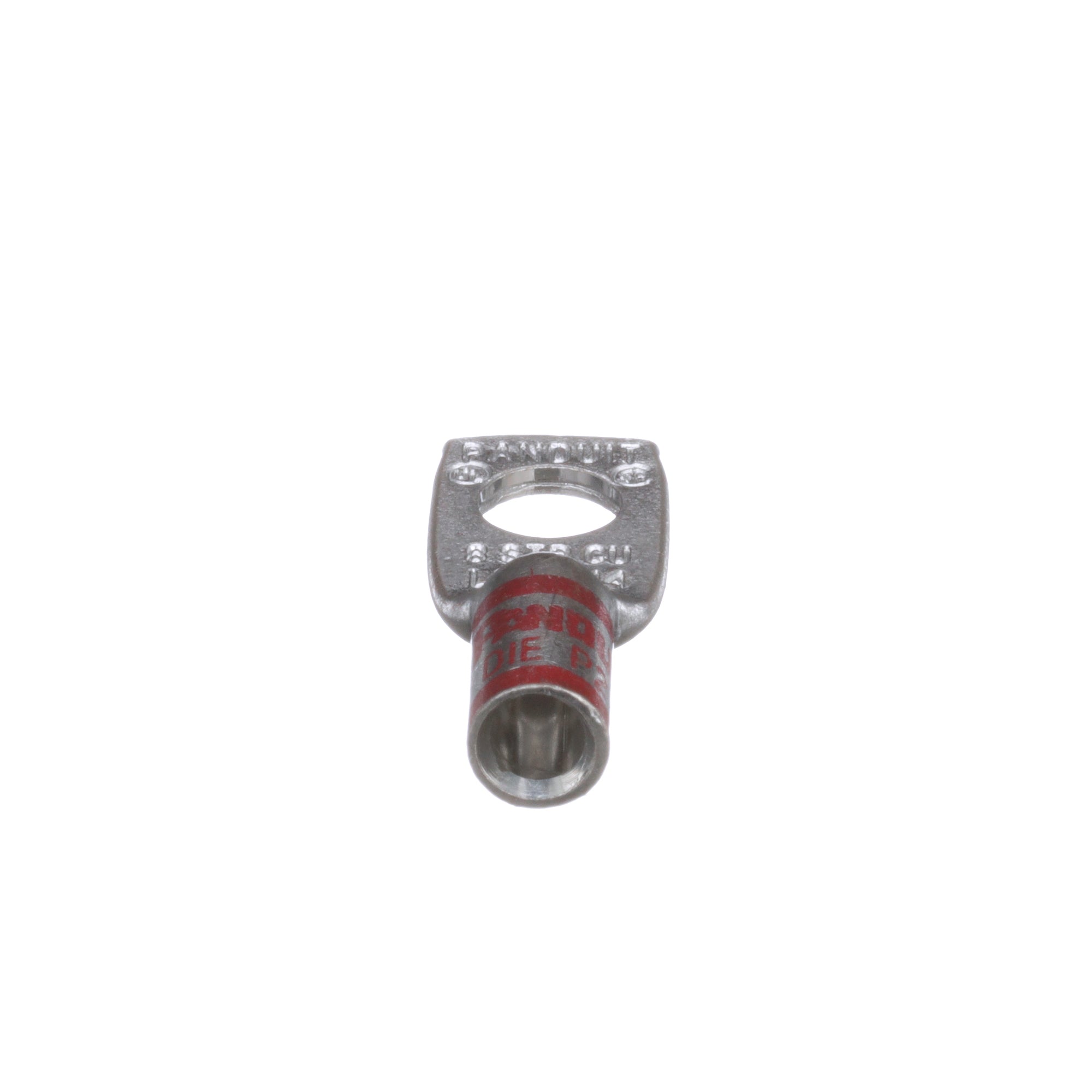

Panduit LCA8-14-L Copper Compression Lug 35 kV 1-Hole

Product Description

The Panduit LCA8-14-L is a copper compression lug designed for use with stranded copper conductors sized eight AWG. This product includes a one-hole standard barrel with a color-coded marking system that aligns with Panduit and competitor die index numbers to facilitate correct crimp die selection. The built-in inspection window allows visual verification for full conductor insertion, while the tin-plated material aids in corrosion resistance. This compression lug is suitable for high voltage applications up to thirty-five kilovolts and is certified by UL and CSA for safety and reliability.

• Includes an inspection window for full conductor insertion verification.
• Color-coded barrels for accurate crimp die selection.
• UL Listed and CSA Certified for high voltage applications.

Product Highlights

The Panduit LCA8-14-L features a reliable design suitable for various electrical applications, and it ensures compliance with industry standards for safety and performance.

Product Information

Standard Information

• Manufacturer: Panduit
• MPN: LCA8-14-L

Technical Specifications

• Material: Copper
• Type: 1-Hole Compression
• Stud Size: 1/4 inch
• Inspection Hole: Yes
• Voltage Rating: 35 kV
• Temperature Rating: 90 °C
• Barrel Size: 0.18 inch ID x 0.27 inch OD x 0.56 inch Length
• Overall Length: 1.34 inches
