Panduit LCA6-56-L Copper Compression Lug 35 KV 1 Hole Compression Lug

Product Description

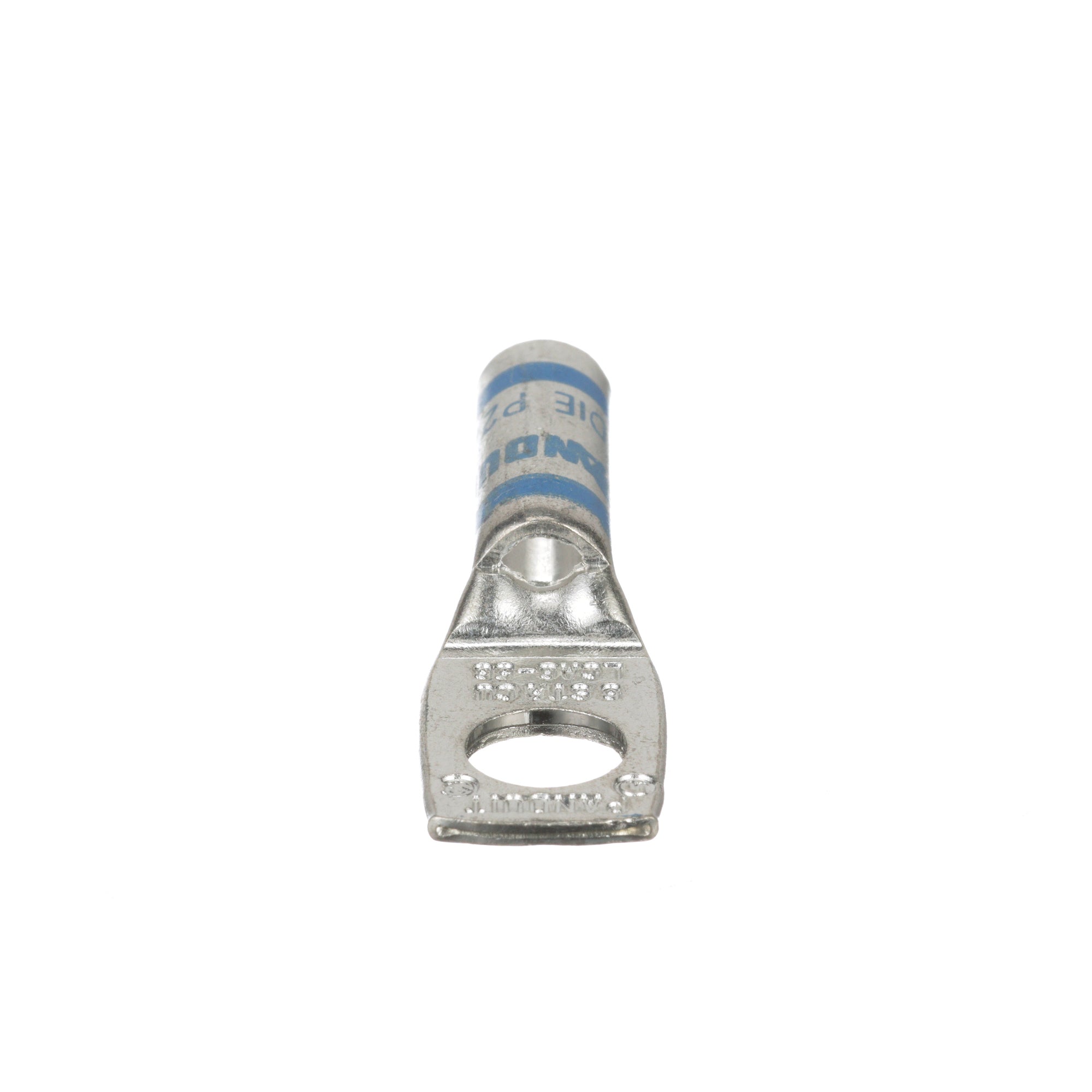

The Panduit LCA6-56-L is a copper compression lug with a standard barrel design. It features an inspection window to ensure proper conductor insertion. The lug is suitable for use with six AWG stranded copper wire and is rated for up to thirty-five kilovolts. The tin plating helps inhibit corrosion and increases the longevity of the connection.

• Standard barrel design with one hole
• Inspection window for easy verification of conductor insertion
• Tin-plated copper for reduced corrosion

Product Highlights

This compression lug is UL Listed and CSA Certified. It is compliant with industry standards and suitable for high voltage applications.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCA6-56-L

Technical Specifications

• Material: Tin-Plated Copper
• Conductor Size: 6 AWG
• Voltage Rating: 35 kV
• Stud Size: 5/16 inch
• Temperature Rating: 90 degrees Celsius
• Barrel Size: 0.22 inch ID x 0.31 inch OD x 0.81 inch Length
• Overall Length: 1.73 inches
• Standards/Approvals: UL listed to 486A-486B, CSA certified C22.2 No. 65-13
