Panduit LCA6-38-L Copper Compression Lug 6 AWG

Product Description

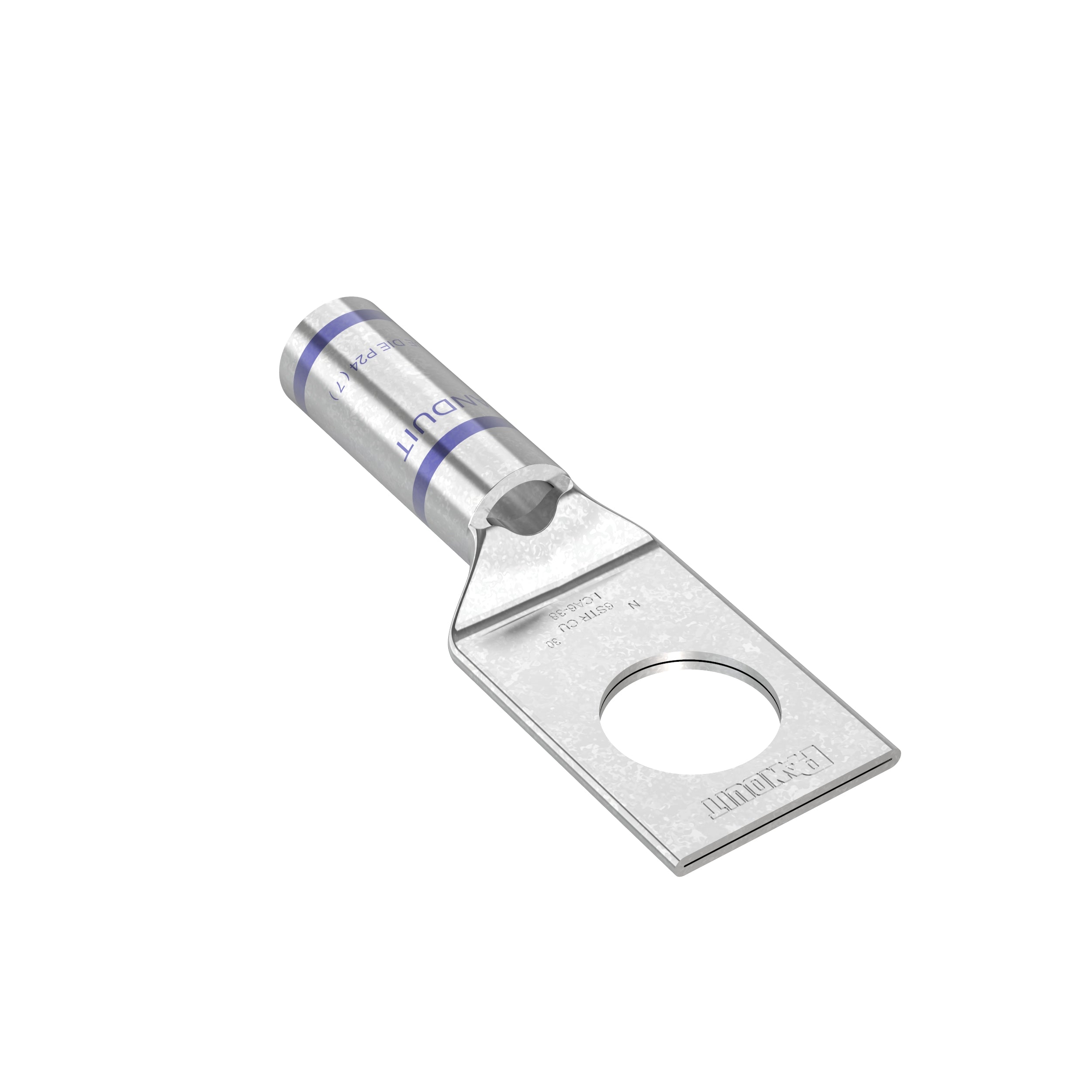

The Panduit LCA6-38-L is a copper compression lug designed for use with 6 AWG stranded copper wire. This one-hole, standard barrel lug features an inspection window that allows for visual confirmation of full conductor insertion. The tin-plated copper construction helps to inhibit corrosion, ensuring durability and reliability in various applications. It is UL listed and CSA certified, being suitable for high voltage applications up to 35 Kilo-Volts.

• Color-coded barrels for easy identification
• Inspection window for full conductor insertion assurance
• Tin-plating for corrosion resistance

Product Highlights

This lug is designed to work with specified competitor crimping tools and is marked with competitor die index numbers for proper die selection.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCA6-38-L

Technical Specifications

• Wire Gauge: 6 AWG
• Stud Hole Size: 3/8 inch
• Overall Length: 1.83 inches
• Temperature Rating: 90 °C
• Voltage Rating: 35 kV
• Material: Copper
• Barrel Diameter: 0.22 inch ID x 0.31 inch OD
• Tongue Size: 0.62 inch width x 0.06 inch thickness
